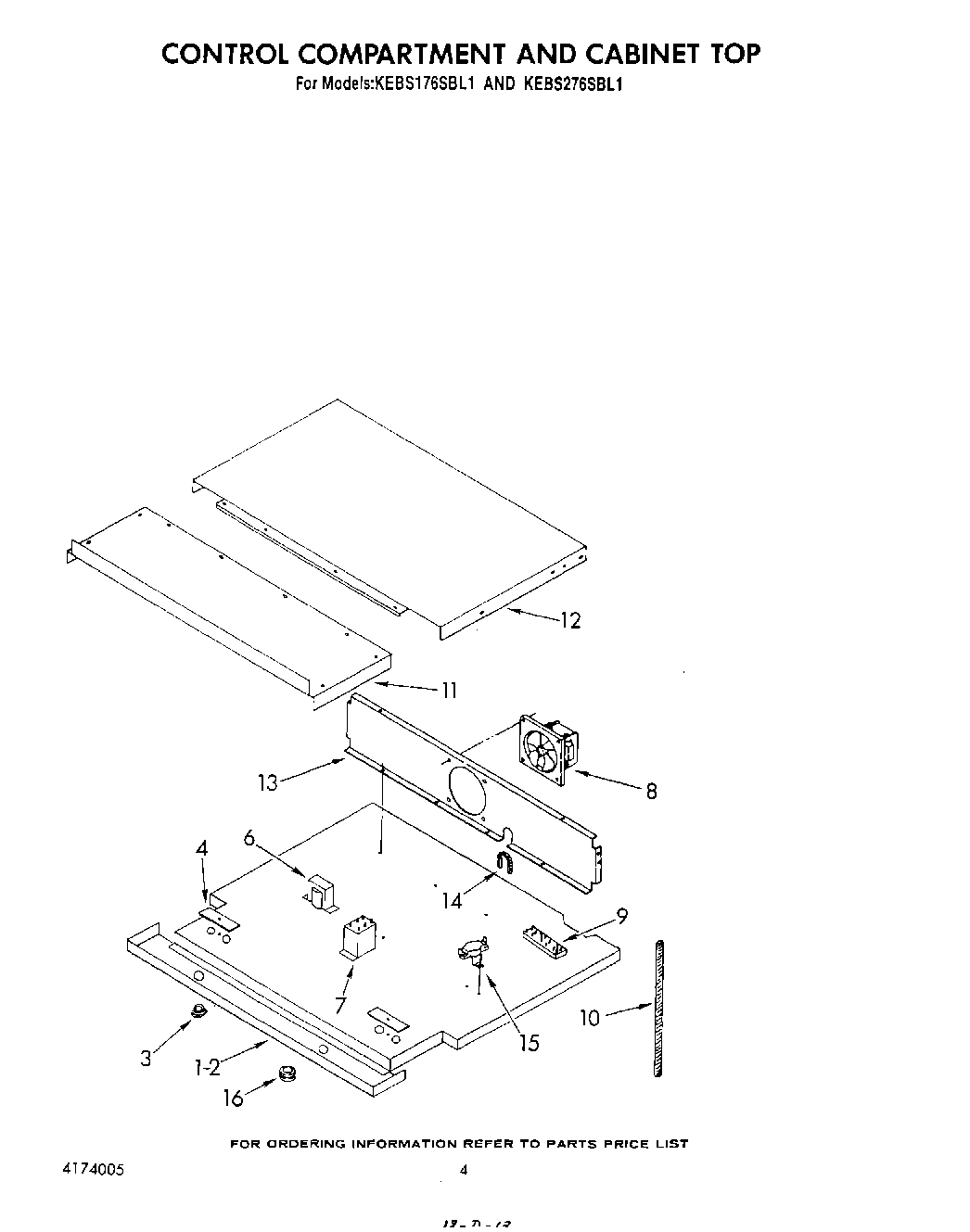

KEBS176SBL1 04 – CONTROL COMPARTMENT AND CABINET TOP

Written by

Products

Position	Product
1	Sandwich Panel (KEBS176SBL1)
2	Sandwich Panel
3	Bushing
4	Hole Cover
6	Transformer, Meat Probe Model KEBS145SBL1
7	Relay, Meat Probe
8	Blower
9	Terminal Block, Power Supply
10	Conduit, 1/2“ X 56“
11	Cabinet Top, Front
12	Cabinet Top, Rear
13	Blower Mounting Panel
15	Switch, Fan
16	Bushing, Flexible
