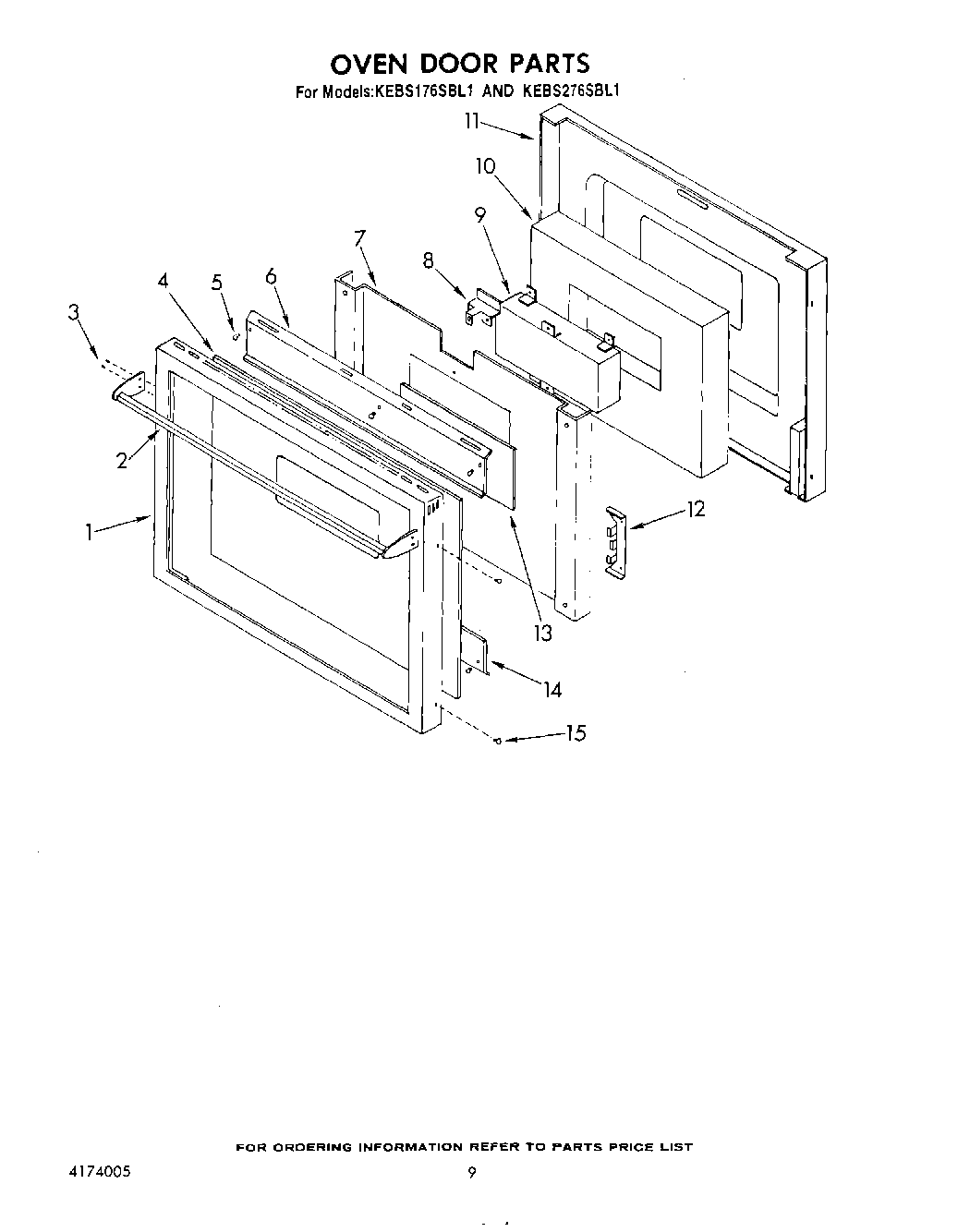

KEBS176SBL1 08 – OVEN DOOR

Products

Position	Product
1	Door Frame
2	Door Handle
3	Screw, 8-32 X 3/8“ PFHMS
4	Door Glass
5	Rubber Bumper
6	Air Baffle
7	Retainer, Insulation
8	Bracket, Lock
9	Window Package
10	Insulation
11	Door Liner
12	Bracket, Glass Mtg.
13	Glass, Reflective
14	Air Baffle, Bottom
15	Vent, Lower Trim (Screw (2))
