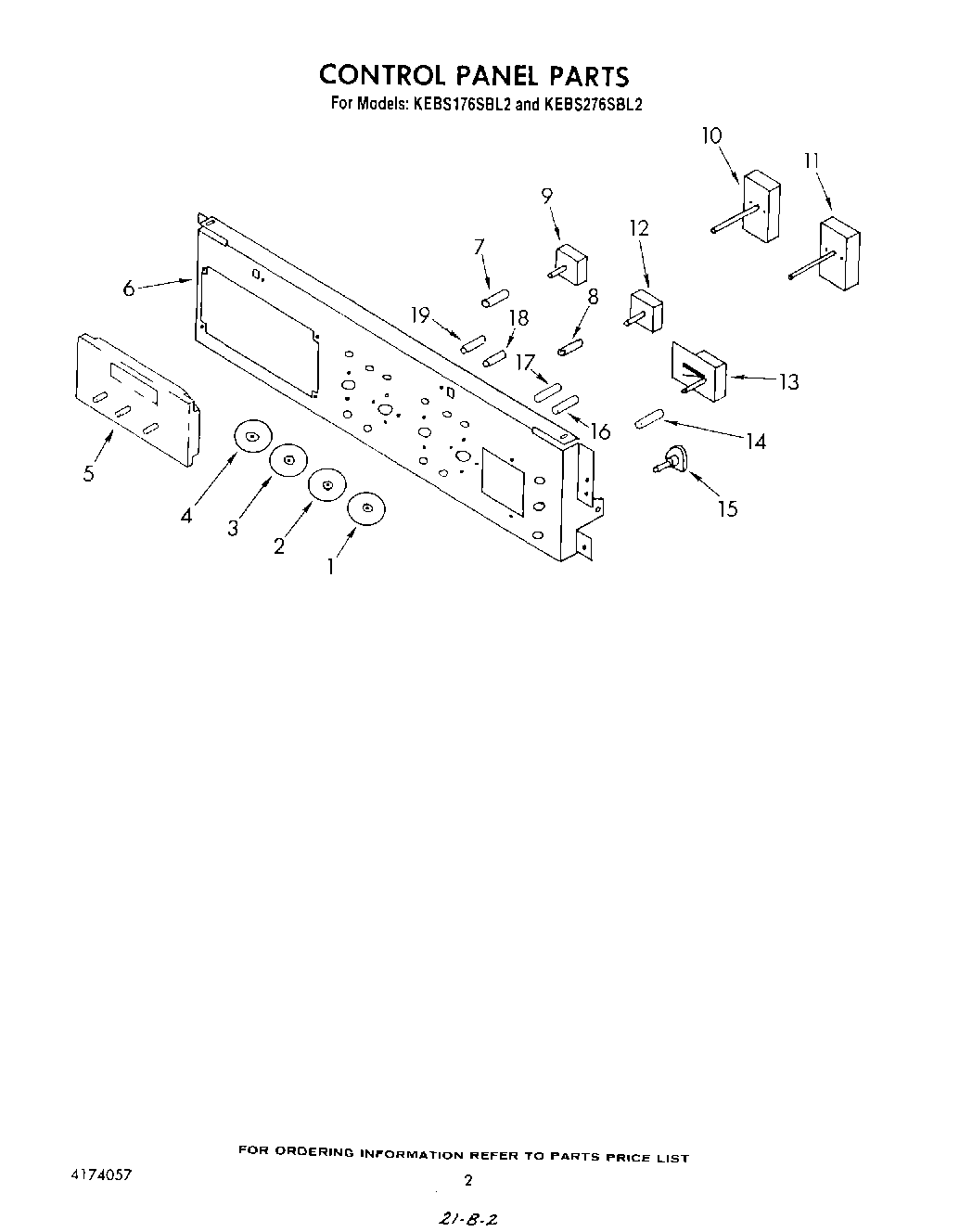

KEBS176SBL2 02 – CONTROL PANEL, LIT/OPTIONAL

KEBS176SBL2 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KEBS176SBL2 02 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
Use & Care Guide Model KEBS145SBL1
List, Repair Parts
Installation Instructions
2Selector Disc
3Thermostat Disc Lower Oven
4Selector Disc Single Oven (Model KEBS145SBL1)
5Clock
6Control Mounting Panel
9Switch, Selector
10Thermostat, Upper Oven
11Thermostat
12Switch, Selector
13Meat Probe Indicator (Model KEBS145SBL1)
15Oven Light Switch
19Harness, Wiring (High Temp) (KEBS276SBL2)
19Harness, Wiring (Upper Latch) (KEBS176SBL2 & KEBS276SBL2)
19Harness, Wiring (High Temp) (KEBS176SBL2)
19Harness, Main (Low Temp) (KEBS176SBL2)
19Indicator Light,
19Harness, Main (Low Temp) (KEBS176SBL2)
