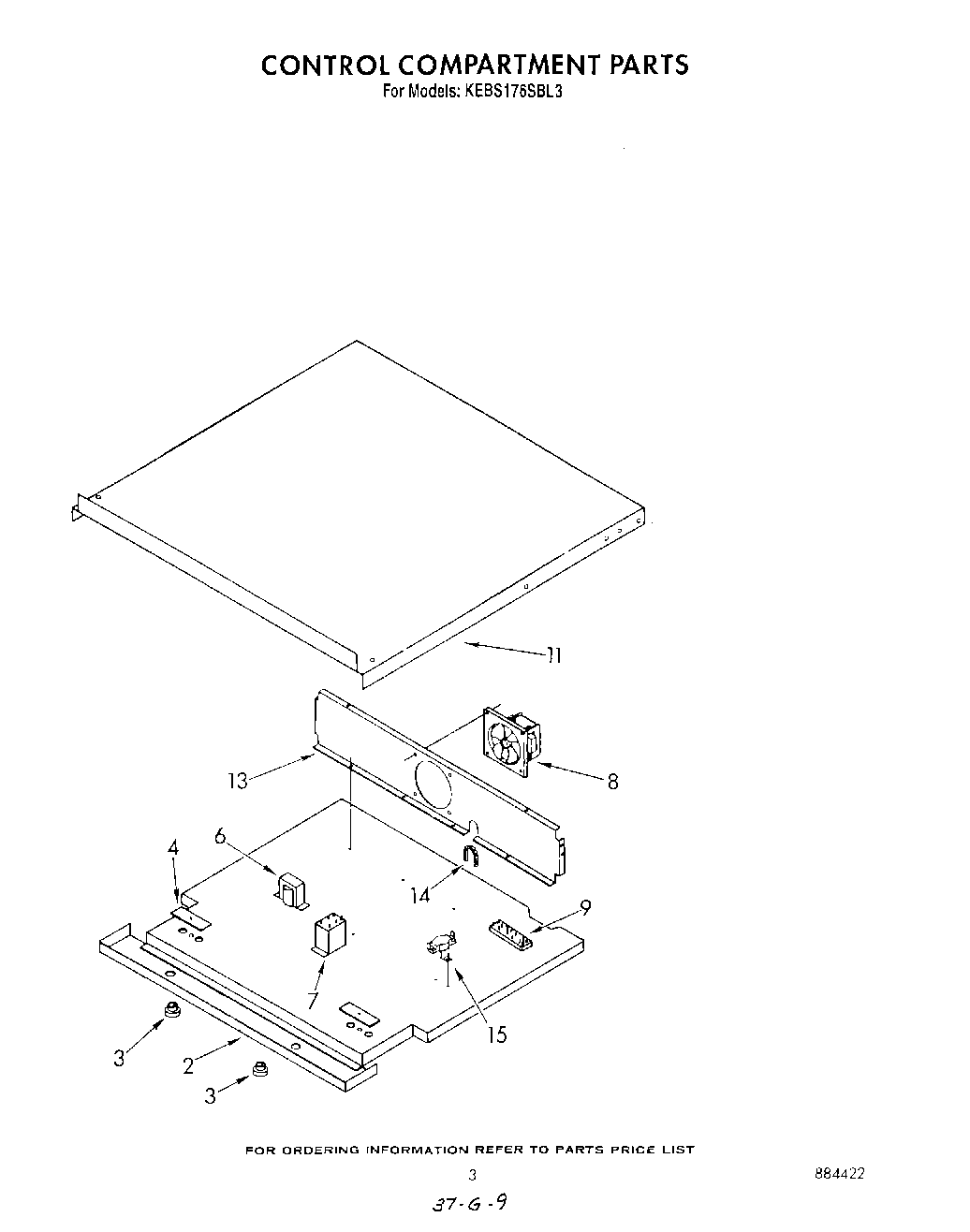

KEBS176SBL3 03 – CONTROL COMPARTMENT

Written by

Products

Position	Product
2	Sandwich Panel
3	Bushing
4	Hole Cover
6	Transformer, Meat Probe Model KEBS145SBL1
7	Relay, Meat Probe
8	Blower
9	Wire Assembly 10 GA. 70“
9	Wire 10 G.A. 70“
9	Wire 10 G.A. 70“
9	Terminal Block, Power Supply
11	Cabinet Top
13	Blower Mounting Panel
14	Bushing, Flexible
15	Switch, Fan
15	Screw, (2)
