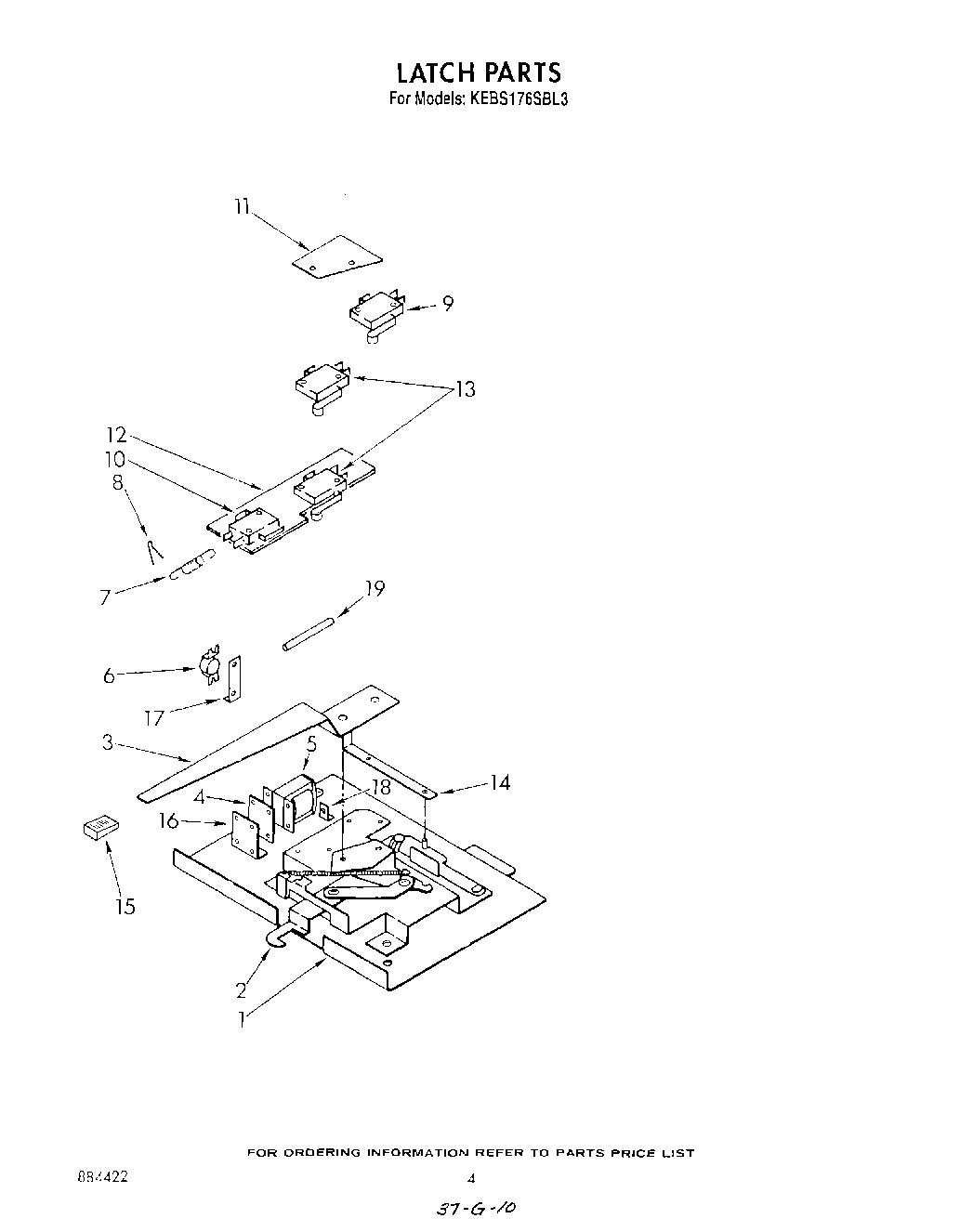

KEBS176SBL3 04 – LATCH

Products

Position	Product
10	Latch Switch
11	Insulator
12	Insulator (2)
13	Nut (2)
13	Latch Switch (2)
13	Screw, No.4-40 X 1 1/4“ Hex
14	Shoulder Screw, Actuator Arm
14	Retaining Ring
14	Washer, Flat
14	Spacer, Actuator Arm
14	Actuator Arm
15	Screw, No.10-24 X 3/8“ PTHMS
15	Nut, No.10-24 Hex Kep
15	Knob, Latch Lever
15	Solenoid
15	Screw (2)
15	Plate, Latch
15	lever, latch
15	Mechanism, Latch
15	Screw, No.10-24 X 3/8“ Hex TCS
15	Thermal Switch
15	Solenoid Spacer
15	Solenoid Spring
15	Cotter Pin
15	Latch Switch With Roller
15	Shoulder Screw Latch Lever Upper Oven
16	Solenoid Plate
16	Screw (2)
17	Mounting Bracket, Safety Switch
17	Screw
18	Bracket, Harness
18	Screw, (2)
19	Sleeve, Bulb
