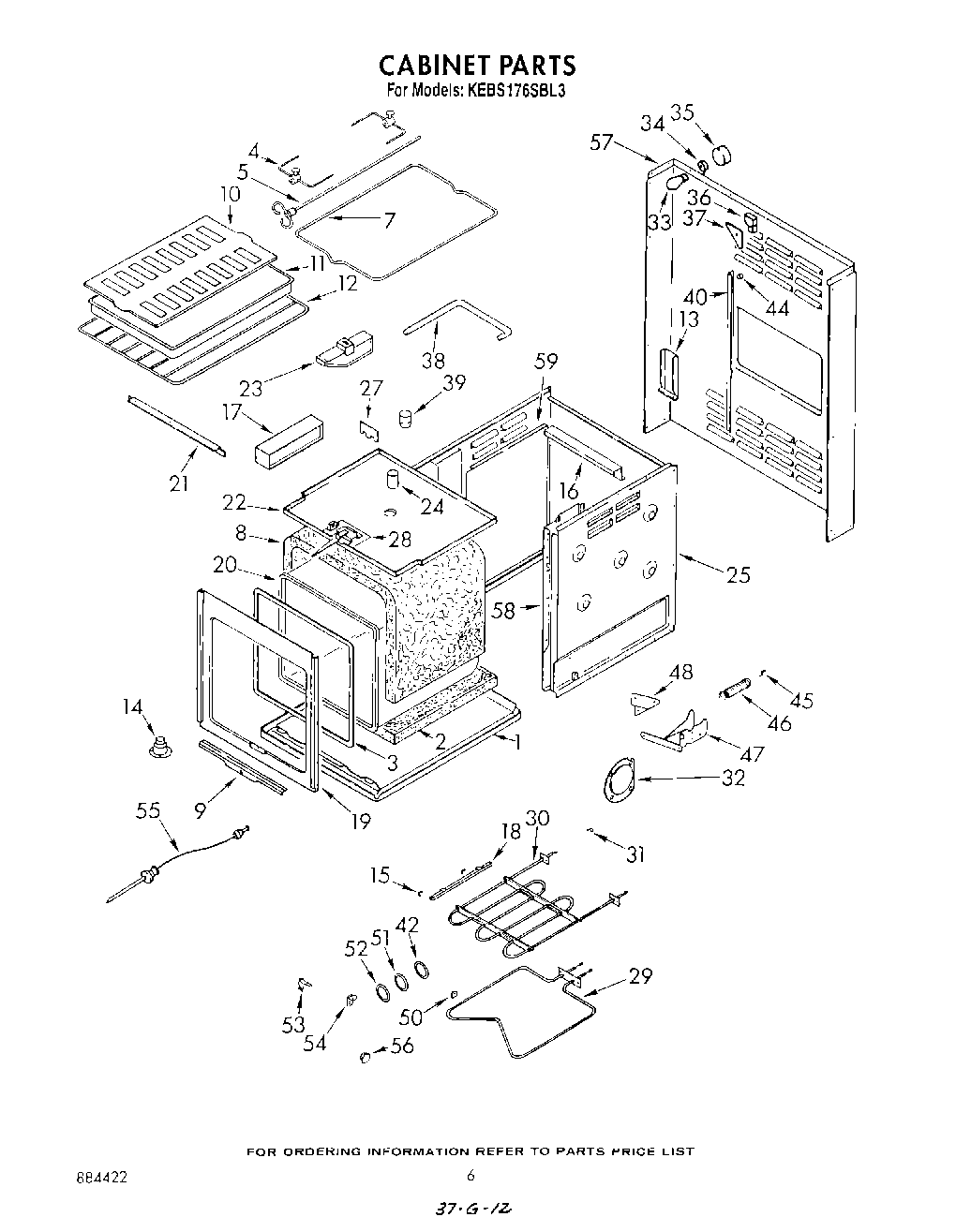

KEBS176SBL3 06 – CABINET

Products

Position	Product
1	Main Bottom
2	Insulation, Bottom
3	Door Gasket
4	Rotisserie Skewer
5	Rotisserie Spear
6	Cover, Seal End
7	Rotisserie Rack
8	Insulation, Top and Sides
8	Insulation, Rear
9	Vent, Lower Trim (Screw (2))
9	Cover, Seal End
11	4396923 Whirlpool Broil Pan Set Gray Porcelain
12	Oven Rack
13	Rear Anchor
14	Smoke Eliminator (Upper Oven)
15	Clip, Thermostat Bulb
16	Front Frame Support
17	Collector Box
18	Broiler Element Support-Left
18	Broiler Element Support-Right
18	Support, Element (Screw (4))
19	front frame
20	Liner, Oven
21	Control Frame Support
22	Compartment Top
23	Vent Box
23	nut (3)
23	Nut (4)
24	Vent Tube (Upper Oven)
25	Cabinet Side
27	Vent Tube Mounting Bracket
29	WP3177420 Whirlpool Bake Element
30	Broiler Element
31	Cover, Cap Tube
32	Probe Cover
33	Bulb, 40 Watt
34	Socket, Lamp
35	Light Shield
36	Rotisserie Motor
37	Rotisserie Motor Mounting Plate
37	WP488234 Whirlpool Air Conditioner Screw
38	Vent Tube, Lower Oven
38	Vent Tube, Retainer
39	Vent Tube Extension
40	Cabinet Support (Right)
40	Cabinet Support (Left)
42	Light Lens Gasket
44	Spacer
45	Spring, Anchor
46	Door Spring (Self Cleaning Oven)
47	Hinge Assembly
48	Cam Plate (Right)
49	WPL 4159188
49	Cam Plate (Left Left)
50	Plate, Cover
50	Shoulder Screw
51	Light Lens
52	Light Lens Retainer
52	Screw
53	Washer
53	Lock-Nut, Cvr.Jack
53	Nut, Hex Jam (2)
53	Meat Probe Jack Model KEBI145SBL1
53	Washer
53	Gasket, Meat Probe
54	Jack Cover
55	Meat Probe
56	Plug Button (5/8“ Hole)
57	Screw (2)
57	Cabinet Back
57	Screw (6)
58	Air Duct (Upper Oven) (Right)
58	Air Duct (Upper Oven) (Left Air Duct (Lower Oven))
59	WPL 4173017
59	WPL 4173016
59	Screw, (2)
