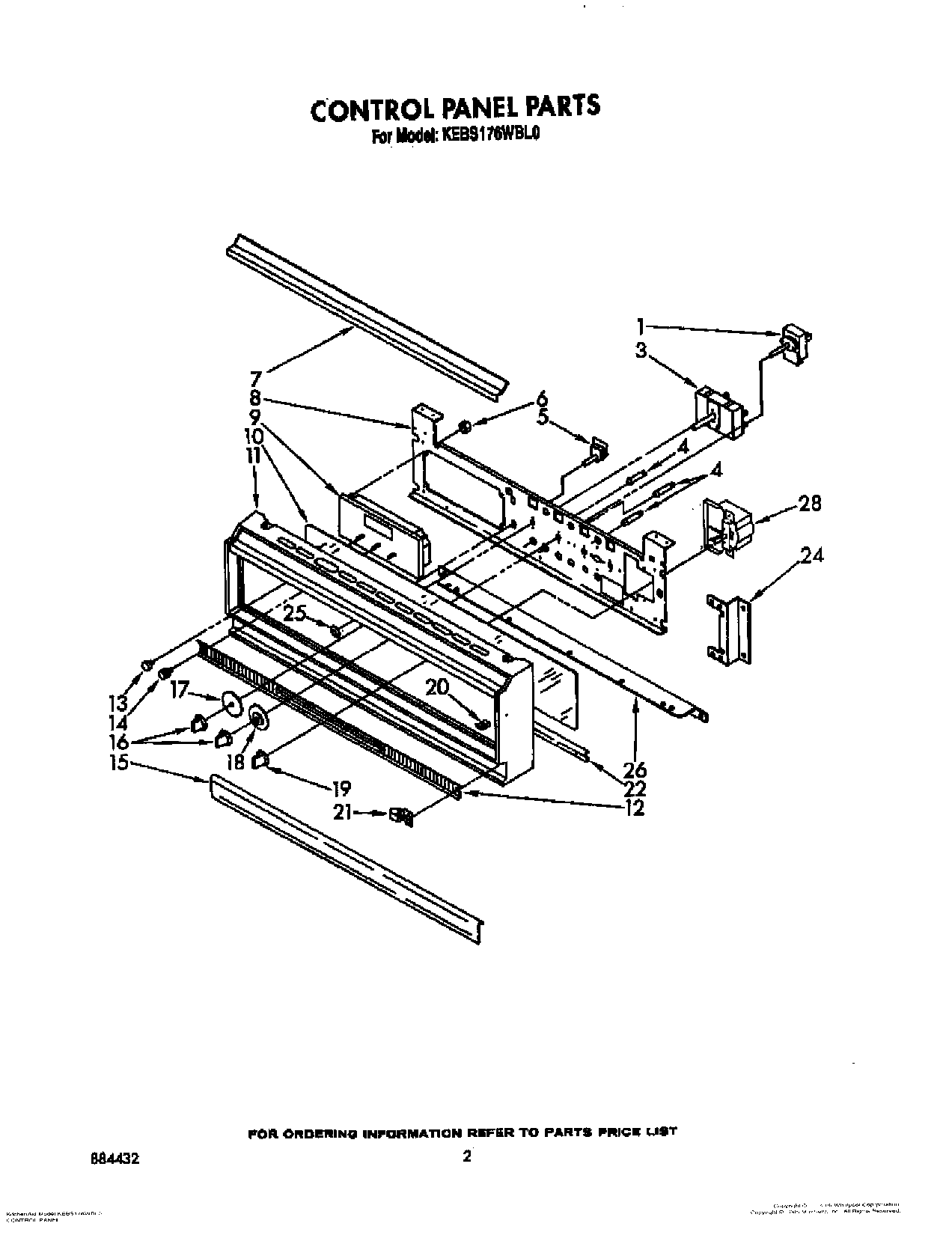

KEBS176WBL0 02 – CONTROL PANEL

Products

Position	Product
1	Thermostat, upper
3	Switch, Selector Upper Oven
3	WP486579 Whirlpool Air Conditioner Screw
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light
6	Nut, Timer (4)
7	Insert, Top
8	Bracket, Control
9	Clock
10	Glass, Control Panel
11	Frame, Control Panel
12	Insert, Vent
13	Knob, Clock
14	Knob, Clock (2)
15	Screw (5)
15	Handle (Black)
16	Knob, Control
17	Disc. Selector Upper Oven
18	Disc, Thermostat (Self Clean)
19	Knob
20	nut (3)
21	Hinge, Door (2)
21	Door, Latch Handle (Screw (2))
22	Retainer
22	Screw (6)
24	Bracket, Control Panel
25	Bezel, Oven Light Switch
26	Support, Frame
26	WP3177991 Whirlpool Screw
28	Screw,
28	Indicator, Meat Probe
