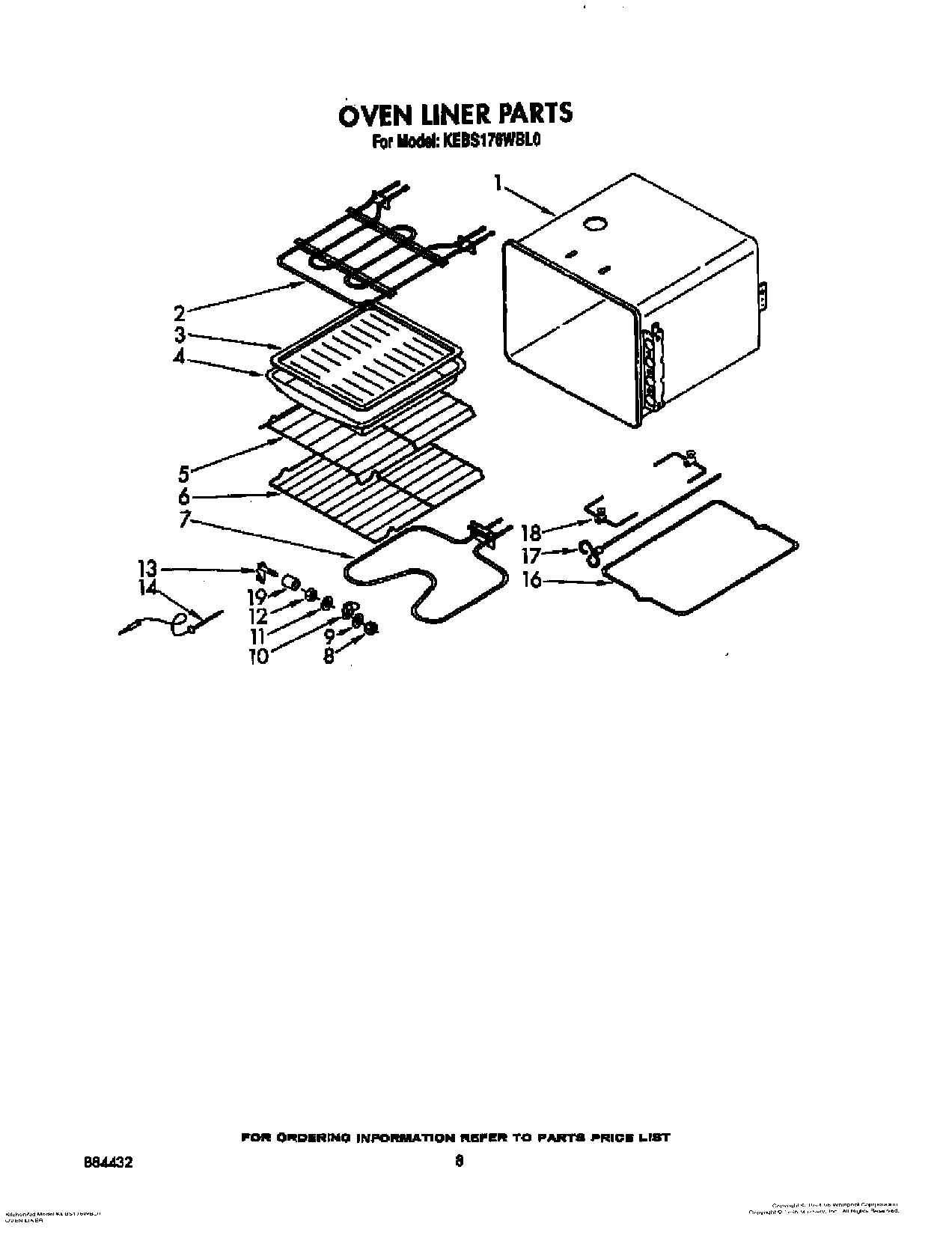

KEBS176WBL0 07 – OVEN LINER

KEBS176WBL0 07 – OVEN LINER

Written by

in

KEBS176WBL0 07 – OVEN LINER

Products

PositionProduct
1Liner, Oven
2Element, Broil
44396923 Whirlpool Broil Pan Set Gray Porcelain
5Rack, Offset
6Rack, Oven
7Screw (3)
7WP661416 Whirlpool Bake Element
8Lock-Nut, Cvr.Jack
9Gasket, Meat Probe
10Jack Cover
11Washer
12Nut, Hex Jam (2)
13Meat Probe Jack Model KEBI145SBL1
14Meat Probe
16Rotisserie Rack
17Rotisserie Spear
18Rotisserie Skewer
19Spacer – Tubing
