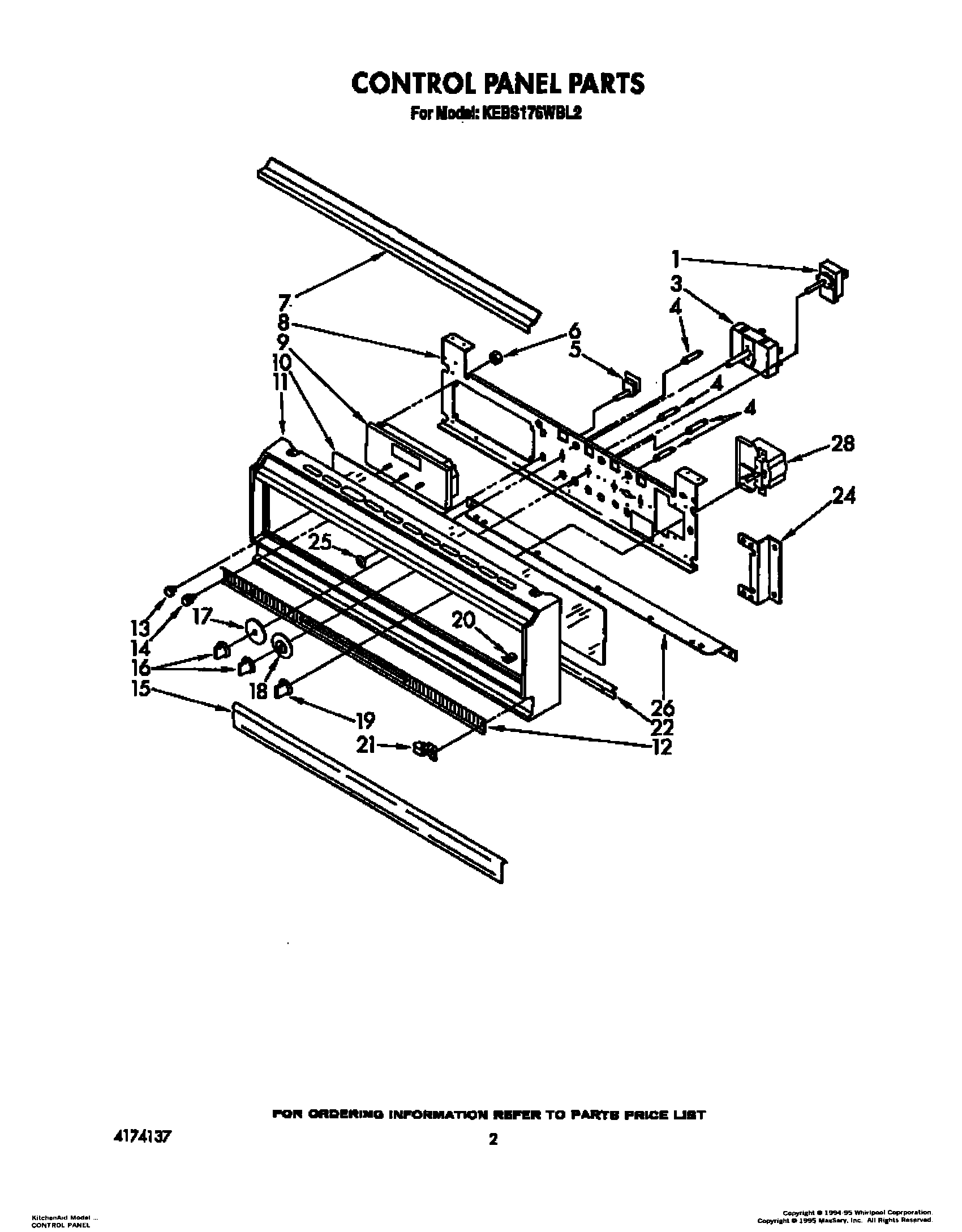

KEBS176WBL2 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3178195
	Repair Parts List
	Tech Sheet
	Guide, Use & Care
1	Thermostat, upper
3	WP486579 Whirlpool Air Conditioner Screw
3	Switch, Selector Upper Oven
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light
6	Nut, Timer (4)
7	Insert, Top
8	Bracket, Control
9	Clock
10	Glass, Control Panel
11	Frame, Control Panel (Black)
12	Insert, Vent
13	Knob, Clock
14	Knob, Clock (2)
15	Screw (5)
15	Handle (Black)
16	Knob, Control
17	Disc. Selector Upper Oven
18	Disc, Thermostat (Self Clean)
19	Knob
20	nut (3)
21	Hinge, Door (2)
21	Door, Latch Handle (Screw (2))
22	Retainer
22	Screw (6)
24	Bracket, Control Panel
25	Bezel, Oven Light Switch
26	WP3177991 Whirlpool Screw
26	Support, Frame
28	Indicator, Meat Probe
28	Screw,
