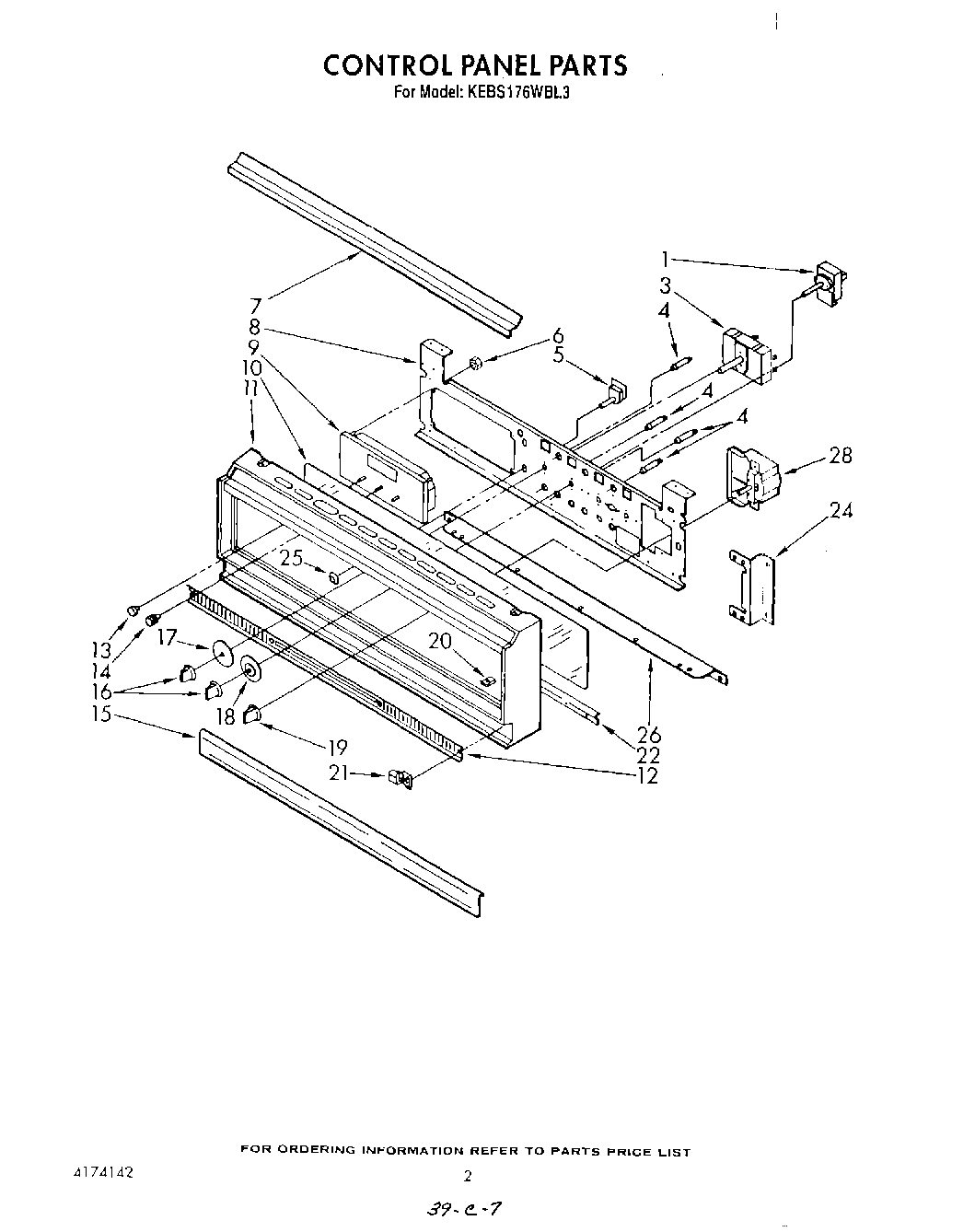

KEBS176WBL3 02 – CONTROL PANEL , LIT/OPTIONAL

Written by

Products

Position	Product
	Repair Parts List
	Cookbook
	Guide, Use & Care
	Tech Sheet
	WPL LIT3178195
1	Thermostat, upper
3	Switch, Selector Upper Oven
3	WP486579 Whirlpool Air Conditioner Screw
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light
6	Nut, Timer (4)
7	Insert, Top
8	Bracket, Control
9	Clock
10	Glass, Control Panel
11	Frame, Control Panel (Black)
12	Insert, Vent
13	Knob, Clock
14	Knob, Clock (2)
15	Screw (5)
15	Handle (Black)
16	Knob, Control
17	Disc. Selector Upper Oven
18	Disc, Thermostat (Self Clean)
19	Knob
20	nut (3)
21	Door, Latch Handle (Screw (2))
21	Hinge, Door (2)
22	Screw (6)
22	Retainer
24	Bracket, Control Panel
25	Bezel, Oven Light Switch
26	Support, Frame
26	WP3177991 Whirlpool Screw
28	Indicator, Meat Probe
28	Screw,
