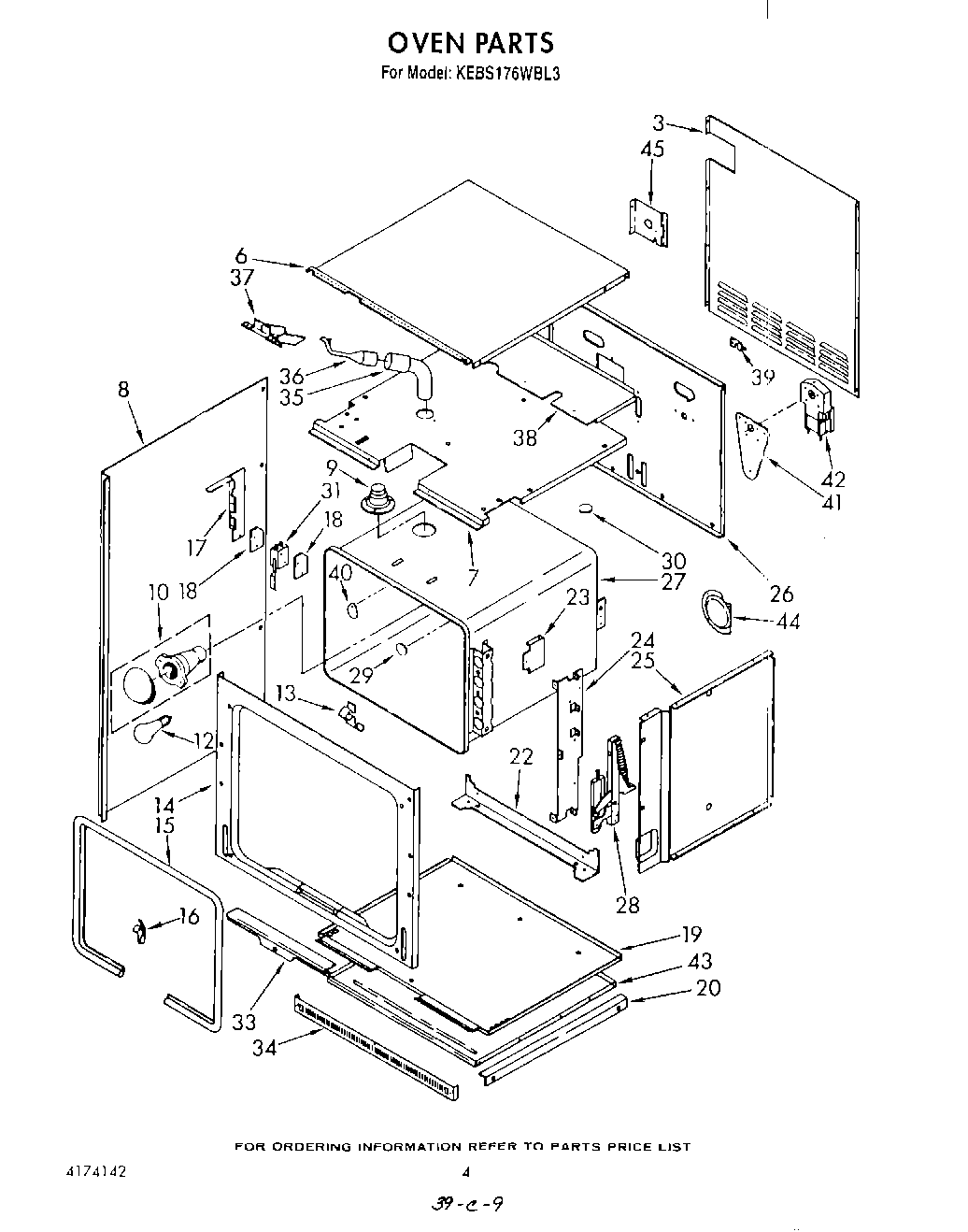

KEBS176WBL3 03 – OVEN

Products

Position	Product
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
8	Side, Cabinet (Left Hand)
9	Screw (3)
9	Smoke Eliminator (Upper Oven)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (4)
29	Plug Button (5/8“ Hole)
30	Plug Button (3/8“ Hole)
31	Switch, Door
31	Nut (2)
31	Screw (2)
32	Insulator, Switch
33	SCREW
33	Retainer, Seal
33	Screw (4)
34	Vent, Lower Trim (Black)
34	Screw, Black (2)
34	Vent, Lower Trim (Screw (2))
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	Shield, Vent
37	WP90767 Whirlpool Screw
38	Extension, Shelf
39	Cover, Cap Tube
39	Screw
40	Plate, Cover
41	Rotisserie Motor Mounting Plate
42	Rotisserie Motor
42	WP488234 Whirlpool Air Conditioner Screw
42	Washer, Lock Tooth
43	Bottom, Oven
44	Probe Cover
44	WP3177991 Whirlpool Screw
45	Bracket, Conduit
45	Insulation, Back
45	Insulation, Oven
