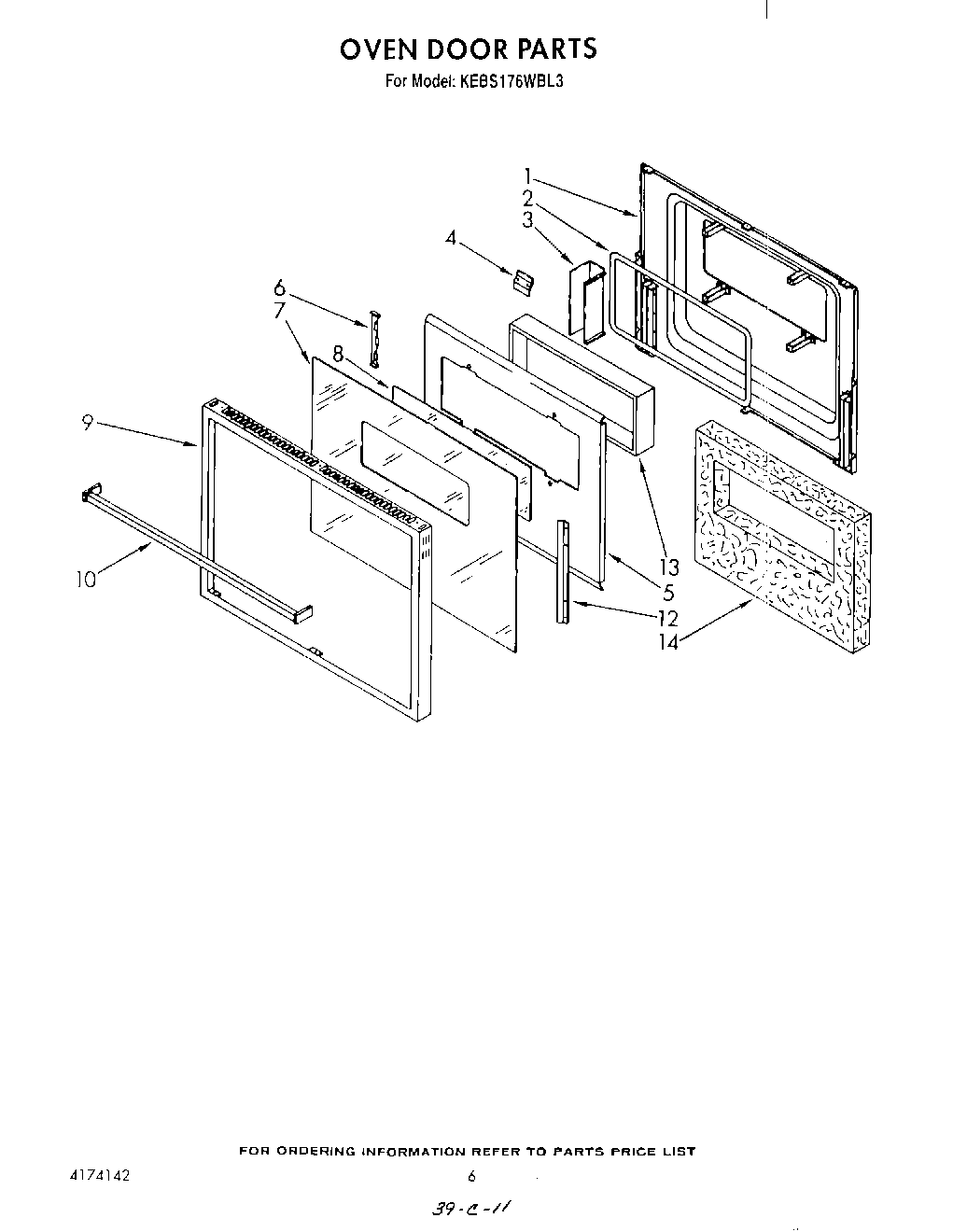

KEBS176WBL3 04 – OVEN DOOR

Products

PositionProduct
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
6Bracket, Glass Mtg.
6WP90767 Whirlpool Screw
7Glass, Door
8Glass, Reflective
9Frame, Door
10Handle, Door
10Handle, Door (Screw)
12Retainer, Glass
12Screw (4)
13Window Package
14Insulation, Door
