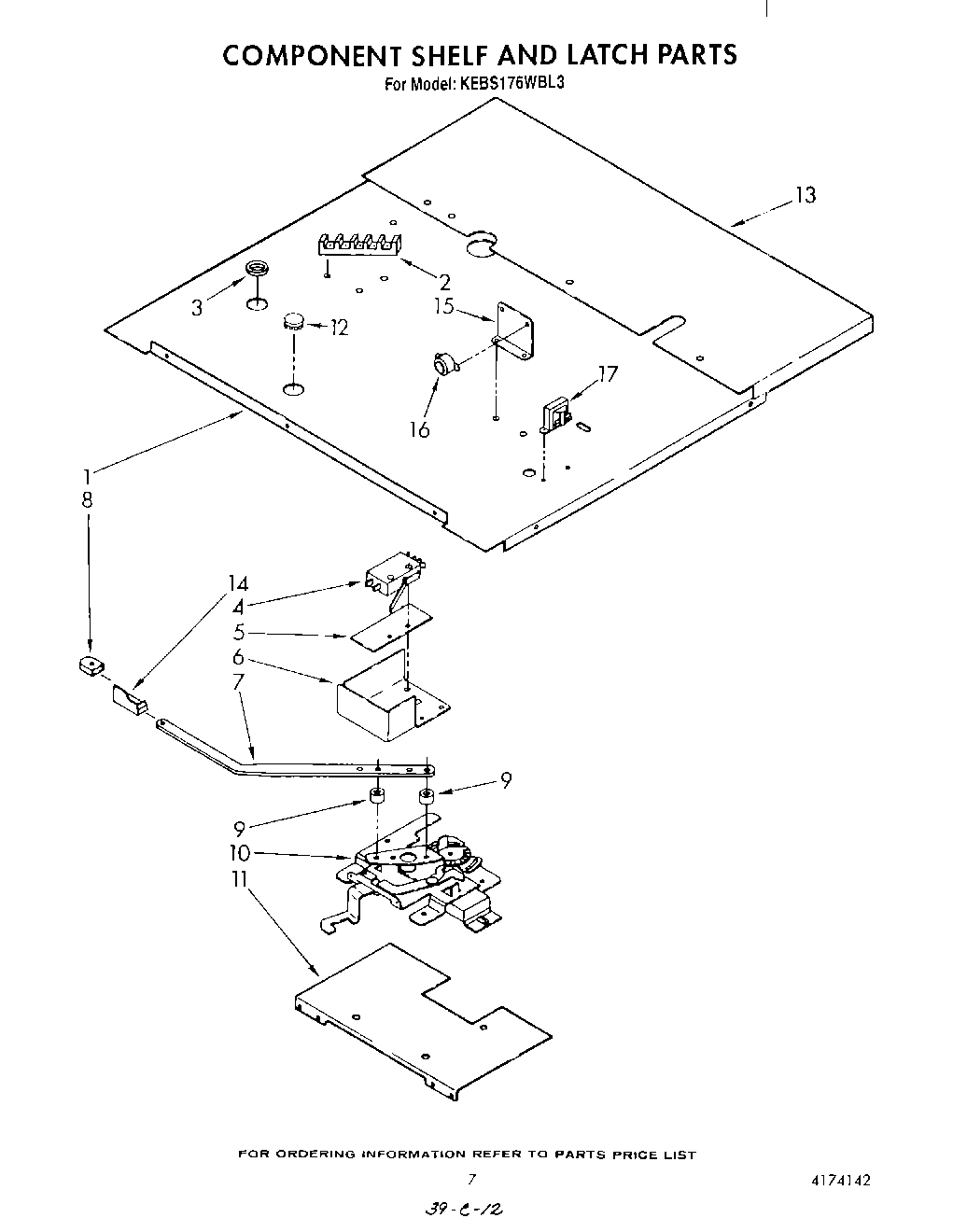

KEBS176WBL3 05 – COMPONENT SHELF AND LATCH
Written by
in
KEBS176WBL3 05 – COMPONENT SHELF AND LATCH
Products
Position
Product
1
Shelf, Component
2
WP8203546 Whirlpool Terminal Block
3
Bushing
4
Switch, Latch
4
Screw
5
Insulator, Switch
6
Guard, Latch
6
Screw,
7
Handle, Latch
8
Knob, Latch Handle
9
Screw, 8-18 X 3/4 (4)
9
WP90767 Whirlpool Screw
9
Screw (2)
9
Spacer, Handle (2)
10
Latch, Mechanism
11
Plate, Mounting
12
Plug, Button
13
Extension, Shelf
14
WP488234 Whirlpool Air Conditioner Screw
14
Support, Latch
15
Screw (2)
15
Bracket, Buzzer
16
W10841059 Whirlpool Screw
16
Buzzer, Meat Probe
17
WP3177991 Whirlpool Screw
17
Transformer
←
