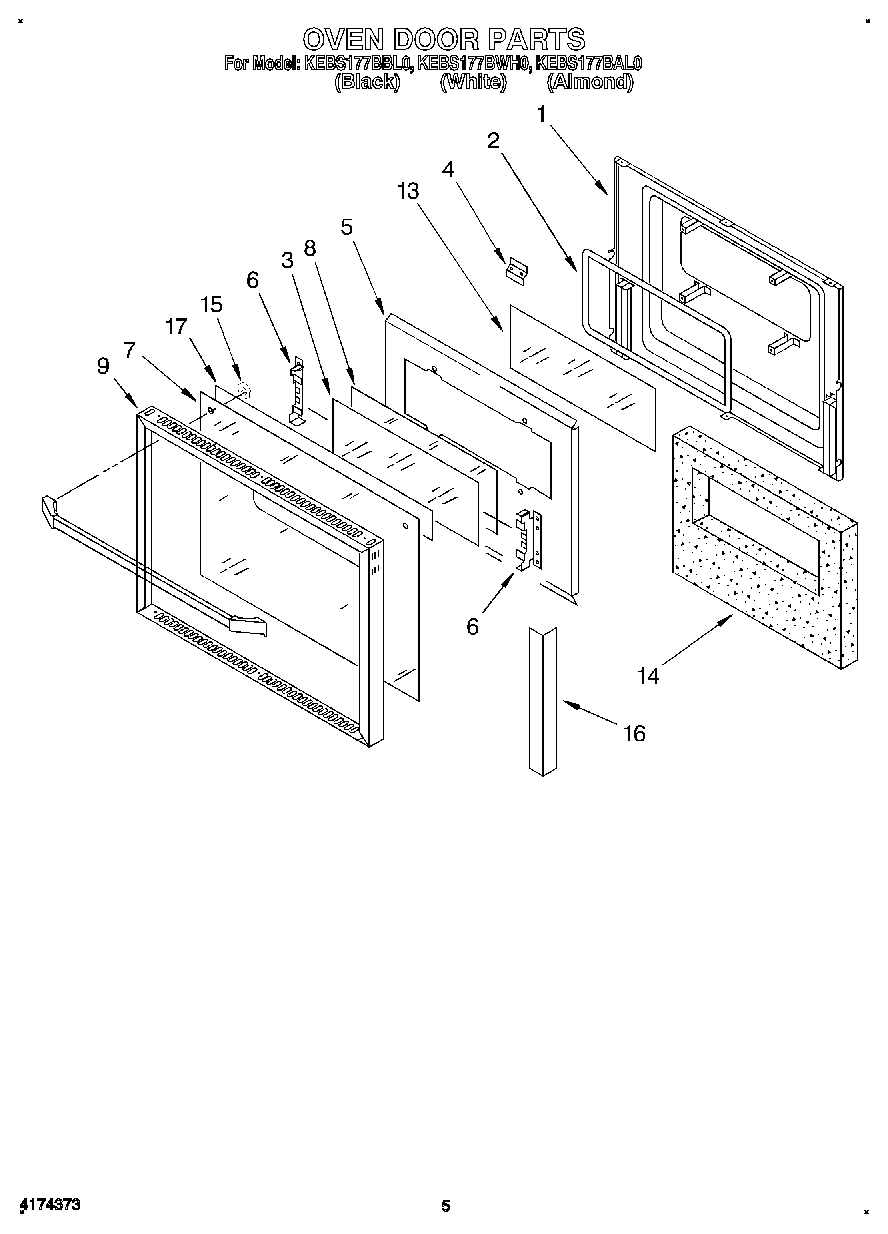

KEBS177BAL0 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Latch, Strike
5	Retainer, Insulation
5	Vent, Lower Trim (Screw (2))
6	Retainer, Glass
6	Screw
7	Glass, Door (White Model)
7	Glass, Door (Black Model)
7	Glass, Door (Almond Model)
8	Glass, Reflective
9	Frame, Door (Almond Model)
9	Frame, Door (Black Model)
9	Frame, Door (White Model)
10	Handle, Door (White Model)
10	Handle, Door (Almond Model)
10	Screw
10	Handle, Door (Black Model)
13	Glass, Clear
14	Screw, Black (2)
14	Insulation, Door
15	Screw, 10-32 x 1/2
15	Bushing, Door Handle
16	Foil-Adhesive
17	Foil, Adhesive
