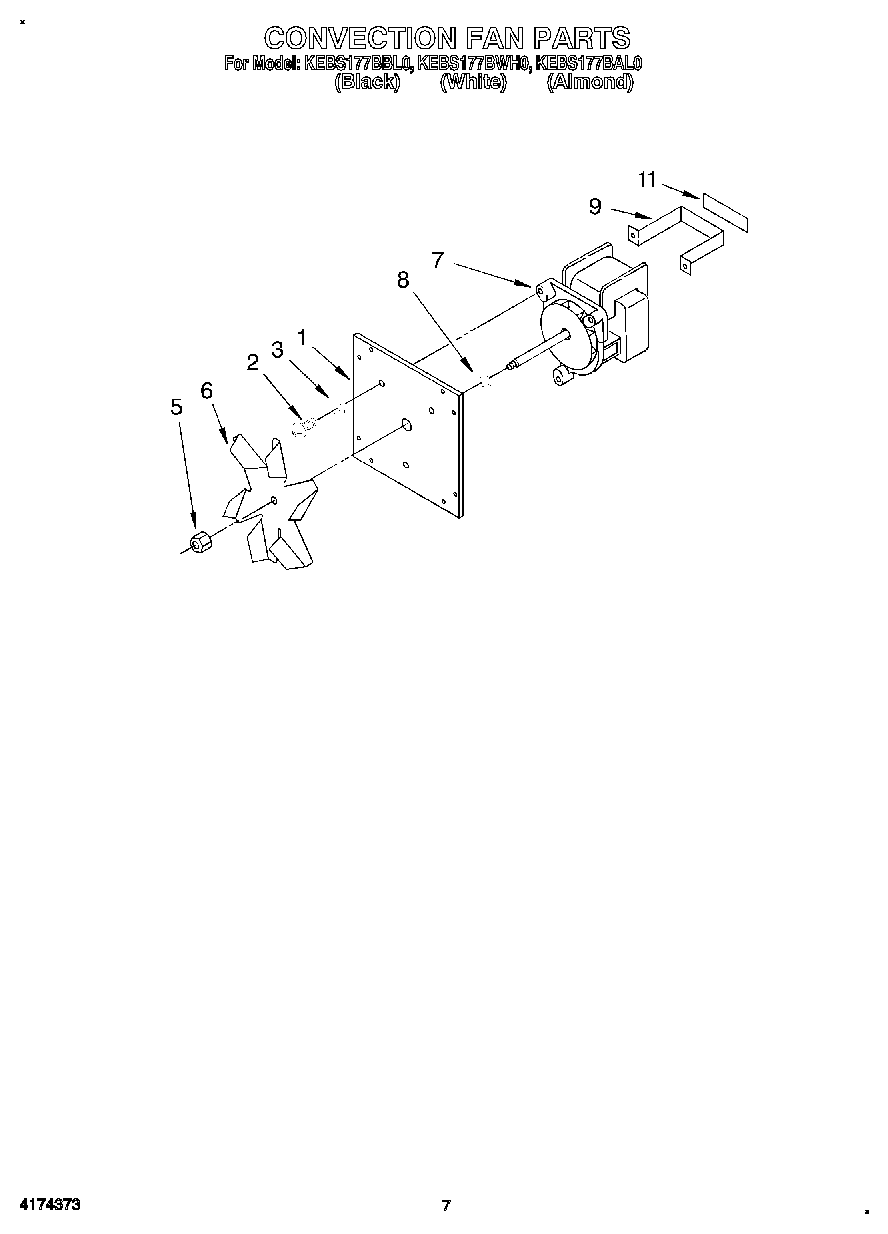

KEBS177BAL0 06 – CONVECTION FAN, OPTIONAL

Products

Position	Product
1	Plate, Mounting
2	Screw, Fan Mounting
3	Lockwasher (3)
5	Nut (Left Hand)
6	Fan
7	Motor
8	E-Ring
9	Bracket Guard
11	Wire (14 Ga. 150 c Yellow)
11	Wire (14 Ga. 150 c Orange)
11	Wire (14 Ga. 150 c Green)
11	Wire (14 Ga. 150 c Brown)
11	WP261869 Whirlpool Microwave Paint
11	Wire (14 Ga. 150 c Blue)
11	Wire (12 Ga. 150 c Black)
11	18 Ga. 80~c Rating (Red)
11	Wire (14 Ga. 200 c Brown)
11	1
11	WPL 3171507
11	WPL 591014
11	WPL 832985
11	WPL 350806
11	Gasket, Foam
11	242831 Whirlpool Oven Wire
11	WP482338 Whirlpool Refrigerator Adhesive
11	Golden Harvest (Uncut)
11	Golden Harvest
11	72113 Whirlpool Touch-Up Paint
11	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
11	Almond (Uncut)
11	Leveler (Thinner)
11	WP72107 Whirlpool Touchup
11	799344 Whirlpool Refrigerator Paint
11	72017 Whirlpool Appliance Touch-Up Paint White
11	350956 Whirlpool Spray Assembly
11	Toast
11	Paint, Spray (13 Oz.) (Platinum)
11	72032 Whirlpool Touch Up Paint Black
11	285006 Whirlpool Spray
11	Wire, 25`` Roll (White 14 GA.)
11	Wire, 25` Roll (Red 14 Ga.)
11	Wire, 25` Roll (Black 14 Ga.)
11	WPL 799832
11	350942 Whirlpool Spray Paint
11	WPL 72112
11	Platinum (Uncut)
11	Enamal, Toast (1 Qt. Uncut)
11	350930 Whirlpool White Spray Paint
