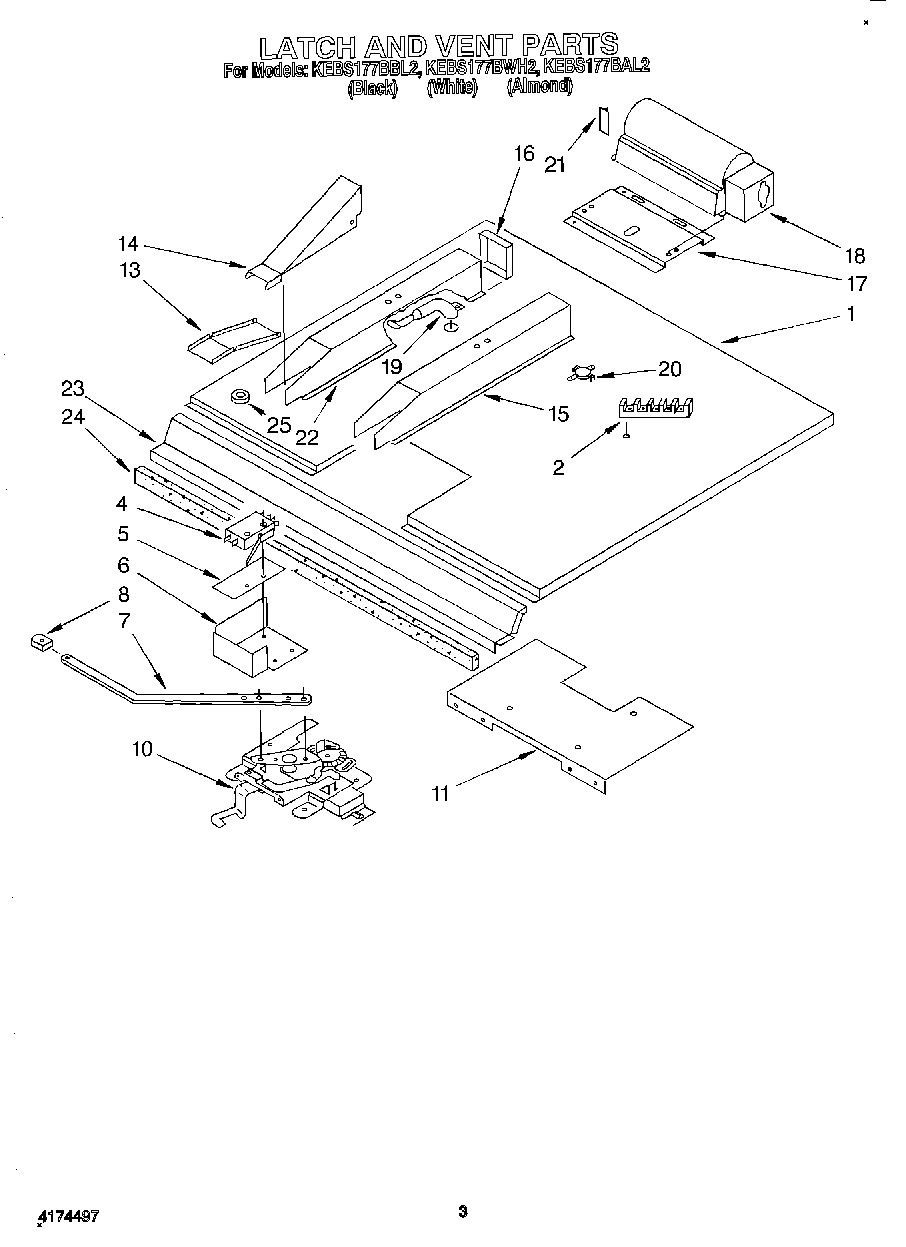

KEBS177BAL2 02 – LATCH AND VENT
Written by
in
KEBS177BAL2 02 – LATCH AND VENT
Products
Position
Product
1
Module, Top
2
Screw (10-12 x .875)
2
WP8203546 Whirlpool Terminal Block
4
Screw,
4
Screw
4
Switch, Latch
5
Insulator, Switch
6
Guard, Latch
7
Handle, Latch
7
Screw
8
Screw (2)
8
Screw, 8-18 X 3/4 (4)
8
Screw
8
Knob, Latch Handle
10
Latch, Mechanism
11
Plate, Mounting
13
Nozzle, Vent Bottom
14
Nozzle, Vent Top
15
Box, Vent
15
Screw
16
End, Vent Box
17
WP3177991 Whirlpool Screw
17
Bracket, Mounting
18
Blower, fan
19
Tube, Vent
20
Screw
20
SPST Thermostat
21
Screw
21
Baffle-Blower
22
Box, Vent
23
Shield, Heat
24
Seal, foam
25
Bushing
←
