KEBS177BAL2 03 – CONTROL PANEL, LITERATURE

KEBS177BAL2 03 – CONTROL PANEL, LITERATURE

Written by

in

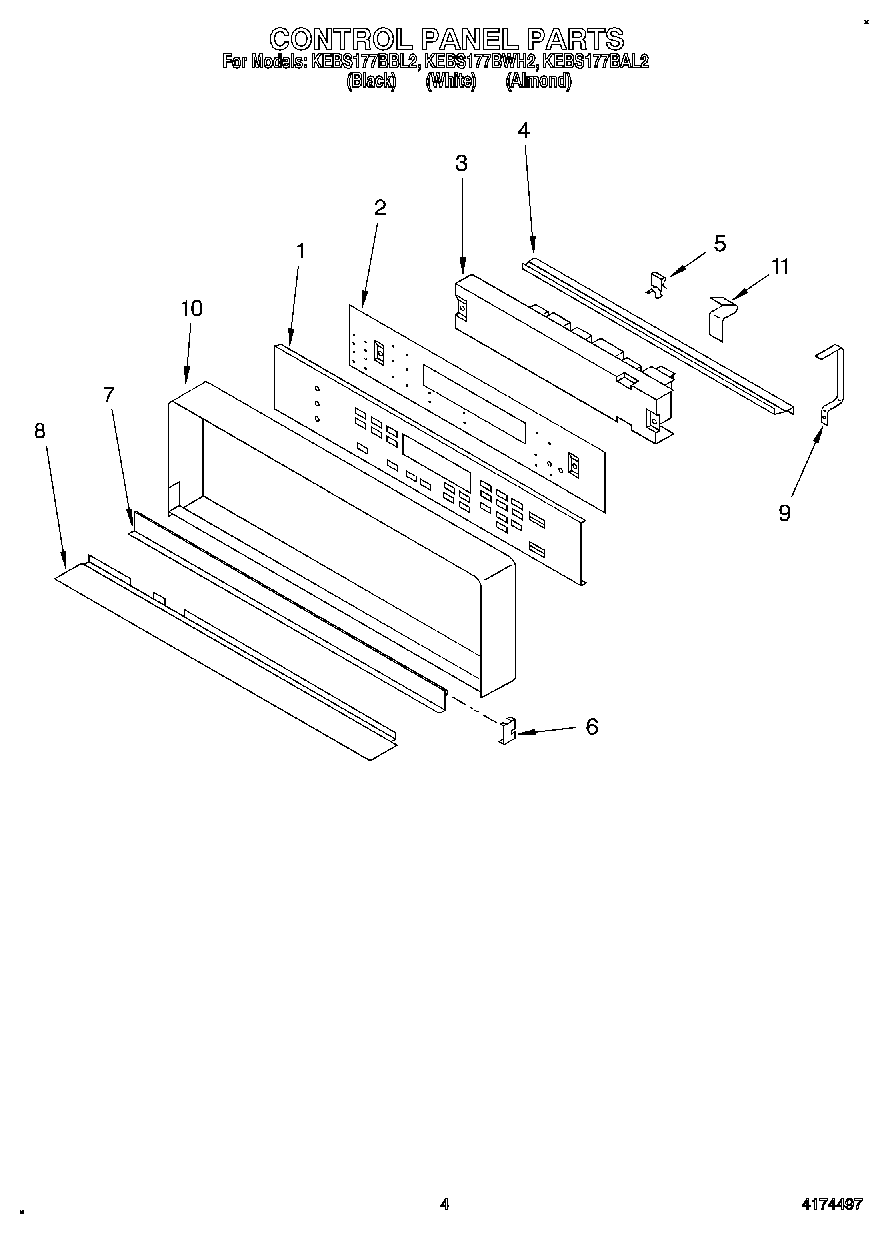

KEBS177BAL2 03 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Installation Instructions
WPL LIT3188199
Tech Sheet
Video, K/A T/C Ovens
Guide, Auto Set
Cookbook T/C Oven
1Membrane, Switch (White, Model)
1Membrane, Switch (Black Model)
1Membrane, Switch (Almond, Model)
2Bracket, Mounting Switch Membrane
3Screw (2)
3Microcomputer
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Almond)
7Door, Latch Handle (Black)
7Door, Latch Handle (White)
7Door, Latch Handle (Screw (2))
8Trim, Panel
9Screw (2)
9Bracket (2)
10Frame, Control Panel (Black Model)
10Frame, Control Panel (Almond Model)
10Frame, Control Panel (White Model)
11Clip, Control Frame
11Screw
11Screw
