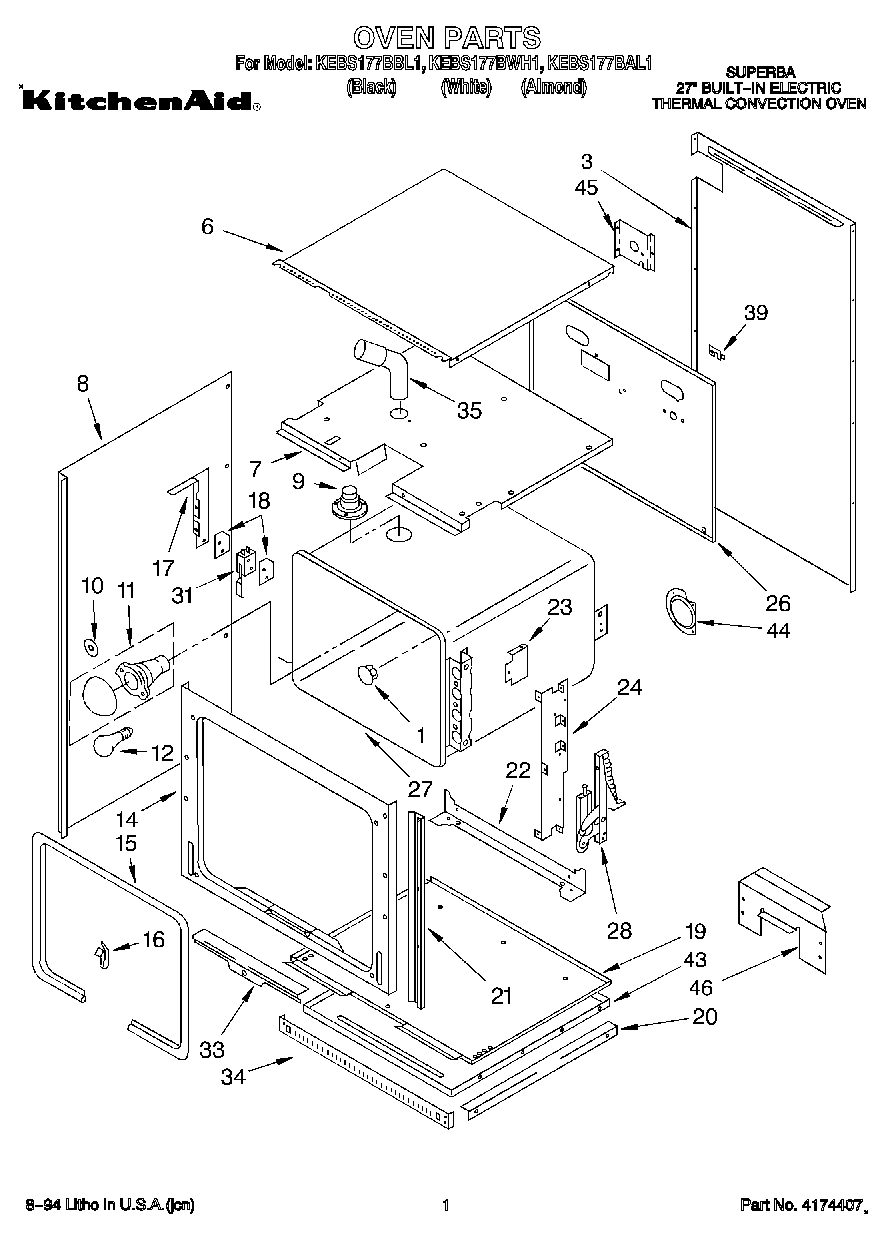

KEBS177BBL1 01 – OVEN

KEBS177BBL1 01 – OVEN

Written by

in

KEBS177BBL1 01 – OVEN

Products

PositionProduct
1Button, Plug
3Cabinet, Back
6Cabinet, Top
7Module, Top
8Side, Cabinet (R.H. & L.H.)
8Side, Cabinet (Left Hand)
9Screw (2)
9Tube, Vent
10WP3184533 Whirlpool Range Light Lens Gasket
11W11594027 Whirlpool Range Oven Light Socket
12RANGE ONLY 40W 120V APPL BULB
14Frame, Front
15Seal, Door
16Clip, Oven Seal
17Bracket, Switch
18Insulator, Switch
19Bottom, Modual
20Rail, Support (2)
21Trim, Door Side (2) (Black Model)
21Side Trim, Door (2) (Almond Model)
21Side Trim, Door (2) (White Model)
22Support, Oven
23Shield, Radiation
23Screw (6)
24Bracket, Hinge
26Back, Module
27Liner, Oven
28Hinge, Door
31Switch, Door
31Nut (2)
31Screw (2)
33Screw
33Retainer, Seal
34Vent, Lower Trim (Black)
34Trim, Lower Vent (White Model)
34Vent, Lower Trim (Almond Model)
34Vent, Lower Trim (Screw (2))
34Vent, Lower Trim (Screw (4))
35Tube, Vent
39Screw
39Cover, Cap Tube
43Bottom, Oven
44Probe Cover
44WP3177991 Whirlpool Screw
45Bracket, Conduit
46WPL 3183752
46Screw
46Insulation, Oven
46Insulation, Back
