KEBS177BBL1 03 – CONTROL PANEL, LITERATURE
Written by
in

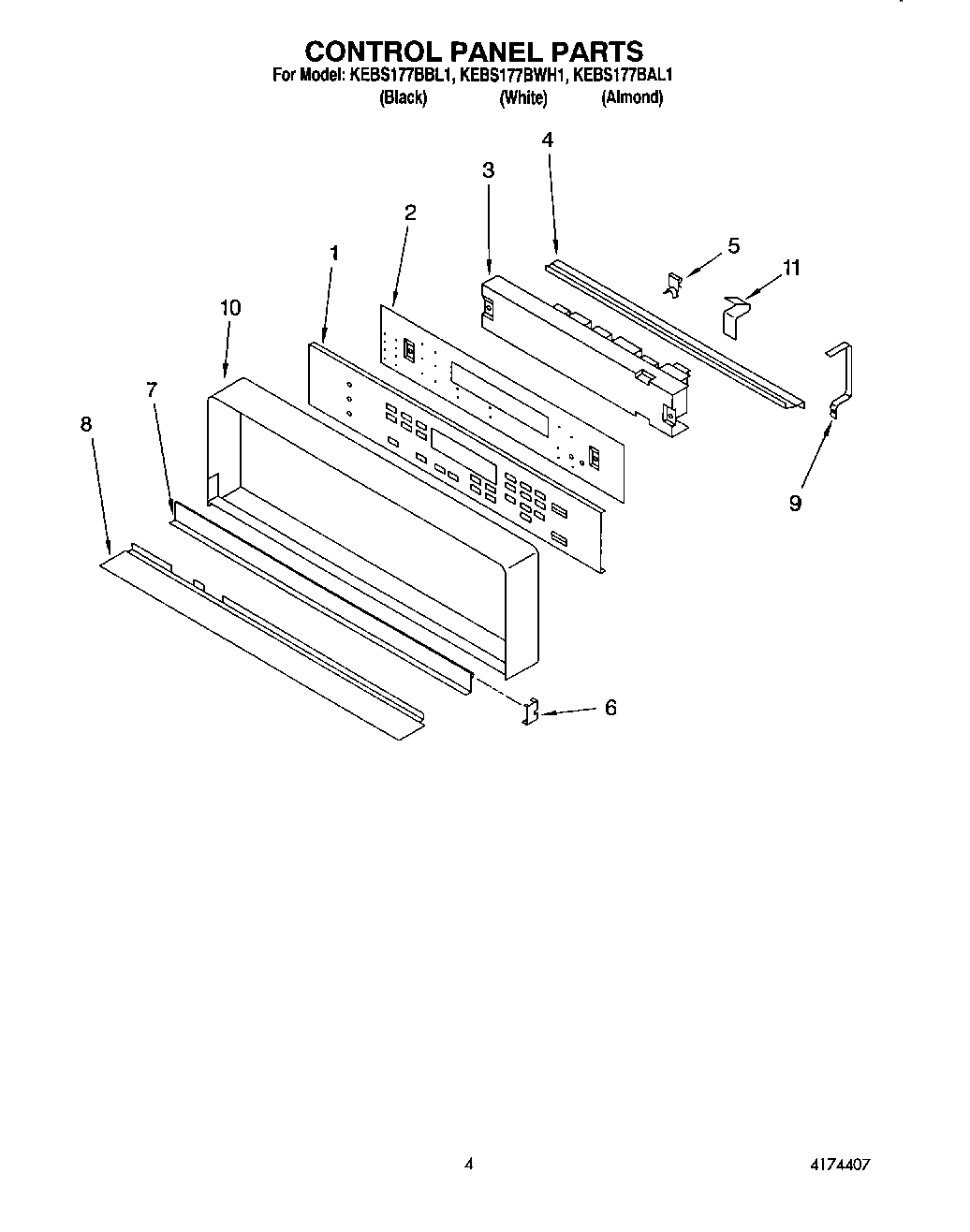

KEBS177BBL1 03 – CONTROL PANEL, LITERATURE
Products
Position
Product
Installation Instructions
WPL LIT3188199
Guide, Auto Set
Tech Sheet
Cookbook T/C Oven
Screw
1
Membrane, Switch (White, Model)
1
Membrane, Switch (Black Model)
1
Membrane, Switch (Almond, Model)
2
Bracket, Mounting Switch Membrane
3
Screw (2)
3
Microcomputer
4
Retainer, Bracket
5
Clip, Retainer (3)
6
Trim, Door (2)
7
Door, Latch Handle (Screw (2))
7
Door, Latch Handle (White)
7
Door, Latch Handle (Black)
7
Door, Latch Handle (Almond)
8
Trim, Panel
9
Screw (2)
9
Bracket (2)
10
Frame, Control Panel (Almond Model)
10
Frame, Control Panel (White Model)
10
Frame, Control Panel (Black Model)
11
Clip, Control Frame
11
Screw
←
