KEBS177BBL1 04 – OVEN DOOR

KEBS177BBL1 04 – OVEN DOOR

Written by

in

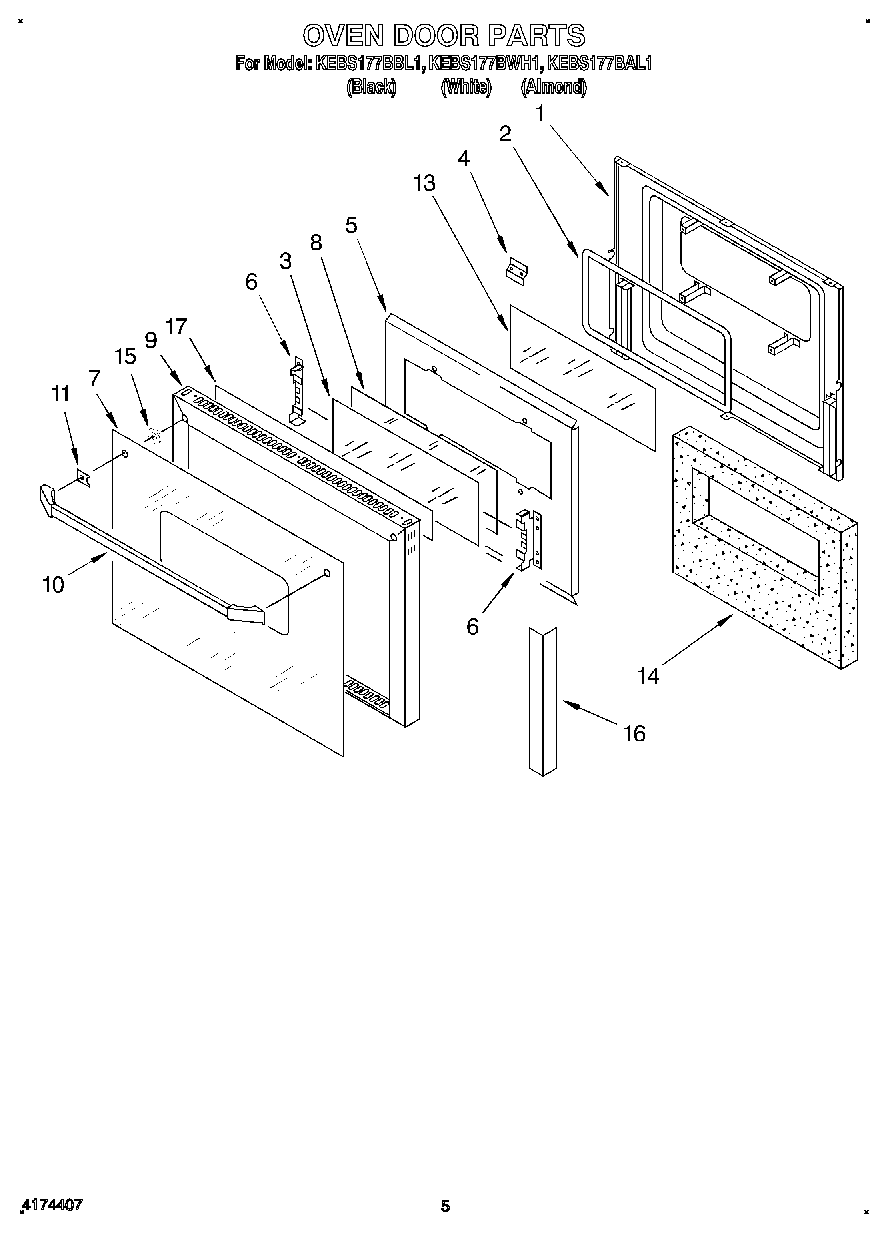

KEBS177BBL1 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Latch, Strike
5	Vent, Lower Trim (Screw (2))
5	Retainer, Insulation
6	Retainer, Glass
6	Screw
7	Glass, Door (White Model)
7	Glass, Door (Black Model)
7	Glass, Door (Almond Model)
8	Glass, Reflective
9	Frame, Door (Almond Model)
9	Frame, Door (Black Model)
9	Frame, Door (White Model)
10	Handle, Door (Black Model)
10	Handle, Door (White Model)
10	Screw
10	Handle, Door (Almond Model)
11	Spacer, Door Handle
13	Glass, Clear
14	Screw, Black (2)
14	Insulation, Door
15	Screw, 10-32 x 1/2
15	Bushing, Door Handle
16	Foil-Adhesive
17	Foil, Adhesive
