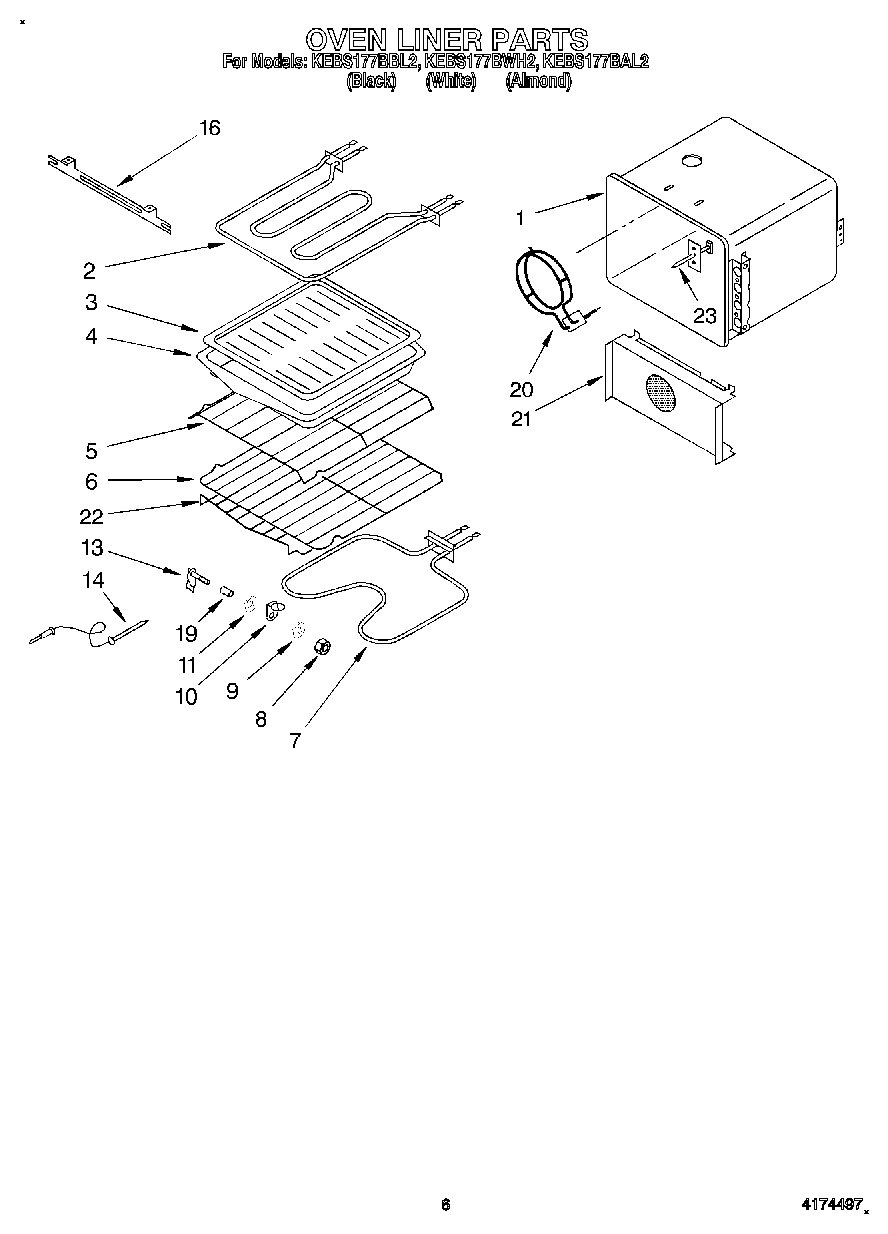

KEBS177BBL2 05 – OVEN LINER

Written by

Products

Position	Product
1	Liner, Oven
2	Element, Broil
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
5	Rack, Offset
6	Rack, Oven
7	WP661416 Whirlpool Bake Element
8	Lock-Nut, Cvr.Jack
9	Gasket, Meat Probe
10	Jack Cover
11	Washer
13	Receptacle, Probe
14	Probe
16	Bracket, Element
19	Spacer – Tubing
20	Element, Convection
21	Cover, Fan
22	Rack, Roasting
23	Screw (2)
23	Sensor, Heat
