KEBS177BBL3 04 – OVEN DOOR

KEBS177BBL3 04 – OVEN DOOR

Written by

in

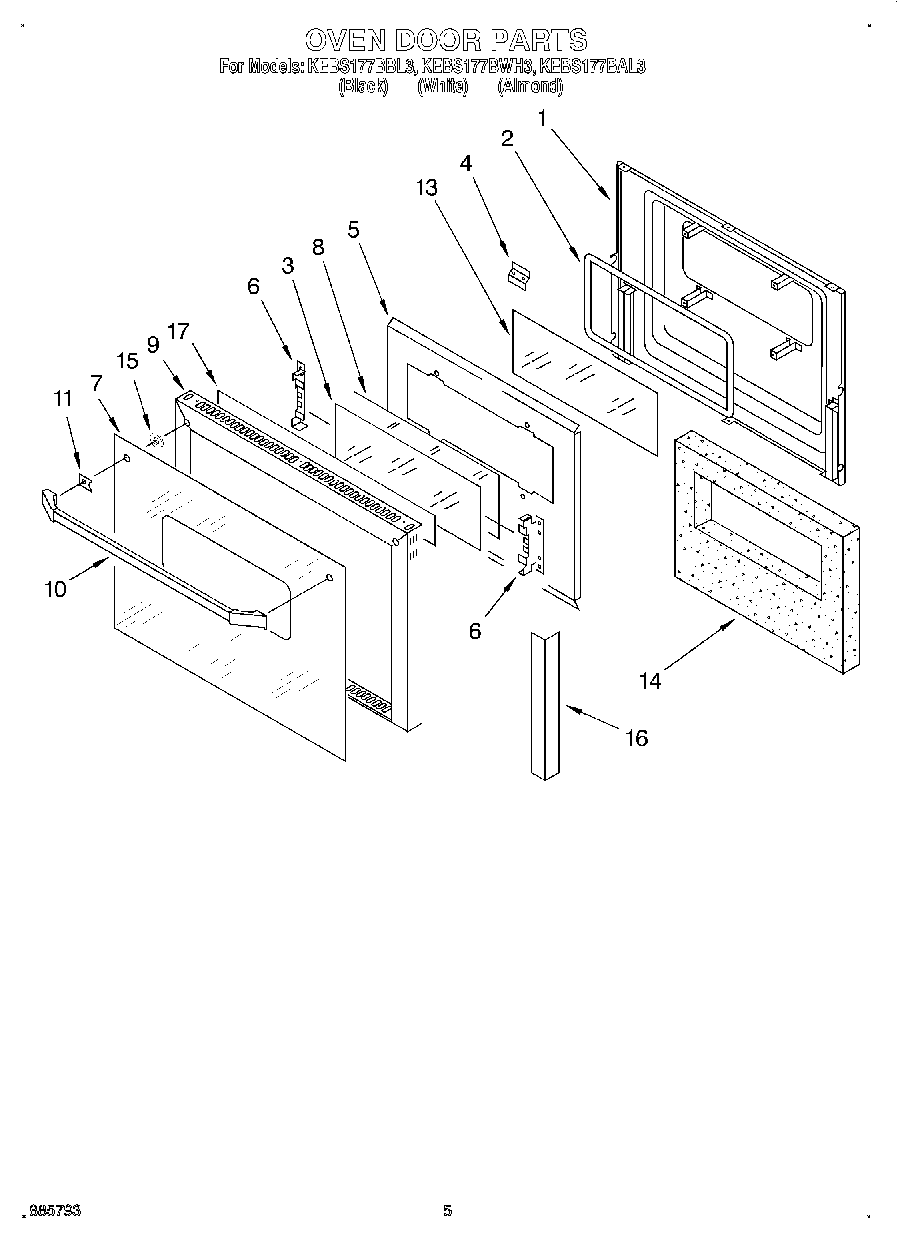

KEBS177BBL3 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Latch, Strike
5	Retainer, Insulation
6	Retainer, Glass
6	Screw
7	Glass, Door (Black Model)
7	Glass, Door (Almond Model)
7	Glass, Door (White Model)
8	Glass, Reflective
9	Frame, Door (White Model)
9	Frame, Door (Black Model)
9	Frame, Door (Almond Model)
10	Handle, Door (Almond Model)
10	Screw (2)
10	Handle, Door (Black Model)
10	Handle, Door (White Model)
11	Spacer, Door Handle
13	Glass, Clear
14	Screw, Black (2)
14	Insulation, Door
15	Bushing, Door Handle
15	Screw, 10-32 x 1/2
16	Foil-Adhesive
17	Foil, Adhesive
17	Screw
