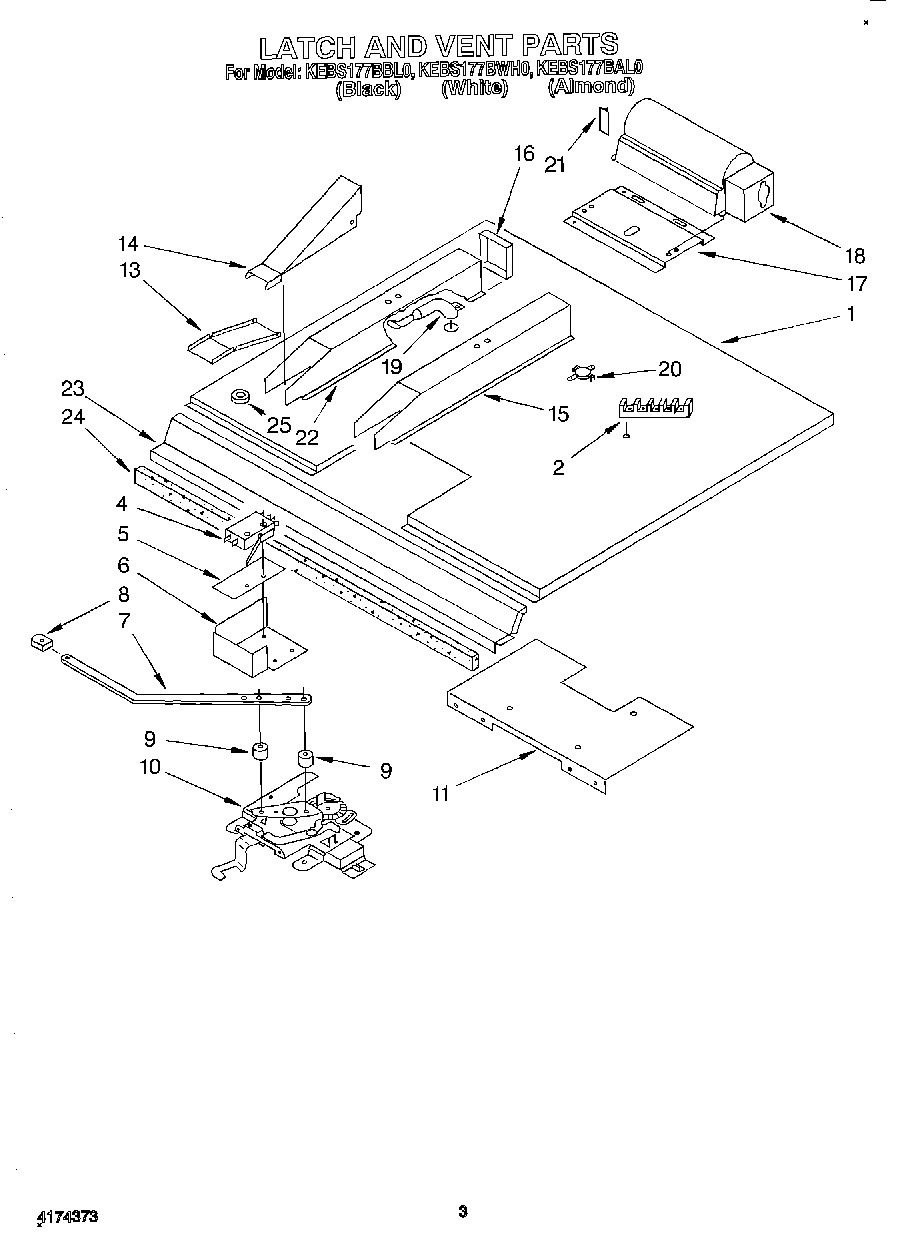

KEBS177BWH0 02 – LATCH AND VENT

Products

PositionProduct
1Module, Top
2WP8203546 Whirlpool Terminal Block
2Screw (10-12 x .875)
4Screw
4Switch, Latch
4Screw,
5Insulator, Switch
6Guard, Latch
7Handle, Latch
8Screw
8Knob, Latch Handle
9Spacer, Latch Handle
9Screw, 8-18 X 3/4 (4)
9Screw (2)
10Latch, Mechanism
11Plate, Mounting
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Box, Vent
16End, Vent Box
17Bracket, Mounting
17WP3177991 Whirlpool Screw
18Blower, fan
19Tube, Vent
20SPST Thermostat
20Screw
21Screw
21Baffle-Blower
22Box, Vent
23Shield, Heat
24Seal, foam
25Bushing
