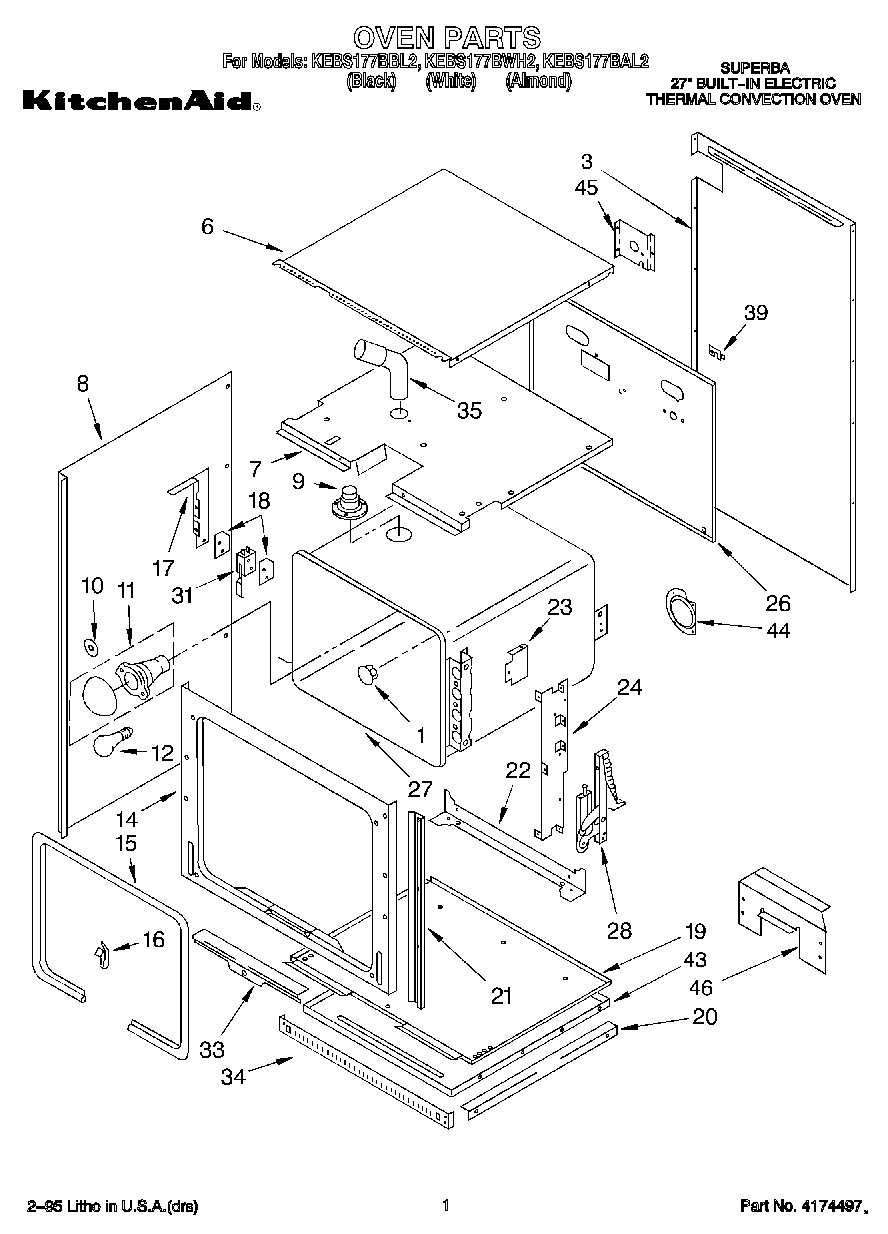

KEBS177BWH2 01 – OVEN

Products

Position	Product
1	Button, Plug
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
8	Side, Cabinet (Left Hand)
9	Screw (2)
9	Tube, Vent
10	WP3184533 Whirlpool Range Light Lens Gasket
11	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Side Trim, Door (2) (Almond Model)
21	Side Trim, Door (2) (White Model)
21	Trim, Door Side (2) (Black Model)
22	Support, Oven
23	Shield, Radiation
23	Screw (6)
24	Bracket, Hinge
26	Back, Module
27	Liner, Oven
28	Hinge, Door
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	Retainer, Seal
33	Screw
34	Vent, Lower Trim (Almond Model)
34	Vent, Lower Trim (Black)
34	Trim, Lower Vent (White Model)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
35	Tube, Vent
39	Screw
39	Cover, Cap Tube
43	Bottom, Oven
44	Probe Cover
44	WP3177991 Whirlpool Screw
45	Bracket, Conduit
46	WPL 3183752
46	Insulation, Oven
46	Screw
46	Insulation, Back
