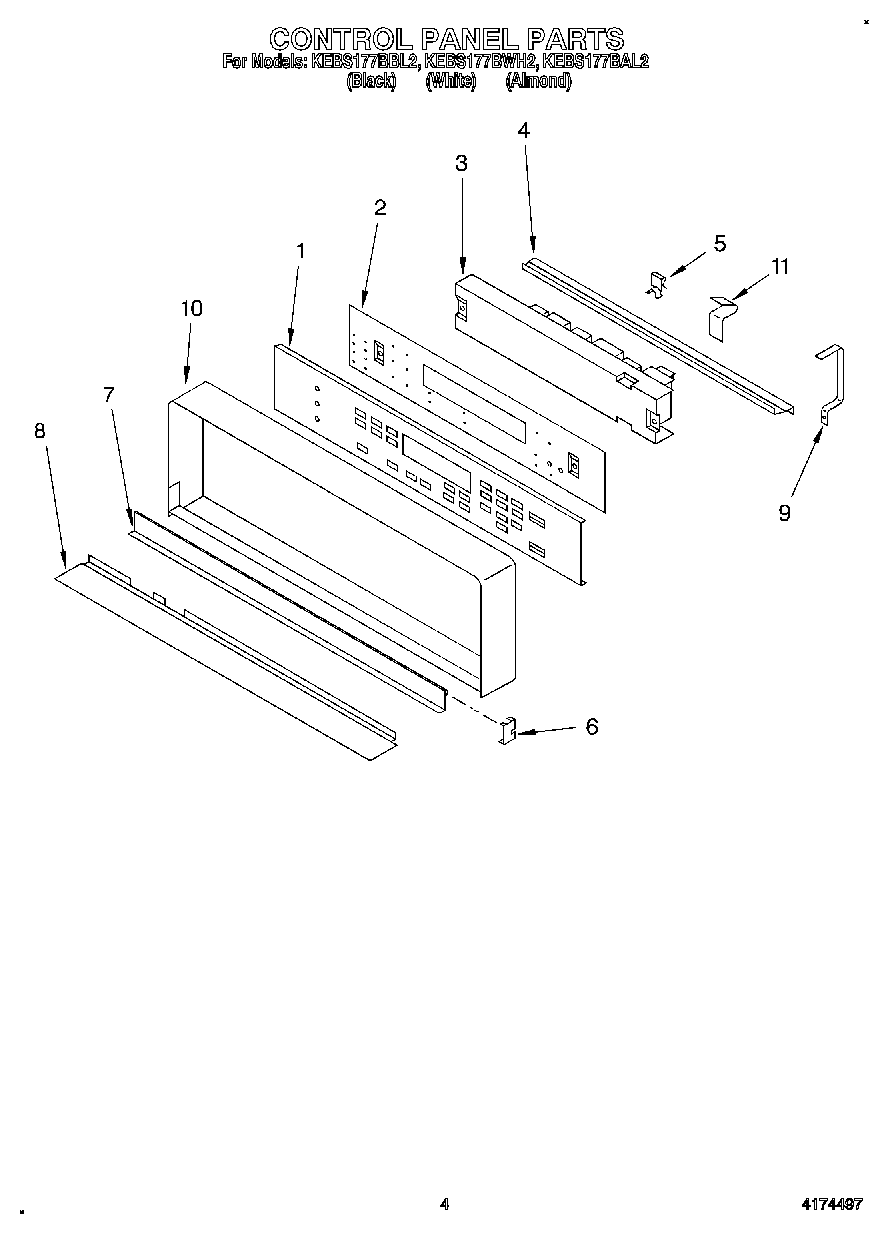

KEBS177BWH2 03 – CONTROL PANEL, LITERATURE

Products

Position	Product
	Installation Instructions
	WPL LIT3188199
	Tech Sheet
	Video, K/A T/C Ovens
	Guide, Auto Set
	Cookbook T/C Oven
1	Membrane, Switch (White, Model)
1	Membrane, Switch (Black Model)
1	Membrane, Switch (Almond, Model)
2	Bracket, Mounting Switch Membrane
3	Screw (2)
3	Microcomputer
4	Retainer, Bracket
5	Clip, Retainer (3)
6	Trim, Door (2)
7	Door, Latch Handle (Almond)
7	Door, Latch Handle (Black)
7	Door, Latch Handle (White)
7	Door, Latch Handle (Screw (2))
8	Trim, Panel
9	Screw (2)
9	Bracket (2)
10	Frame, Control Panel (Black Model)
10	Frame, Control Panel (Almond Model)
10	Frame, Control Panel (White Model)
11	Clip, Control Frame
11	Screw
11	Screw
