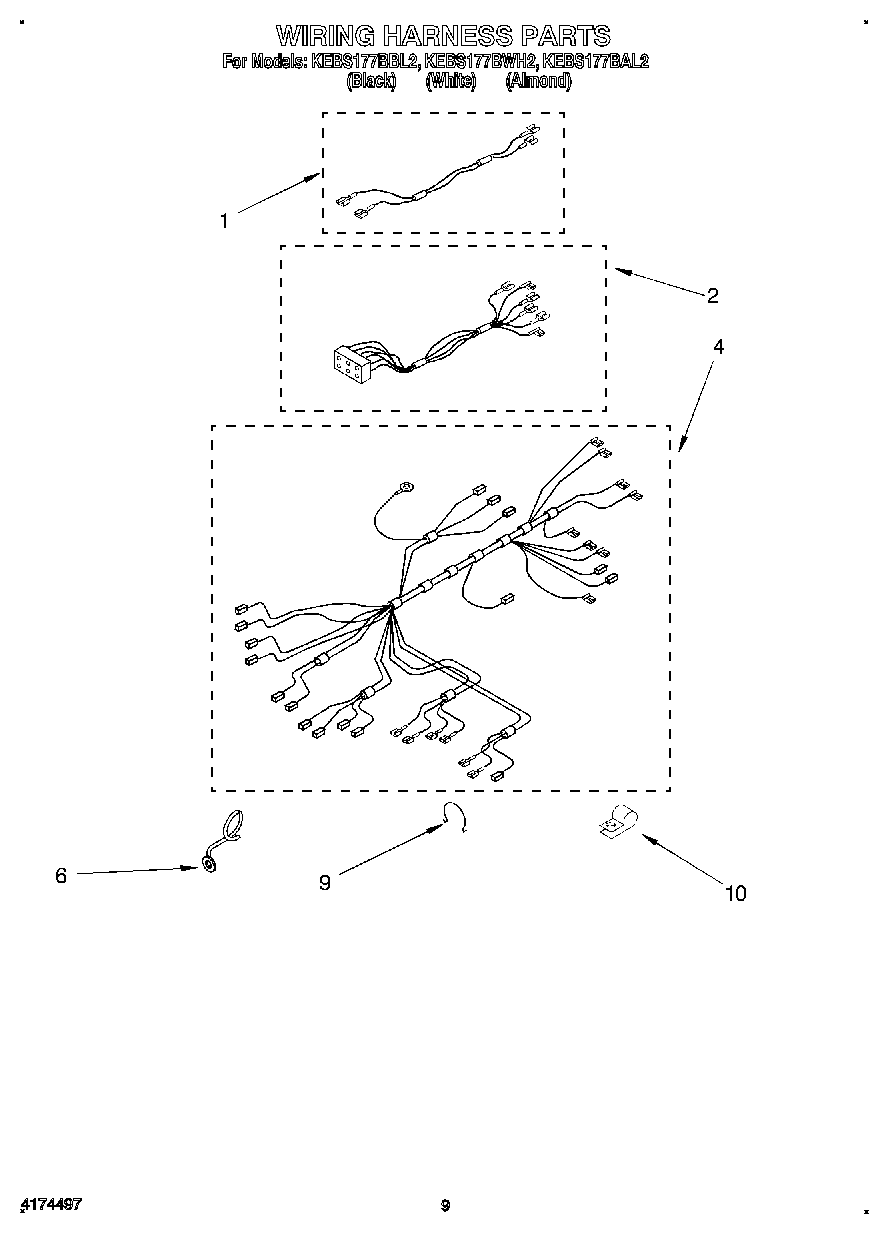

KEBS177BWH2 07 – WIRING HARNESS

Written by

Products

Position	Product
1	Wiring Harness (Door Switch) (Upper)
2	Harness, Wire (Latch Assy.)
4	Harness Wire Main
6	Standoff, Wire
9	16515 Whirlpool Clip
10	WP965173 Whirlpool Dishwasher Screw
10	Clamp, Wire
