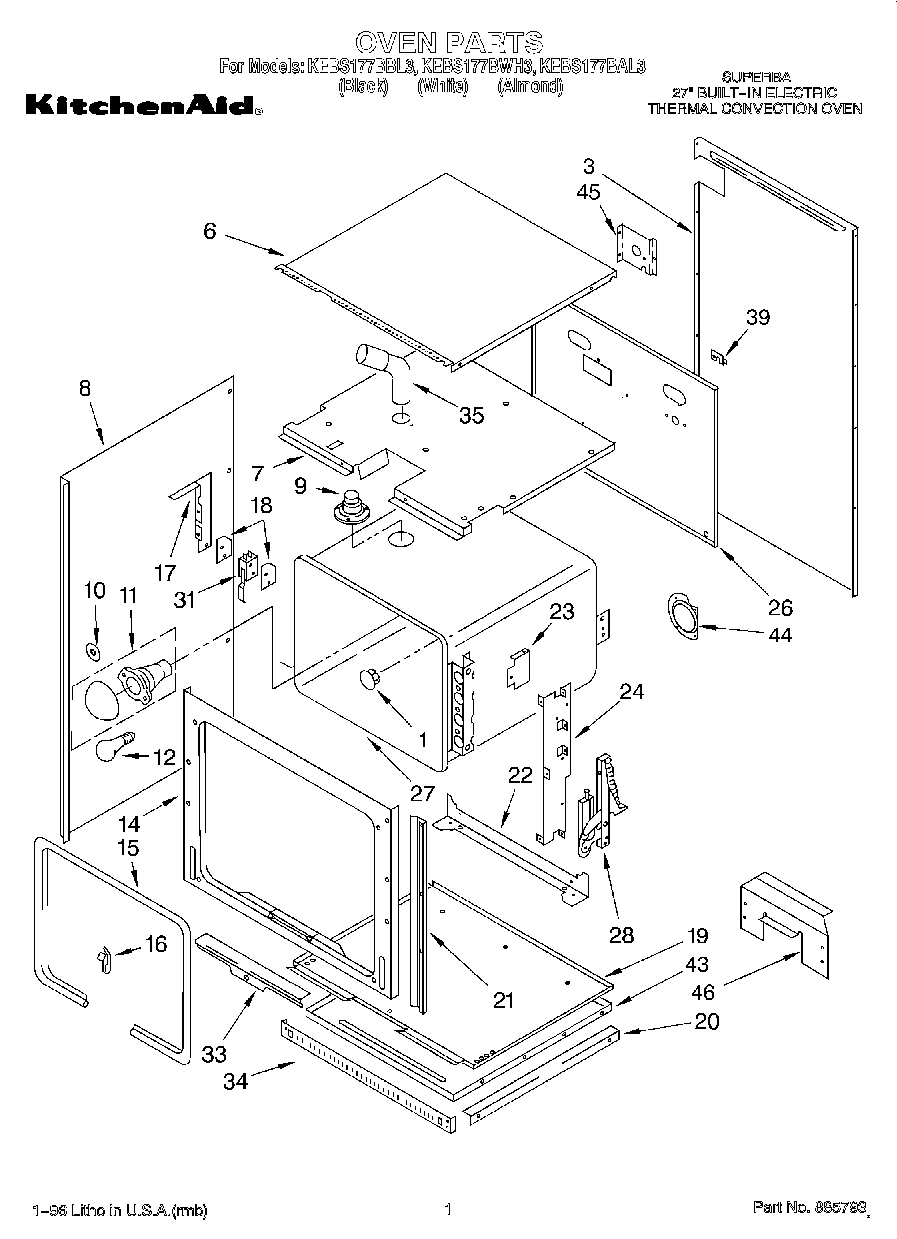

KEBS177BWH3 01 – OVEN

Products

Position	Product
1	Button, Plug
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Left Hand)
8	Side, Cabinet (R.H. & L.H.)
9	Screw (2)
9	Tube, Vent
10	WP3184533 Whirlpool Range Light Lens Gasket
11	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Side Trim, Door (2) (Almond Model)
21	Side Trim, Door (2) (White Model)
21	Trim, Door Side (2) (Black Model)
22	Support, Oven
23	Shield, Radiation
23	Screw (6)
24	Bracket, Hinge
26	Back, Module
27	Liner, Oven
28	Hinge, Door
31	Nut (2)
31	Switch, Door
31	Screw (2)
33	Screw
33	Retainer, Seal
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Black)
34	Trim, Lower Vent (White Model)
34	Vent, Lower Trim (Almond Model)
35	Tube, Vent
39	Screw
39	Cover, Cap Tube
43	Bottom, Oven
44	Probe Cover
44	WP3177991 Whirlpool Screw
45	Bracket, Conduit
46	Insulation, Back
46	Insulation, Oven
46	Screw
46	WPL 3183752
