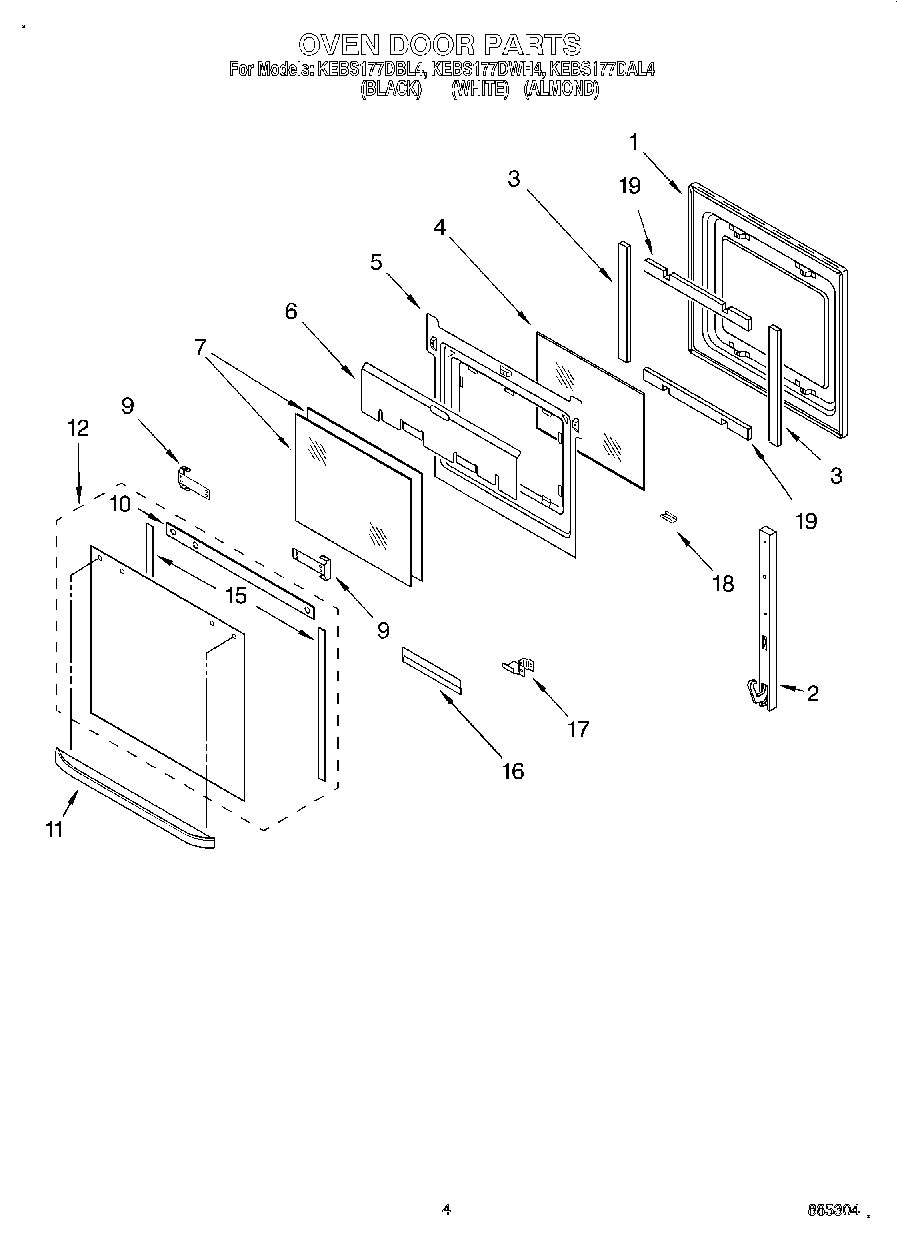

KEBS177DAL4 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4449743 Whirlpool Screw
2	WP4455524 Whirlpool Door Hinge
3	W11688413 Whirlpool Insulation
4	WP4449253 Whirlpool Glass Window
5	Retainer, Glass
6	Shield, Heat
7	WP4449257 Whirlpool Door Glass
9	Screw
9	Bracket, Handle
10	Seal, Top
11	Handle (White Model)
11	Handle (Black Model)
11	Door Handle (Almond Model)
12	Glass, Outer (Black Model)
12	Door Glass, Outer (Almond Model)
12	Glass, Outer (White Model)
15	Seal, Sides
16	Retainer, Glass
17	Retainer, Glass
17	WP4449809 Whirlpool Screw
18	Clip, Retainer (Black Model)
18	Clip, Retainer (White Model)
18	Retainer, Clip (Almond Model)
19	Insulation Top and Bottom
