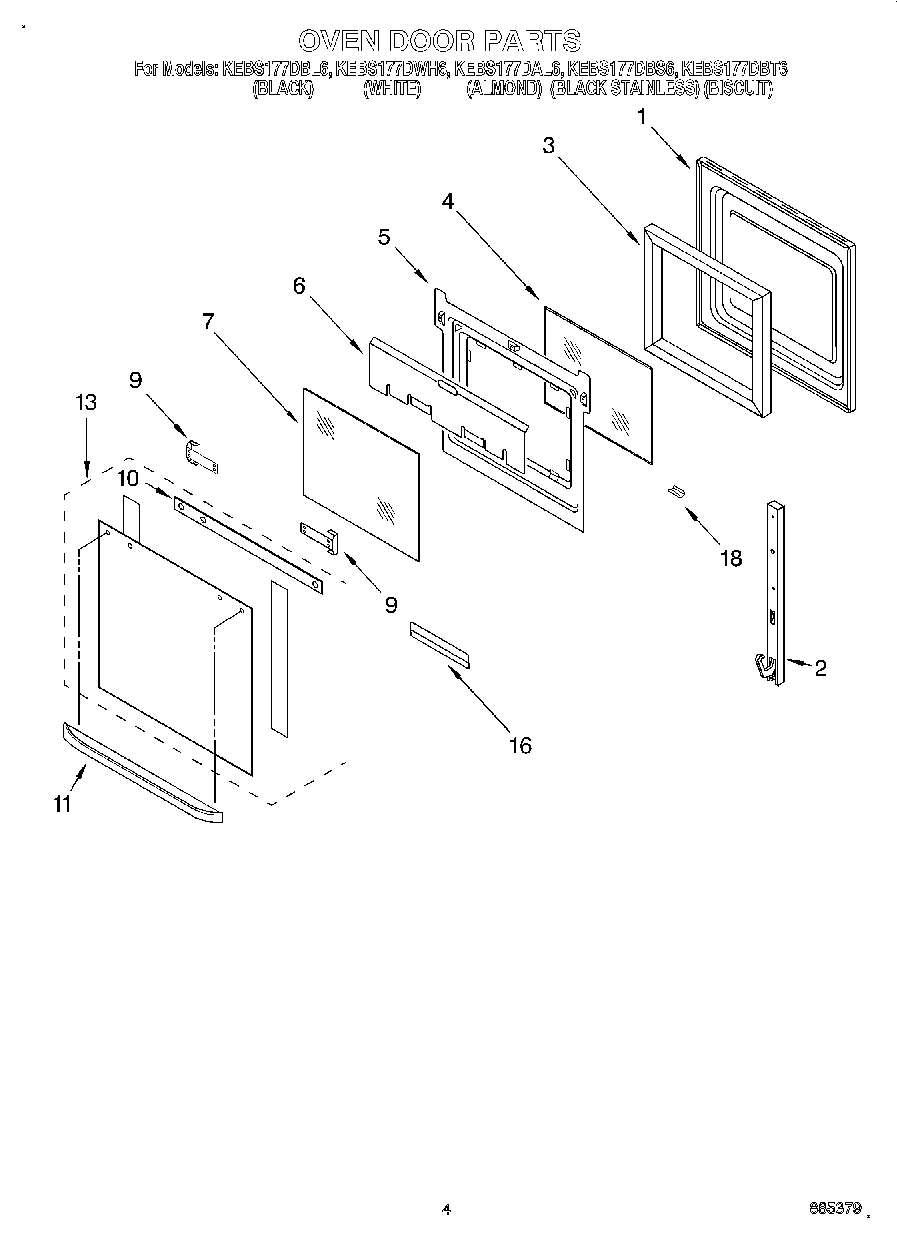

KEBS177DAL6 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4455523 Whirlpool Oven Door Hinge
2	WP4449743 Whirlpool Screw
3	Insulation, Sides
4	WP4449253 Whirlpool Glass Window
5	Retainer, Glass
6	Shield, Heat
7	WP4449257 Whirlpool Door Glass
9	Bracket, Handle
9	Screw
10	Seal, Top
11	Door Handle (Almond Model)
11	Handle (White Model)
11	Door Handle (Biscuit)
11	Handle (Black Model)
13	Door Glass, Assy (Biscuit)
13	Door Glass, Assy (Black-Stainless)
13	Door Glass, Assy (White Model)
13	Door Glass, Assy (Black Model)
13	Door Glass, Assy (Almond)
16	Retainer, Glass
16	WP4449809 Whirlpool Screw
18	Clip, Retainer (Black Model)
18	Clip, Retainer (White Model)
18	RETAINER,GLASS CLIP (BISCUIT)
18	Retainer, Clip (Almond Model)
