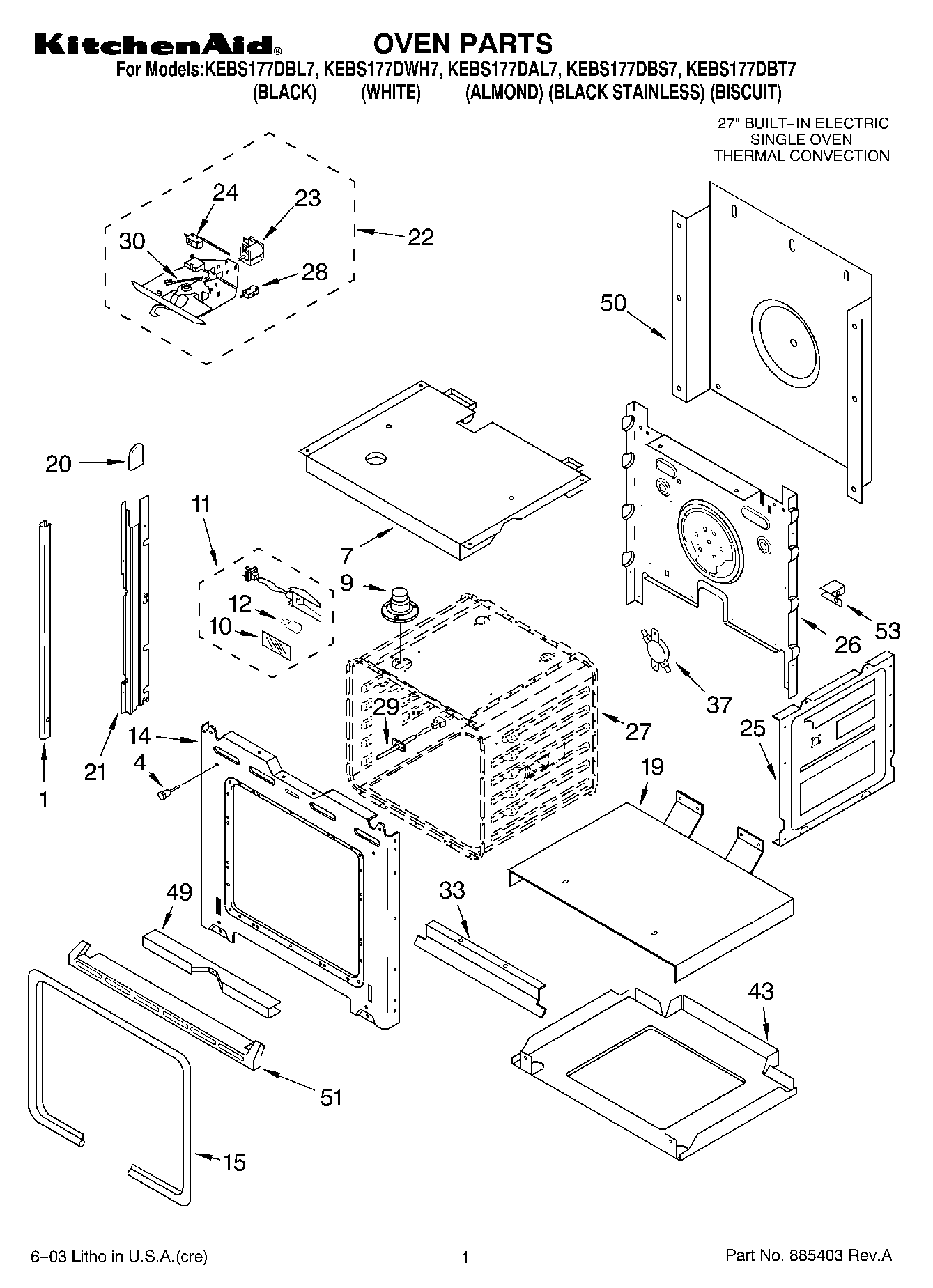

KEBS177DAL7 01 – OVEN PARTS

KEBS177DAL7 01 – OVEN PARTS

Written by

in

KEBS177DAL7 01 – OVEN PARTS

Products

PositionProduct
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1Trim, Side (LH Biscuit)
1Trim, Side (RH Biscuit)
1Trim, Side (LH White Screw)
1Trim, Side (Right Hand) (Almond Model)
1Trim, Side (White, Right)
1Trim, Side (RH Black)
1Trim, Side (White)
1WP8281236 Whirlpool Screw
1Trim, Side (Left Hand) (Almond)
1Trim, Side (LH Black)
44448520 Whirlpool Oven Bumper
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Screw
14Frame, Front
14WP4450118 Whirlpool Nut
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21814372 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814371 Whirlpool Oven Rail Mount
22Latch Assembly
23Solenoid
24Micro Switch N.C.
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not serviceable)
28Microswitch
29Sensor
30Spring, Latch
33Deflector, Vent
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (Biscuit)
51Trim, Bottom (Almond Model)
51Trim, Bottom (Black Model)
51Trim, Bottom (White Model)
53WPL 4449315
53WPL 4449845
53WPL 4450364
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
