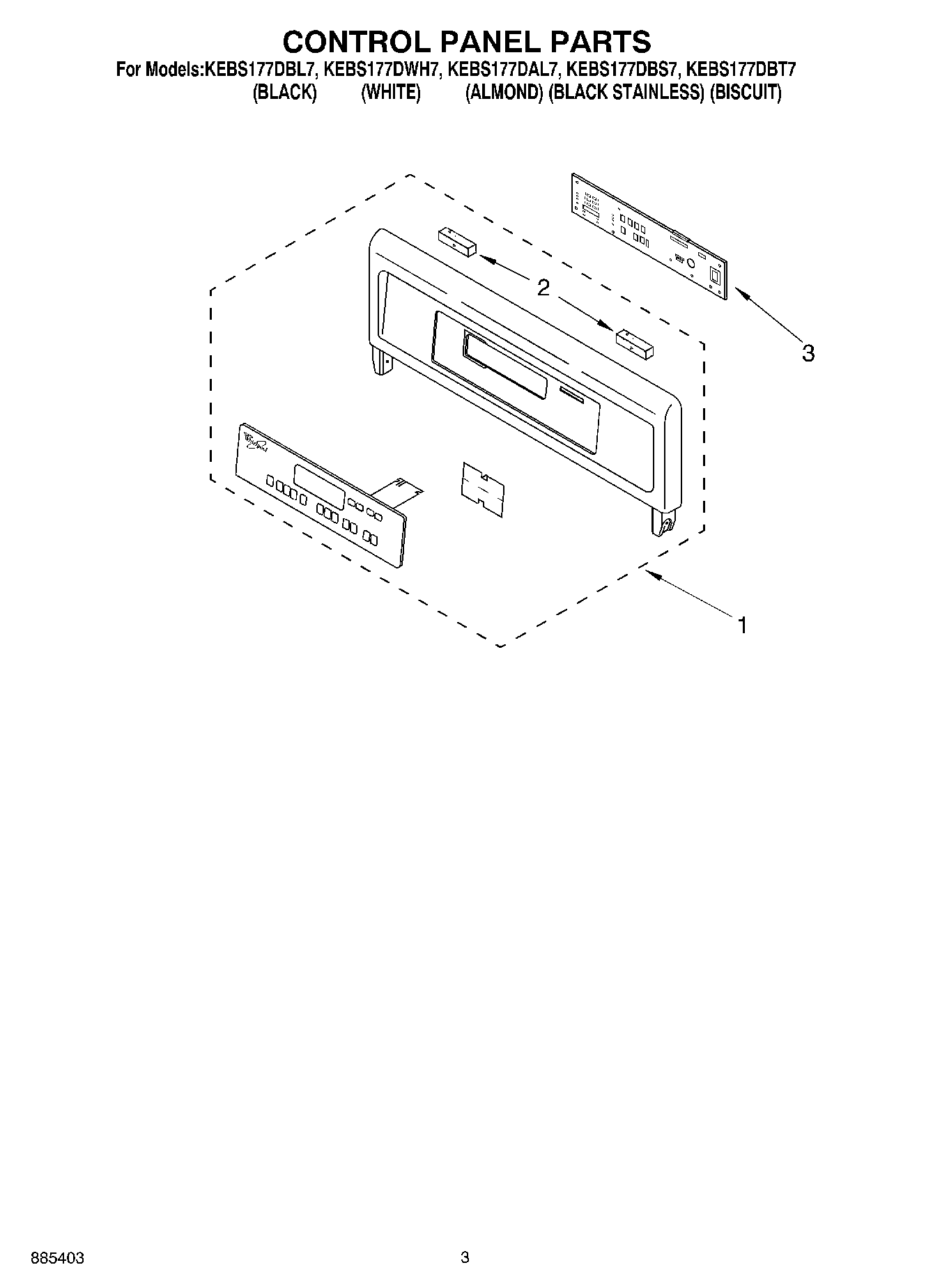

KEBS177DAL7 02 – CONTROL PANEL PARTS

Products

PositionProduct
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1Control Panel Assy. W/Membrane Switch (Biscuit)
1Control Panel Assy. W/Membrane Switch (Almond)
1Control Panel Assy. W/Membrane Switch (White)
1Control Panel Assy. W/Membrane Switch (Black)
2Gasket, Control Panel
3Safer Cooking Tips
3Microcomputer
3Literature Parts (Tech Sheet)
3Literature Parts (Installation Instructions)
3Literature Parts (Easy Set Guide)
3WP4449745 Whirlpool Screw
3Use & Care Guide (Oven)
3Literature Parts (Cookbook (T/C Oven))
3LITERATURE PARTS
