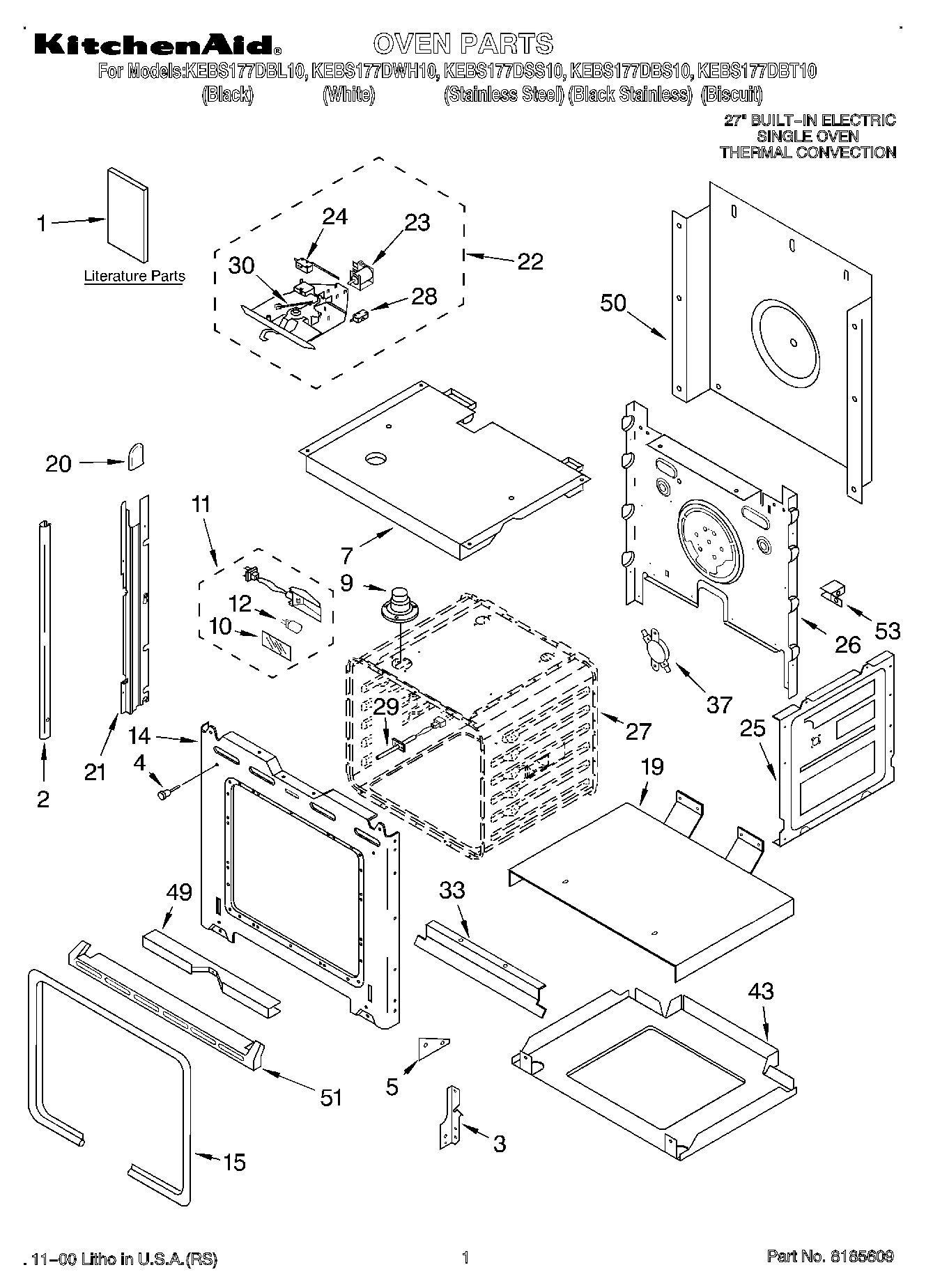

KEBS177DBL10 01 – OVEN, LITERATURE

KEBS177DBL10 01 – OVEN, LITERATURE

Written by

in

KEBS177DBL10 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation/ Undercounter)
1Literature Parts (Easy Set Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Installation/ MWO Trim Kit)
1Literature Parts (Tech Sheet)
1Literature Parts (Use & Care Guide)
2W10144984 Whirlpool Trim
2WPW10144983 Whirlpool Trim
2Trim, Side (Right Hand) (Almond Model)
2Trim, Side (Left Hand) (Almond)
2Trim, Side (RH Biscuit)
2Trim, Side (LH Biscuit)
2Trim, Side (White, Right)
2Trim, Side (LH Black)
2WP8281236 Whirlpool Screw
2Trim, Side (White)
2Trim, Side (RH Black)
2Trim, Side (LH White Screw)
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14WP4450118 Whirlpool Nut
14Screw
14Frame, Front
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21814371 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814372 Whirlpool Oven Rail Mount
22Latch Assembly
23Solenoid
24Microswitch N.C.
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Service
28Microswitch
29WPW10131825 Whirlpool Oven Temperature Sensor
30Spring, Latch
33W10145009 Whirlpool Vent Deflector
33Deflector, Vent
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51Screw, (2)
51WPL 4448476
51WPL 4452414
51Tri
51WPL 4455146
53WPL 4450364
53WPL 4449845
53WPL 4449315
