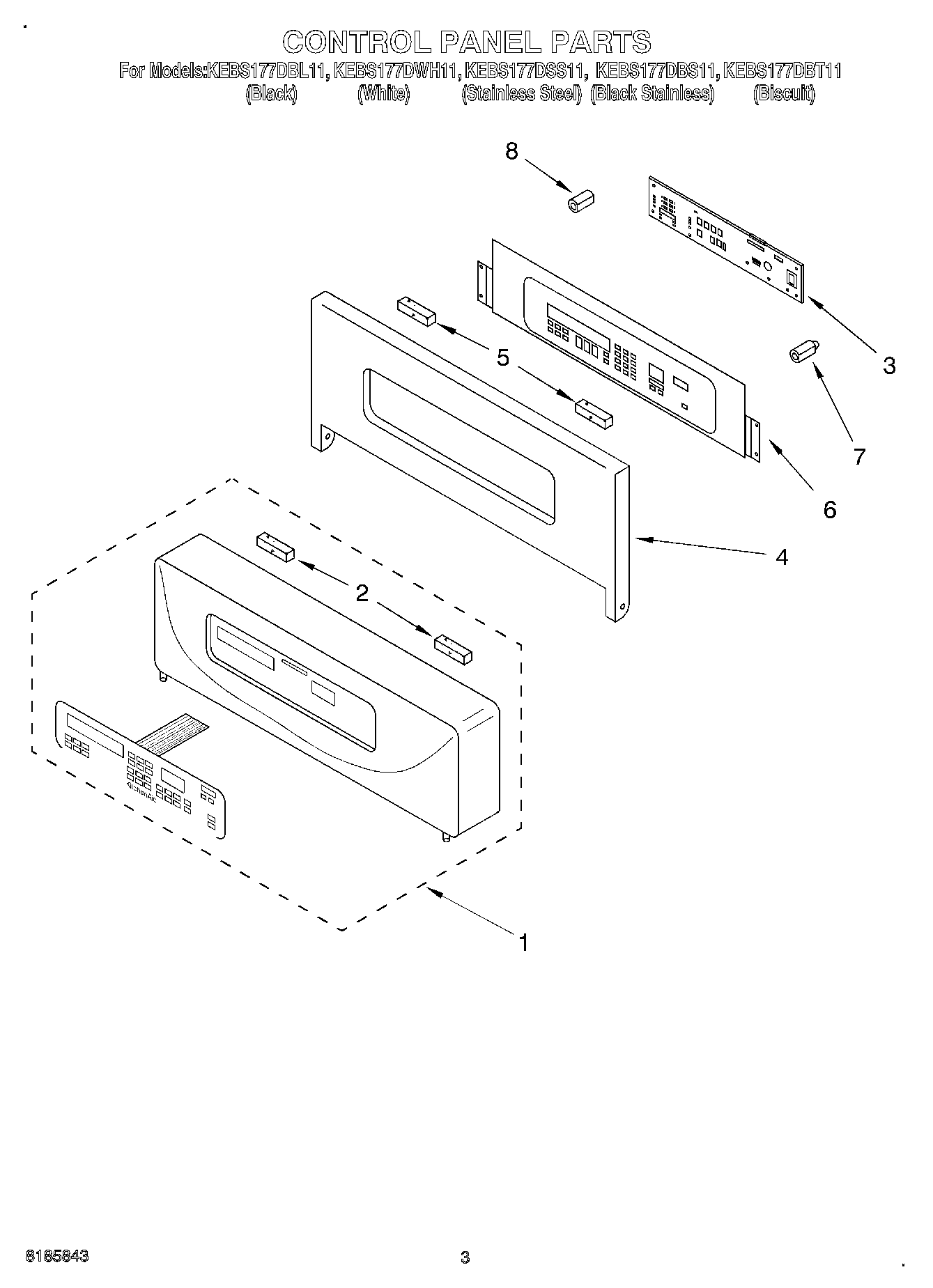

KEBS177DBL11 02 – CONTROL PANEL

Products

Position	Product
1	Control Panel Assy W/Membrane Switch (Black & BS Model)
1	Control Panel Assy W/Membrane Switch (White Model)
1	Control Panel Assy W/Membrane Switch (Biscuit Model)
1	WP3400832 Whirlpool Screw
2	Gasket, Control Panel
3	Microcomputer
3	WP4449745 Whirlpool Screw
4	Panel, Control
5	Spacer, Foam
6	Switch, Membrane (Stainless Steel)
7	Insulation, Board
8	Insulation, Board Support
