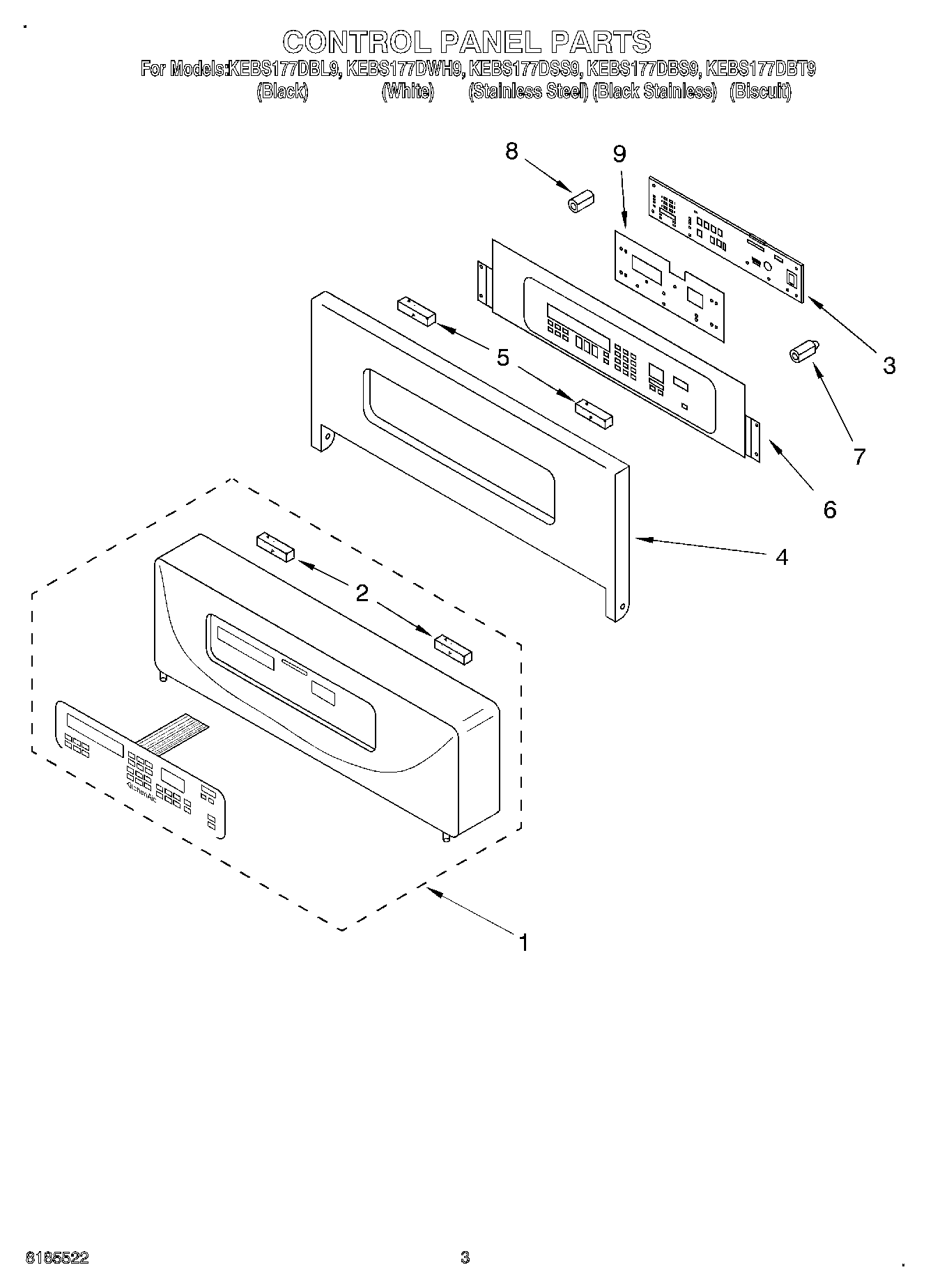

KEBS177DBL9 02 – CONTROL PANELadmin2025-04-26T12:36:00+00:00KEBS177DBL9 02 – CONTROL PANEL ProductsPositionProduct1Control Panel Assy W/Membrane Switch (Black & BS Model)1Control Panel Assy W/Membrane Switch (White Model)1Control Panel Assy W/Membrane Switch (Biscuit Model)1WP3400832 Whirlpool Screw2Gasket, Control Panel3Microcomputer3WP4449745 Whirlpool Screw4Panel, Control5Spacer, Foam6Switch, Membrane (Stainless Steel)7Insulation, Board8Insulation, Board Support9Insulator, Dialectric
