KEBS177DBS11 03 – OVEN DOOR
Written by
in

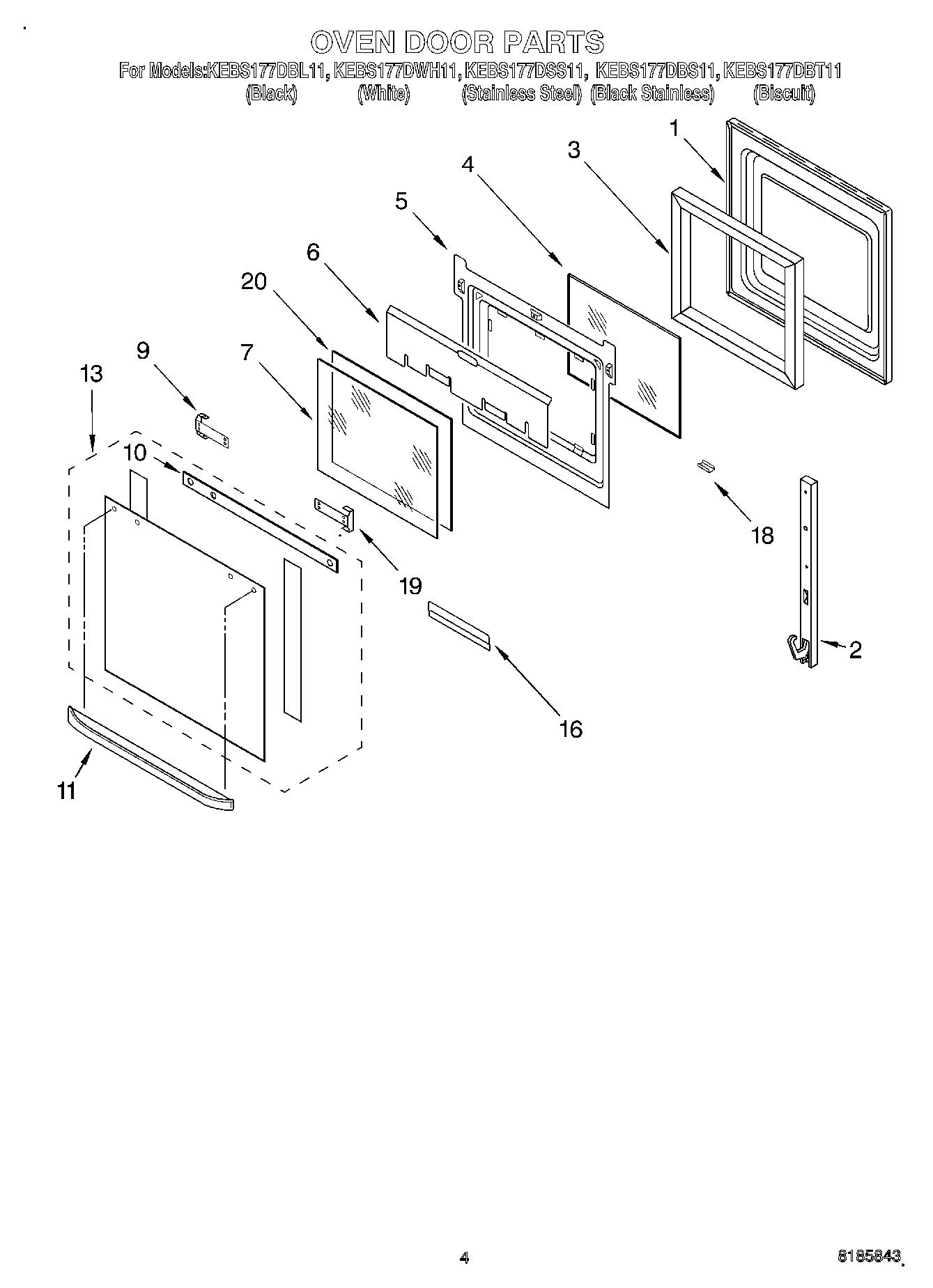

KEBS177DBS11 03 – OVEN DOOR
Products
Position
Product
1
Door Liner
2
WP4455525 Whirlpool Oven Door Hinge
2
WP4455524 Whirlpool Door Hinge
2
WP4449743 Whirlpool Screw
3
Insulation, Sides
4
WP4449253 Whirlpool Glass Window
5
Retainer, Glass
6
Shield, Heat
7
WP4449257 Whirlpool Door Glass
9
Bracket, Handle
9
Screw
10
Seal, Top
11
Door Handle (Biscuit)
11
Door Handle (Stainless Steel)
11
Handle (Black Model)
11
Handle (White Model)
13
Door Glass, Assy (Black-Stainless)
13
Door Glass, Assy (Biscuit)
13
Door Glass, Assy (White Model)
13
Door Glass, Assy (Black Model)
13
WP4452315 Whirlpool Door Glass
16
Retainer, Glass
16
WP3400832 Whirlpool Screw
18
Clip, Retainer (Black Model)
18
Clip, Retainer (White Model)
18
RETAINER,GLASS CLIP (BISCUIT)
19
4455803 Whirlpool Oven Bracket
19
Bracket, Handle Stainless Steel Model (Left Hand)
20
Glass, Inner
←
