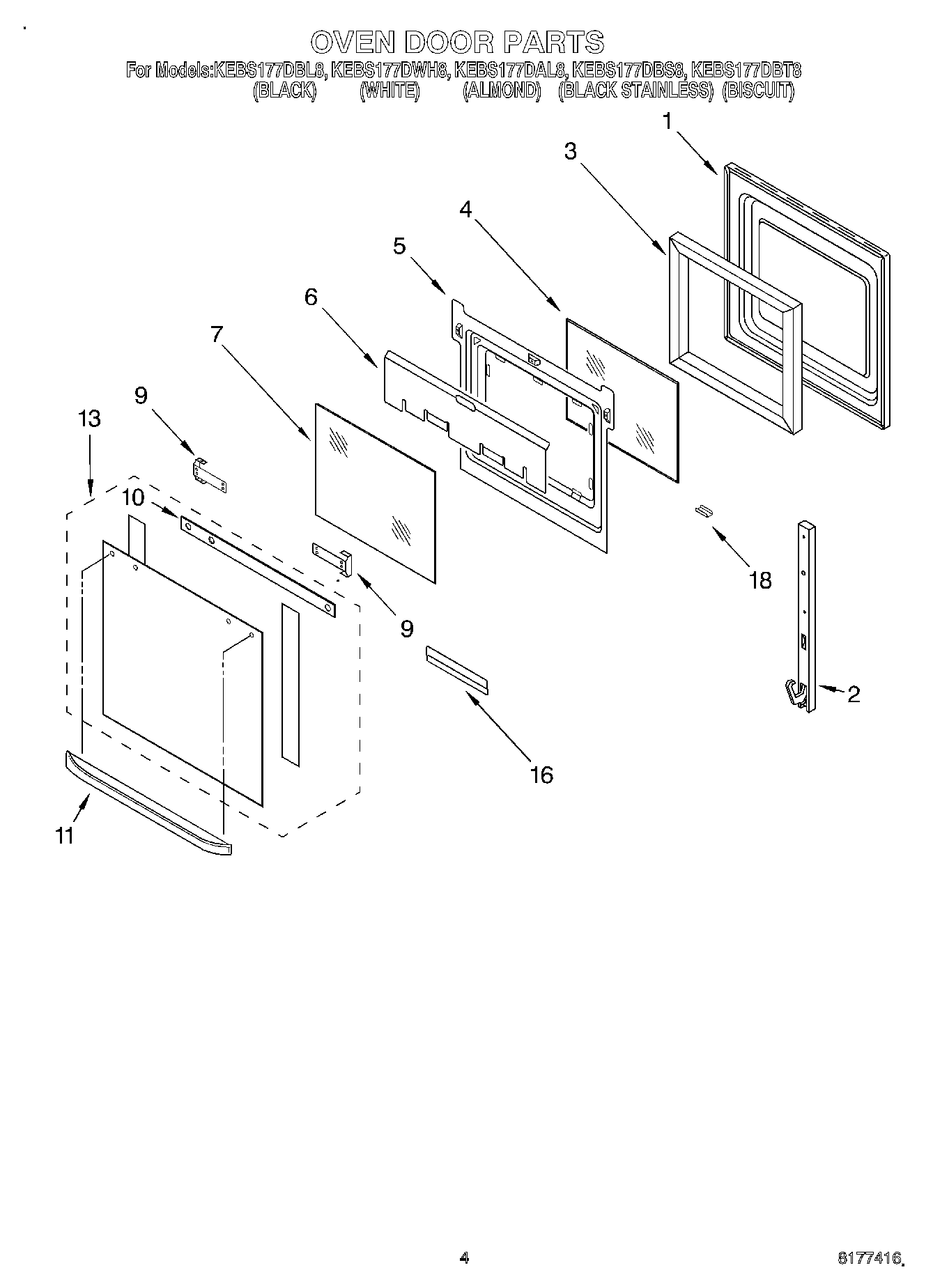

KEBS177DBS8 03 – OVEN DOOR
Written by
in
KEBS177DBS8 03 – OVEN DOOR
Products
Position
Product
1
Door Liner
2
WP4455525 Whirlpool Oven Door Hinge
2
WP4455523 Whirlpool Oven Door Hinge
2
WP4449743 Whirlpool Screw
3
Insulation, Sides
4
WP4449253 Whirlpool Glass Window
5
Retainer, Glass
6
Shield, Heat
7
WP4449257 Whirlpool Door Glass
9
Bracket, Handle
9
Screw
10
Seal, Top
11
Door Handle (Biscuit)
11
Handle (White Model)
11
Handle (Black Model)
11
Door Handle (Almond Model)
13
Door Glass, Assy (Almond)
13
Door Glass, Assy (Biscuit)
13
Door Glass, Assy (White Model)
13
Door Glass, Assy (Black Model)
13
Door Glass, Assy (Black-Stainless)
16
Retainer, Glass
16
WP4449809 Whirlpool Screw
18
Clip, Retainer (Black Model)
18
Clip, Retainer (White Model)
18
RETAINER,GLASS CLIP (BISCUIT)
18
Retainer, Clip (Almond Model)
←
