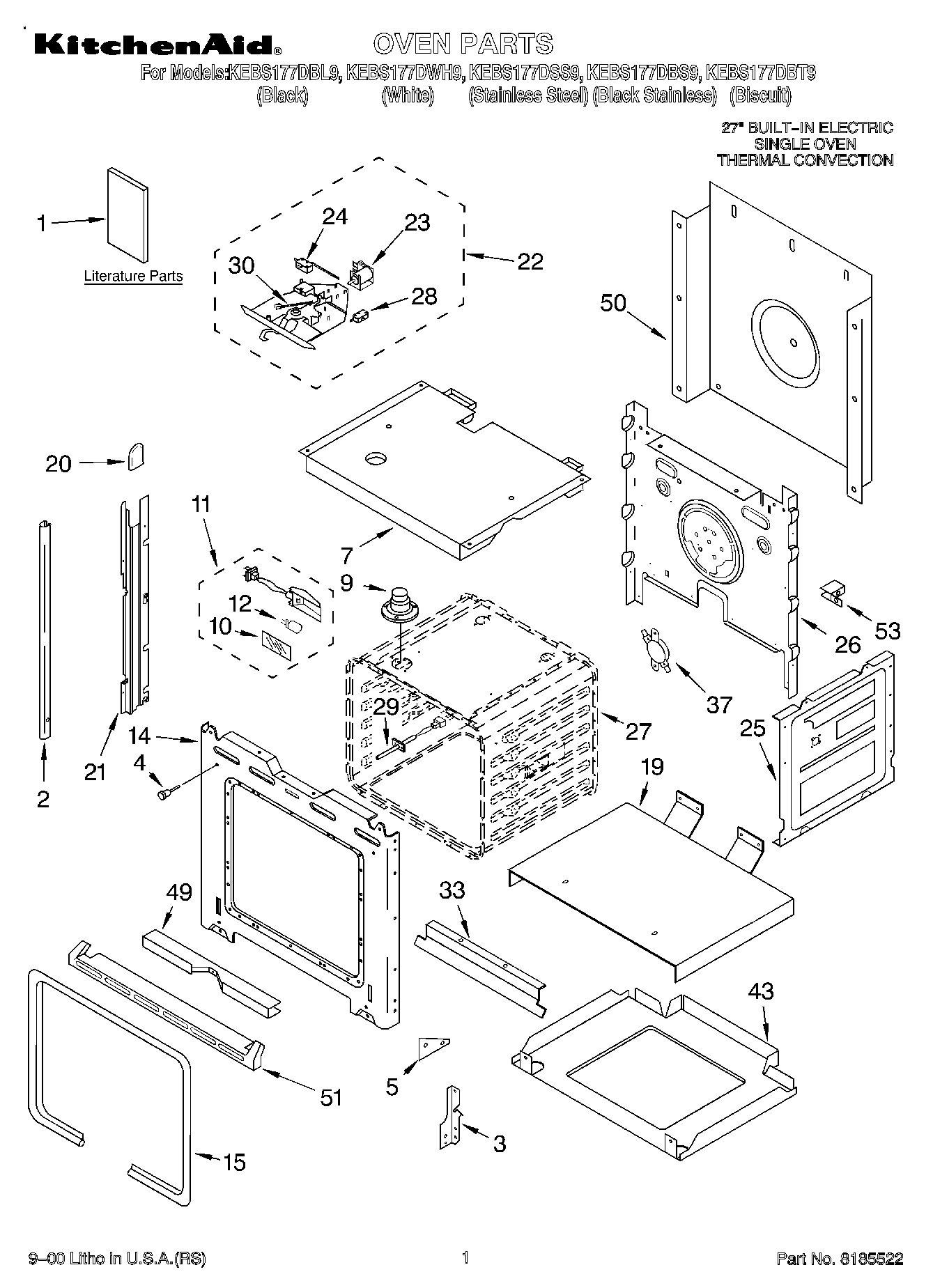

KEBS177DBS9 01 – OVEN, LITERATURE
Written by
in
KEBS177DBS9 01 – OVEN, LITERATURE
Products
Position
Product
1
Safer Cooking Tips
1
Literature Parts (Cookbook (T/C Oven))
1
Literature Parts (Use & Care Guide)
1
Literature Parts (Tech Sheet)
1
Literature Parts (Installation/ MWO Trim Kit)
1
Literature Parts (Installation Instructions)
1
Literature Parts (Easy Set Guide)
1
Literature Parts (Installation/ Undercounter)
2
W10144984 Whirlpool Trim
2
Trim, Side (Right Hand) (Almond Model)
2
WPW10144983 Whirlpool Trim
2
Trim, Side (White)
2
Trim, Side (LH White Screw)
2
Trim, Side (LH Black)
2
Trim, Side (White, Right)
2
Trim, Side (RH Black)
2
WP8281236 Whirlpool Screw
2
Trim, Side (Left Hand) (Almond)
2
Trim, Side (LH Biscuit)
2
Trim, Side (RH Biscuit)
3
Reciever, Hinge (Left Hand)
3
Reciever, Hinge (Right Hand)
4
4448520 Whirlpool Oven Bumper
5
WP4455509 Whirlpool Support Bracket
7
Top, Chassis
9
W10861715 Whirlpool Vent Tube
10
Lens, Light
11
4449748 Whirlpool Oven Screw
11
WP4448972 Whirlpool Oven Light
12
WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14
WP4450118 Whirlpool Nut
14
Frame, Front
14
Screw
15
WP4455381 Whirlpool Door Gasket
19
Support, Insulation
20
Cap, Spacer
21
WP4448444 Whirlpool Grommet
21
814372 Whirlpool Oven Rail Mount
21
814371 Whirlpool Oven Rail Mount
22
Latch Assembly
23
Solenoid
24
Microswitch N.C.
25
Side, Chassis (R.H. & L.H.)
26
Back, Chassis
27
WPL ARI83174A2
28
Microswitch
29
WPW10131825 Whirlpool Oven Temperature Sensor
30
Spring, Latch
33
W10145009 Whirlpool Vent Deflector
33
Deflector, Vent
37
WP9759242 Whirlpool Thermostat
43
Base, Chassis
49
WP4449154 Whirlpool Screw
49
WP4448933 Whirlpool Retainer
50
WP4449809 Whirlpool Screw
50
WP4451747 Whirlpool Rear Cover
51
Screw, (2)
51
WPL 4455146
51
WPL 4452414
51
Tri
51
WPL 4448476
53
WPL 4449315
53
WPL 4450364
53
WPL 4449845
←
