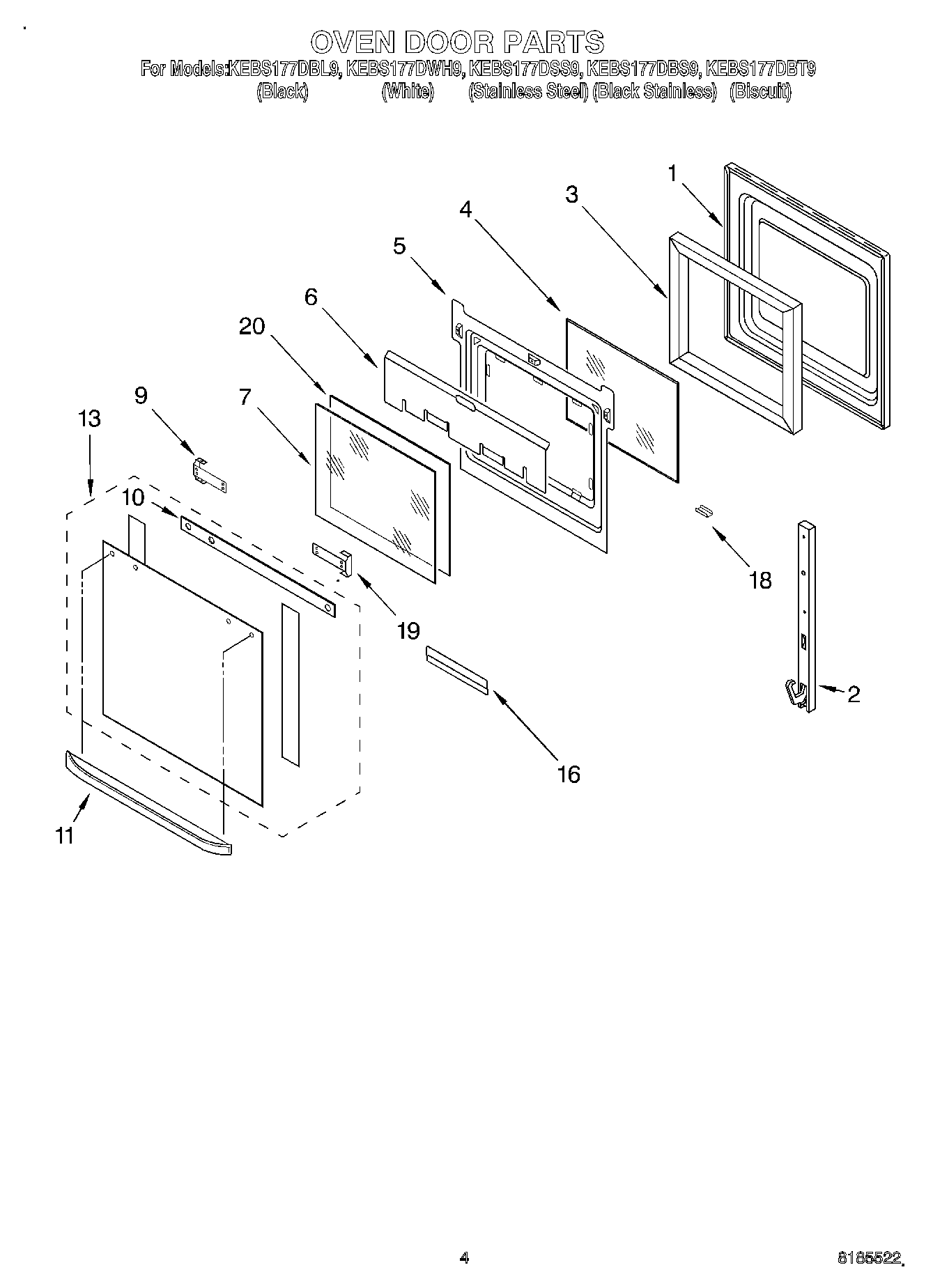

KEBS177DBS9 03 – OVEN DOOR

KEBS177DBS9 03 – OVEN DOOR

Written by

in

KEBS177DBS9 03 – OVEN DOOR

Products

PositionProduct
1Door Liner
2WP4455525 Whirlpool Oven Door Hinge
2WP4455524 Whirlpool Door Hinge
2WP4449743 Whirlpool Screw
3Insulation, Sides
4WP4449253 Whirlpool Glass Window
5Retainer, Glass
6Shield, Heat
7WP4449257 Whirlpool Door Glass
9Bracket, Handle
9Screw
10Seal, Top
11Door Handle (Biscuit)
11Door Handle (Stainless Steel)
11Door Handle (Almond Model)
11Handle (Black Model)
11Handle (White Model)
13Door Glass, Assy (Biscuit)
13Door Glass, Assy (Almond)
13Door Glass, Assy (White Model)
13Door Glass, Assy (Black Model)
13WP4452315 Whirlpool Door Glass
13Door Glass, Assy (Black-Stainless)
16WP4449809 Whirlpool Screw
16Retainer, Glass
18RETAINER,GLASS CLIP (BISCUIT)
18Clip, Retainer (White Model)
18Clip, Retainer (Black Model)
18Retainer, Clip (Almond Model)
19Bracket, Handle Stainless Steel Model (Left Hand)
194455803 Whirlpool Oven Bracket
20Glass, Inner
