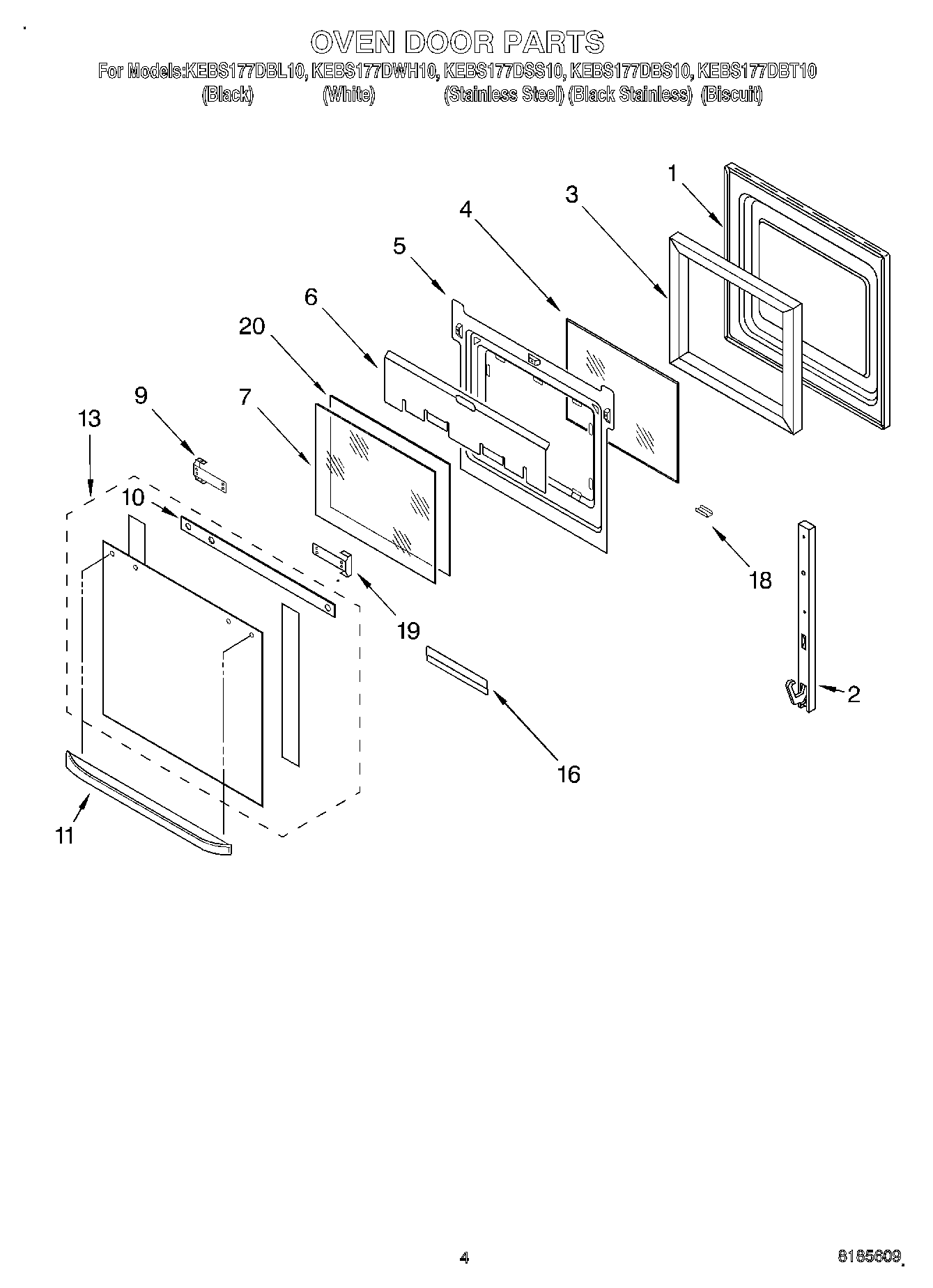

KEBS177DBT10 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4449743 Whirlpool Screw
2	WP4455524 Whirlpool Door Hinge
3	Insulation, Sides
4	WP4449253 Whirlpool Glass Window
5	Retainer, Glass
6	Shield, Heat
7	WP4449257 Whirlpool Door Glass
9	Bracket, Handle
9	Screw
10	Seal, Top
11	Door Handle (Almond Model)
11	Handle (White Model)
11	Handle (Black Model)
11	Door Handle (Stainless Steel)
11	Door Handle (Biscuit)
13	WP4452315 Whirlpool Door Glass
13	Door Glass, Assy (Almond)
13	Door Glass, Assy (Black Model)
13	Door Glass, Assy (White Model)
13	Door Glass, Assy (Biscuit)
13	Door Glass, Assy (Black-Stainless)
16	WP3400832 Whirlpool Screw
16	Retainer, Glass
18	Clip, Retainer (White Model)
18	RETAINER,GLASS CLIP (BISCUIT)
18	Retainer, Clip (Almond Model)
18	Clip, Retainer (Black Model)
19	4455803 Whirlpool Oven Bracket
19	Bracket, Handle Stainless Steel Model (Left Hand)
20	Glass, Inner
