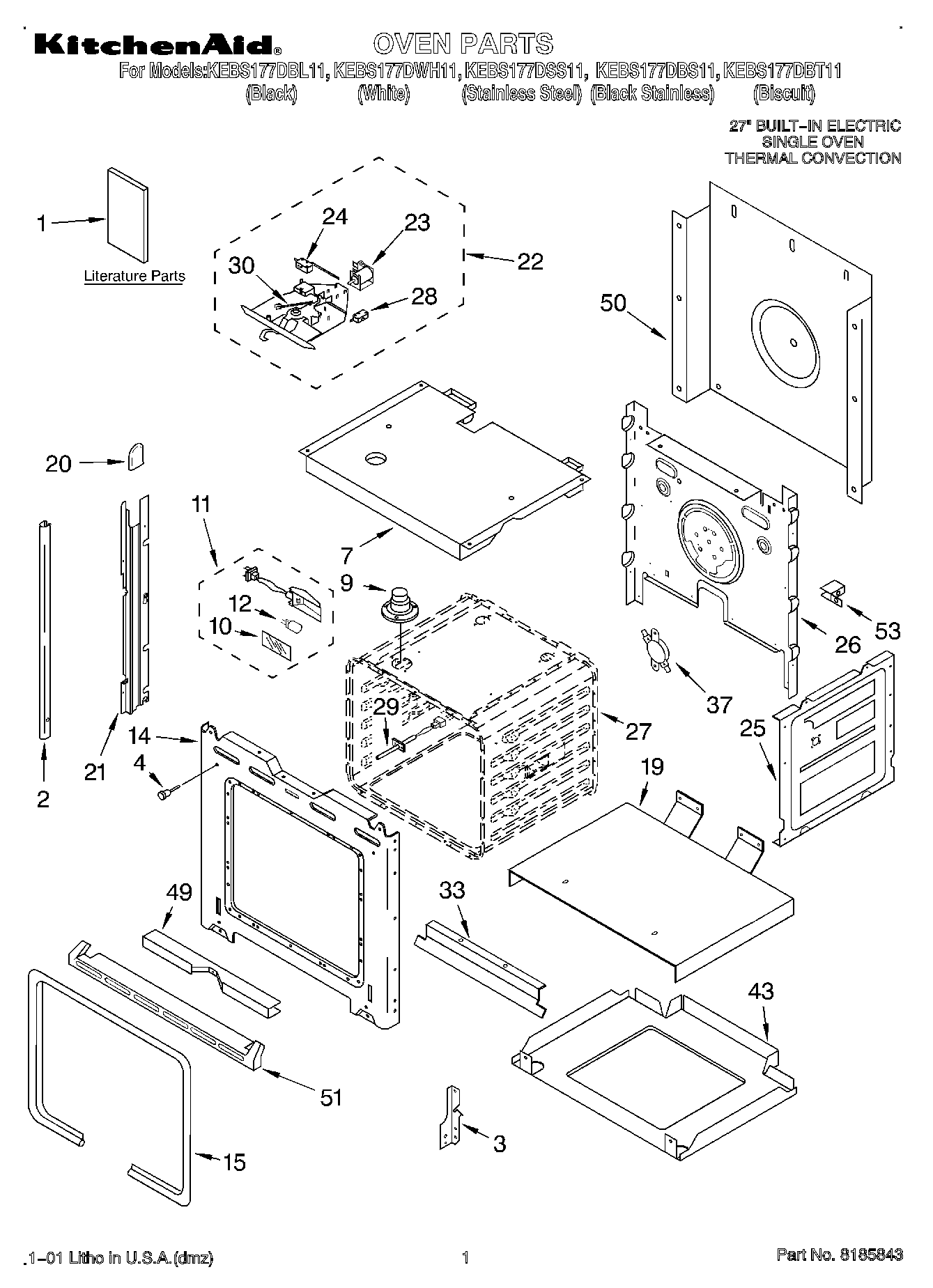

KEBS177DBT11 01 – OVEN, LITERATURE

KEBS177DBT11 01 – OVEN, LITERATURE

Written by

in

KEBS177DBT11 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation/ MWO Trim Kit)
1Literature Parts (Installation Instructions)
1Literature Parts (Easy Set Guide)
1Literature Parts (Installation/ Undercounter)
1Literature Parts (Use & Care Guide)
1Literature Parts (Tech Sheet)
2Trim, Side (White, Right)
2WPW10144983 Whirlpool Trim
2Trim, Side (LH Biscuit)
2Trim, Side (RH Biscuit)
2WP8281236 Whirlpool Screw
2W10144984 Whirlpool Trim
2Trim, Side (White)
2Trim, Side (RH Black)
2Trim, Side (LH Black)
2Trim, Side (LH White Screw)
3Reciever, Hinge (Right Hand)
3Reciever, Hinge (Left Hand)
44448520 Whirlpool Oven Bumper
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21814371 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814372 Whirlpool Oven Rail Mount
22Latch Assembly
23Solenoid
24Microswitch N.C.
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
28Microswitch
29WPW10131825 Whirlpool Oven Temperature Sensor
30Spring, Latch
33Deflector, Vent
33W10145009 Whirlpool Vent Deflector
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51Screw, (2)
51WPL 4452414
51WPL 4455146
51WPL 4448476
51Tri
53WPL 4450364
53WPL 4449845
53WPL 4449315
