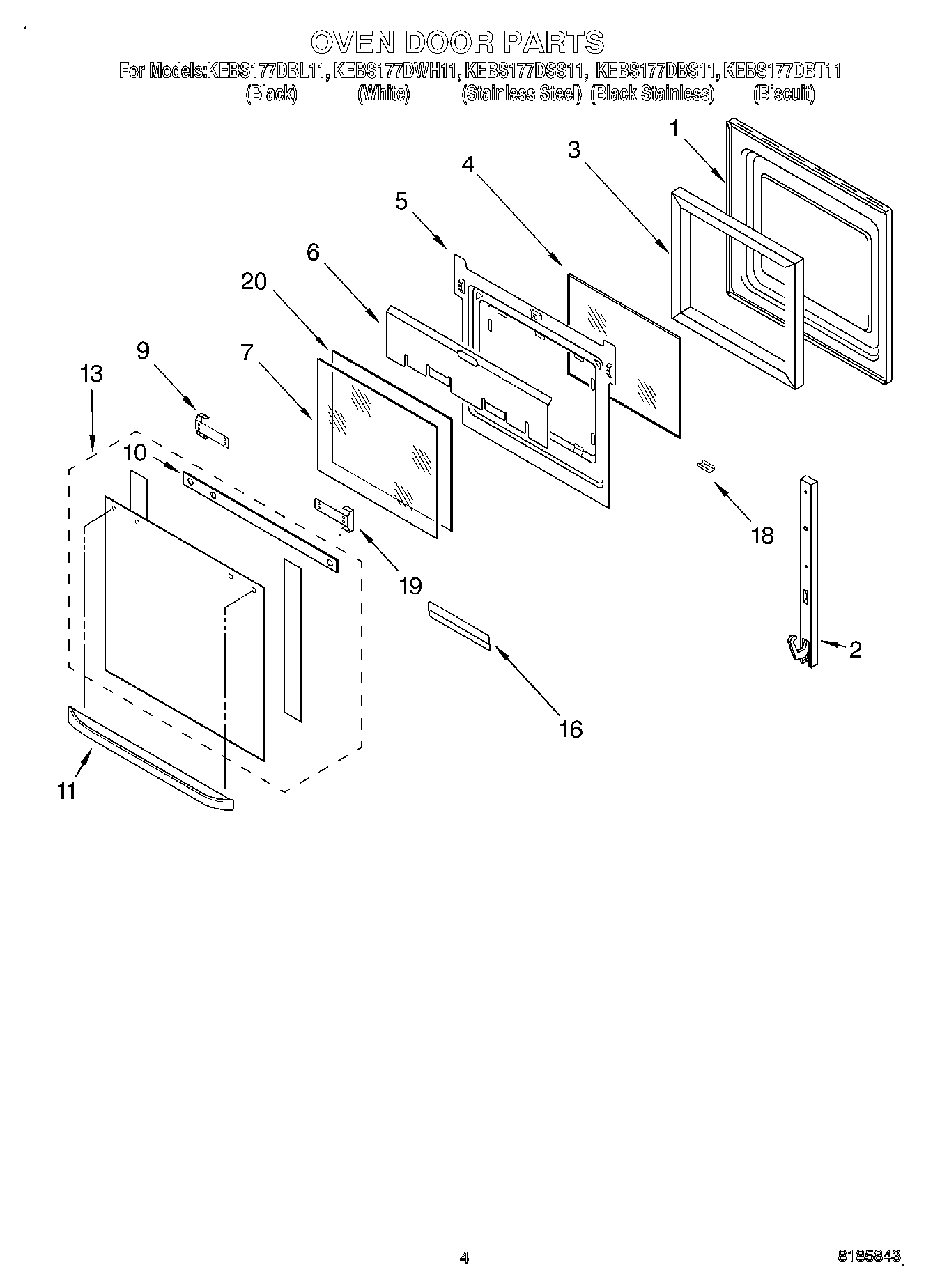

KEBS177DBT11 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4455524 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	Insulation, Sides
4	WP4449253 Whirlpool Glass Window
5	Retainer, Glass
6	Shield, Heat
7	WP4449257 Whirlpool Door Glass
9	Bracket, Handle
9	Screw
10	Seal, Top
11	Door Handle (Biscuit)
11	Door Handle (Stainless Steel)
11	Handle (Black Model)
11	Handle (White Model)
13	Door Glass, Assy (Black-Stainless)
13	Door Glass, Assy (Biscuit)
13	Door Glass, Assy (White Model)
13	Door Glass, Assy (Black Model)
13	WP4452315 Whirlpool Door Glass
16	Retainer, Glass
16	WP3400832 Whirlpool Screw
18	Clip, Retainer (Black Model)
18	Clip, Retainer (White Model)
18	RETAINER,GLASS CLIP (BISCUIT)
19	4455803 Whirlpool Oven Bracket
19	Bracket, Handle Stainless Steel Model (Left Hand)
20	Glass, Inner
