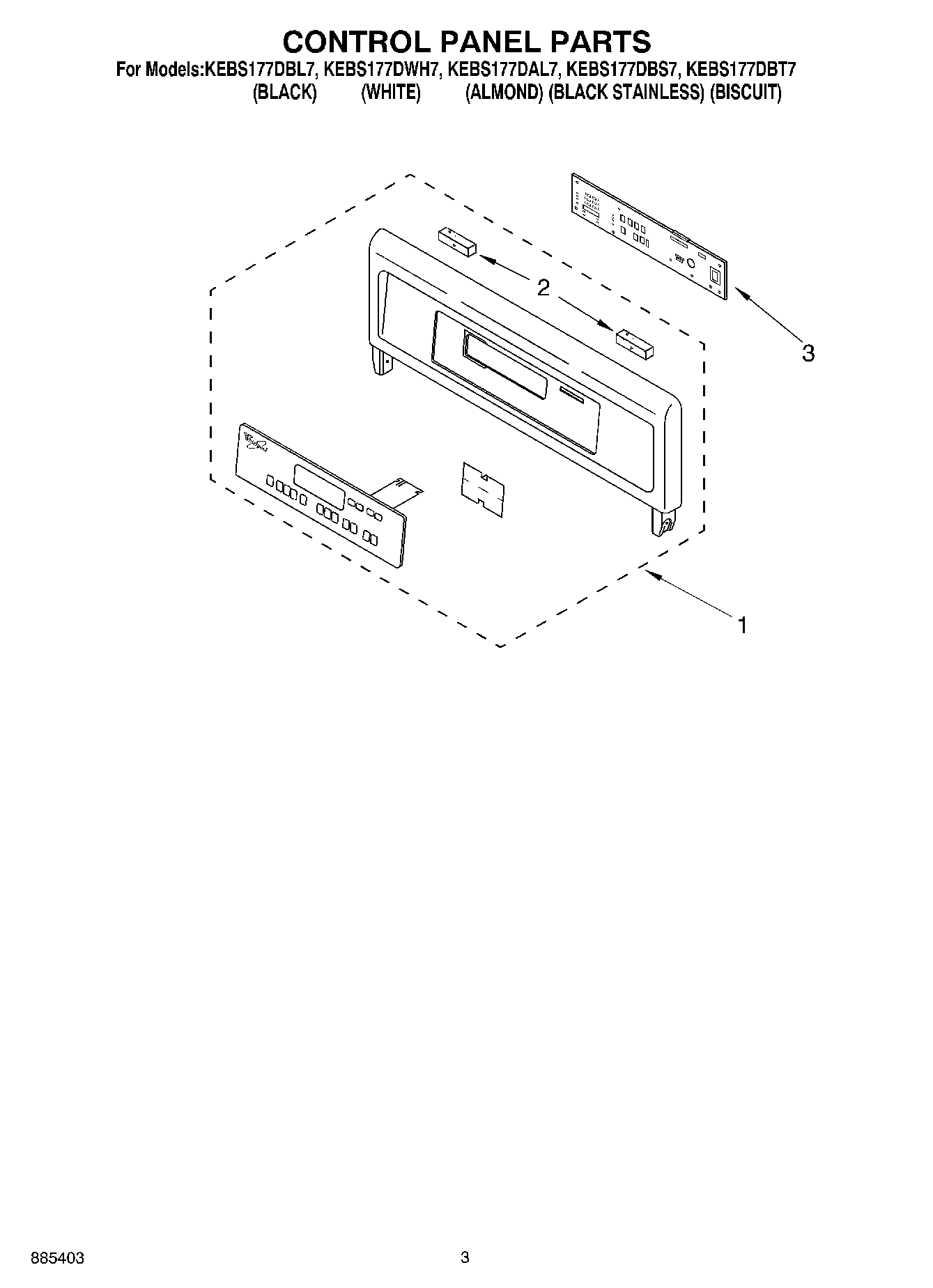

KEBS177DBT7 02 – CONTROL PANEL PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Control Panel Assy. W/Membrane Switch (Biscuit)
1	Control Panel Assy. W/Membrane Switch (Almond)
1	Control Panel Assy. W/Membrane Switch (White)
1	Control Panel Assy. W/Membrane Switch (Black)
2	Gasket, Control Panel
3	LITERATURE PARTS
3	Microcomputer
3	Literature Parts (Tech Sheet)
3	Literature Parts (Installation Instructions)
3	Literature Parts (Easy Set Guide)
3	WP4449745 Whirlpool Screw
3	Use & Care Guide (Oven)
3	Literature Parts (Cookbook (T/C Oven))
3	Safer Cooking Tips
