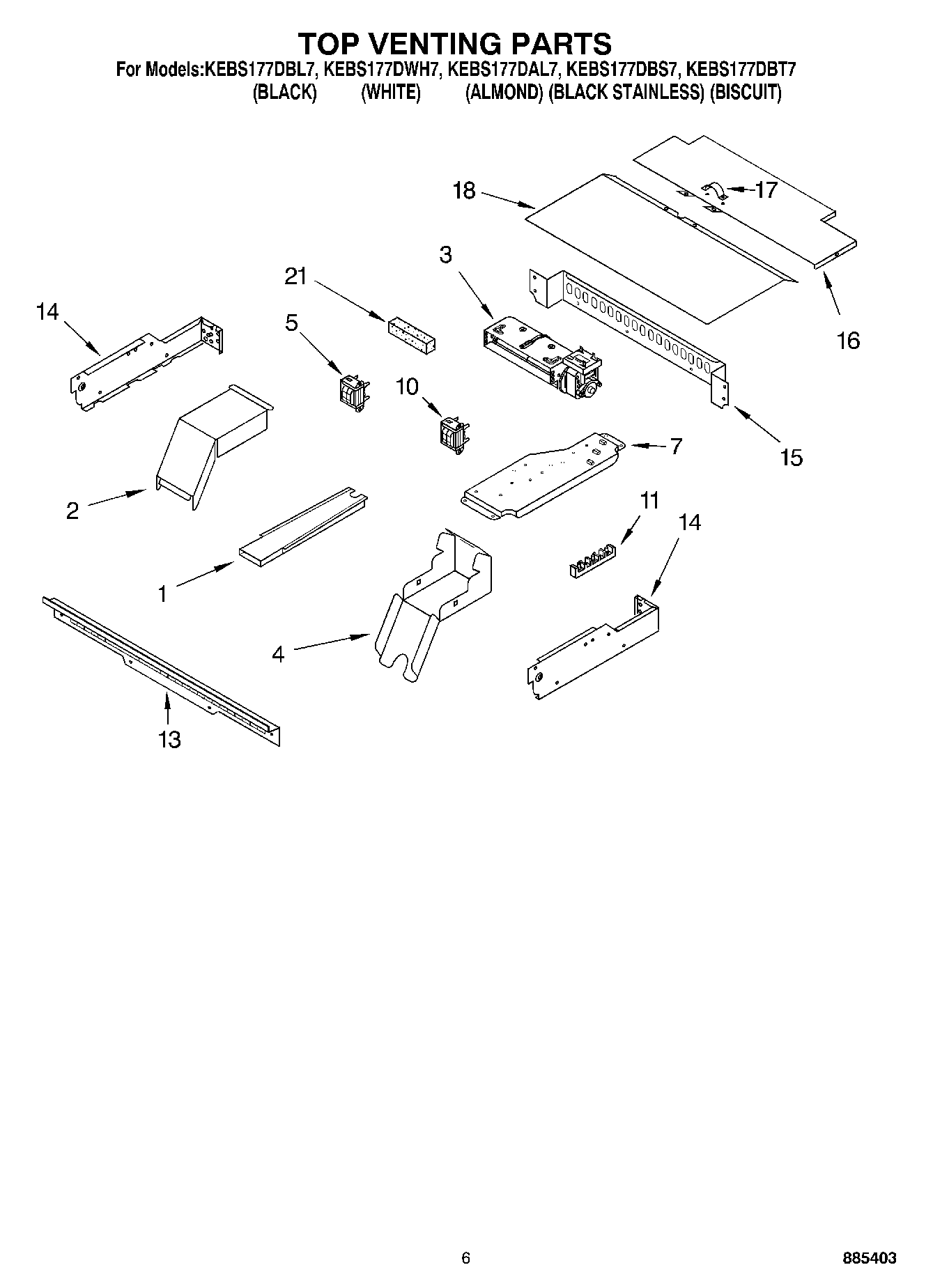

KEBS177DBT7 05 – TOP VENTING PARTS, OPTIONAL PARTS

KEBS177DBT7 05 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

KEBS177DBT7 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI83187A8
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 200 c Brown)
1
WPL 591014
WPL ARI83186A8
WPL ARI83185A4
WPL ARI83184A5
Harness, Wire (Main)
261900 Whirlpool Microwave Spray
WP4450952 Whirlpool Conduit
4451761 Whirlpool Oven Support Bracket
WPL ARI83188A2
242831 Whirlpool Oven Wire
Spacer, Harness
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
WP112432 Whirlpool Nut Assembly
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
Wire, 25“ Roll (White 14 GA.)
4448664 Whirlpool Oven Mounting Bracket
4450800 Whirlpool Oven Screw
WPW10339879 Whirlpool Wire Tie
WP4449809 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
350930 Whirlpool White Spray Paint
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
72017 Whirlpool Appliance Touch-Up Paint White
14451759 Whirlpool Oven Exhaust Vent
1Screw
24455178 Whirlpool Oven Top Elbow
3WPW10016550 Whirlpool Blower Cooling Fan
44455177 Whirlpool Oven Bottom Elbow
5WP9760588 Whirlpool Transformer
7Plate, Mounting
10Transformer, Control
11WP8203546 Whirlpool Terminal Block
11WP3387230 Whirlpool Screw
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
18Cover, Top Front
21W10491987 Whirlpool Foam Seal
