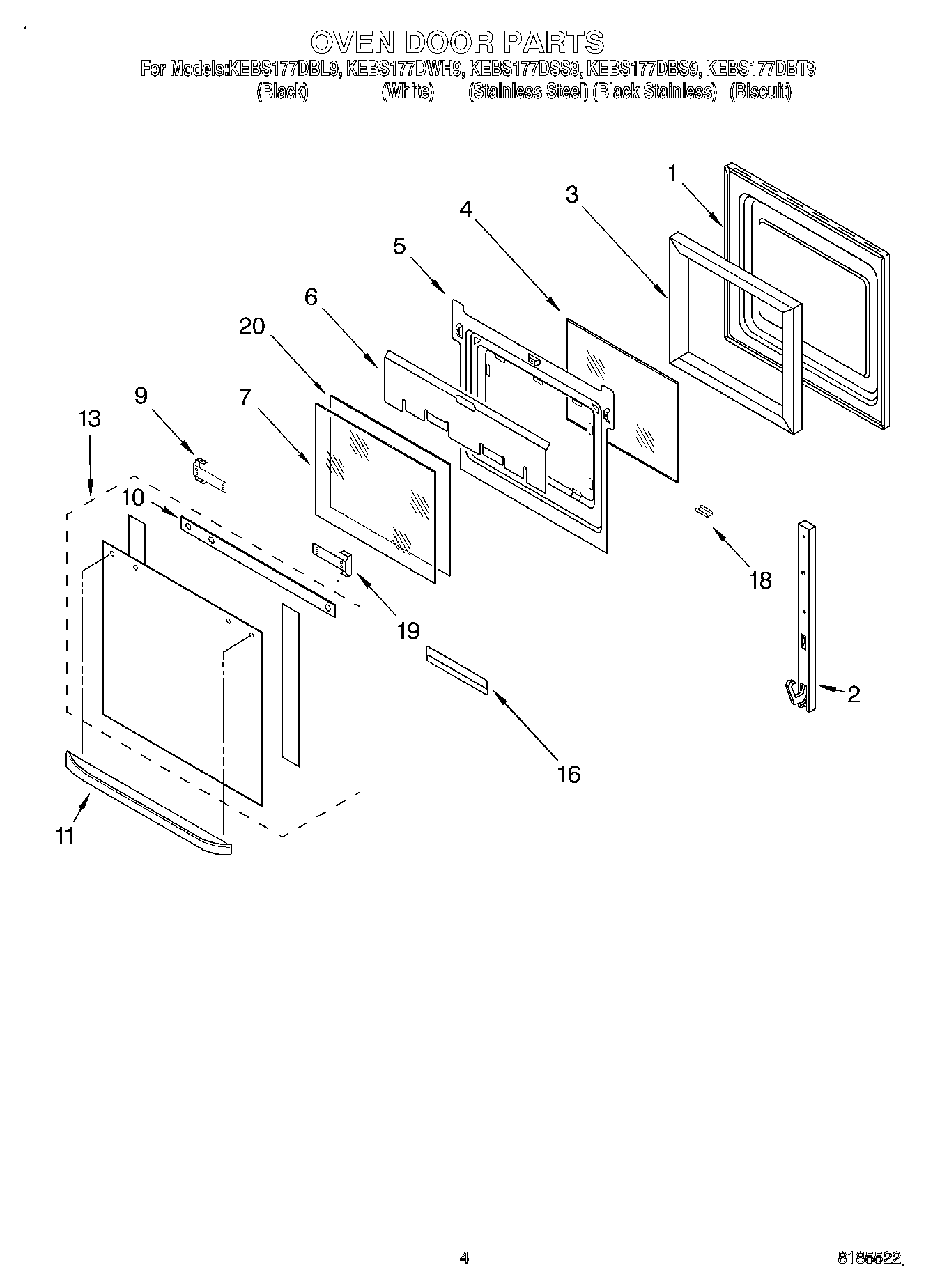

KEBS177DBT9 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4455524 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	Insulation, Sides
4	WP4449253 Whirlpool Glass Window
5	Retainer, Glass
6	Shield, Heat
7	WP4449257 Whirlpool Door Glass
9	Bracket, Handle
9	Screw
10	Seal, Top
11	Door Handle (Biscuit)
11	Door Handle (Stainless Steel)
11	Door Handle (Almond Model)
11	Handle (Black Model)
11	Handle (White Model)
13	Door Glass, Assy (Biscuit)
13	Door Glass, Assy (Almond)
13	Door Glass, Assy (White Model)
13	Door Glass, Assy (Black Model)
13	WP4452315 Whirlpool Door Glass
13	Door Glass, Assy (Black-Stainless)
16	WP4449809 Whirlpool Screw
16	Retainer, Glass
18	RETAINER,GLASS CLIP (BISCUIT)
18	Clip, Retainer (White Model)
18	Clip, Retainer (Black Model)
18	Retainer, Clip (Almond Model)
19	Bracket, Handle Stainless Steel Model (Left Hand)
19	4455803 Whirlpool Oven Bracket
20	Glass, Inner
