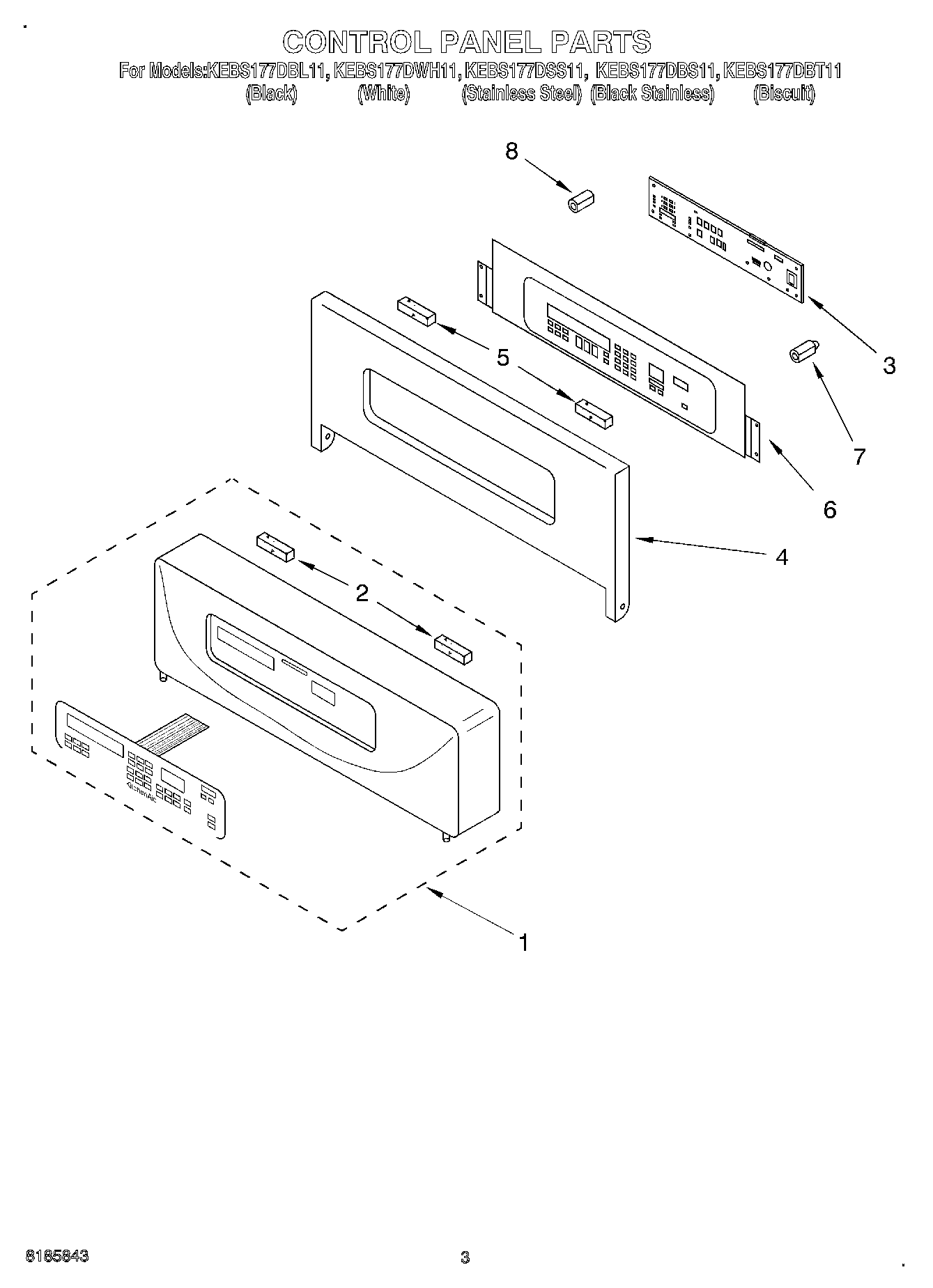

KEBS177DSS11 02 – CONTROL PANEL

KEBS177DSS11 02 – CONTROL PANEL

Written by

in

KEBS177DSS11 02 – CONTROL PANEL

Products

PositionProduct
1Control Panel Assy W/Membrane Switch (Black & BS Model)
1Control Panel Assy W/Membrane Switch (White Model)
1Control Panel Assy W/Membrane Switch (Biscuit Model)
1WP3400832 Whirlpool Screw
2Gasket, Control Panel
3Microcomputer
3WP4449745 Whirlpool Screw
4Panel, Control
5Spacer, Foam
6Switch, Membrane (Stainless Steel)
7Insulation, Board
8Insulation, Board Support
