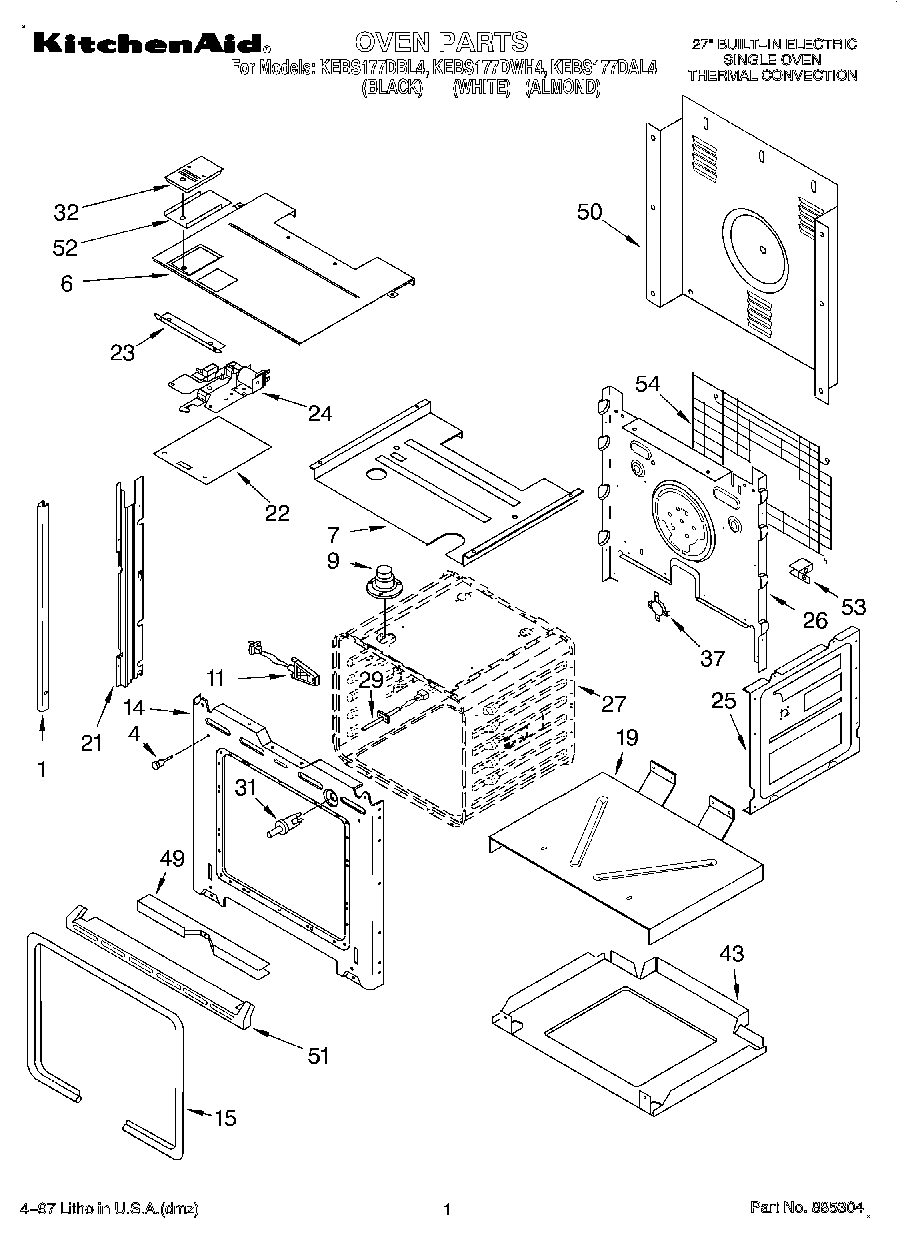

KEBS177DWH4 01 – OVEN

Products

Position	Product
1	Trim, Side (White, Right)
1	Trim, Side (LH White Screw)
1	Trim, Side (LH Black)
1	Trim, Side (Right Hand) (Almond Model)
1	Trim, Side (RH Black)
1	Trim, Side (White)
1	WP8281236 Whirlpool Screw
1	Trim, Side (Left Hand) (Almond)
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Partition
9	Tube, Vent
11	WP4448972 Whirlpool Oven Light
11	4449748 Whirlpool Oven Screw
14	Screw
14	Frame, Front
14	WP4450118 Whirlpool Nut
15	WP4455381 Whirlpool Door Gasket
19	Support, Insulation
21	814371 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
21	814372 Whirlpool Oven Rail Mount
22	Trim, Bottom (Screw)
22	Shield, Latch
23	Deflector, Latch
24	Latch Assy
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
31	Switch, Door
32	Vent Box Assy
37	WP4450934 Whirlpool Thermostat Assembly
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	Cover, Back
51	Screw, (2)
51	Trim, Bottom (Black Model)
51	Trim, Bottom (Almond Model)
51	Trim, Bottom (White Model)
52	Vent Extension
53	WPL 4449845
54	Spacer, Harness
54	WP4449809 Whirlpool Screw
54	WPL 4449315
54	WPL 4450364
