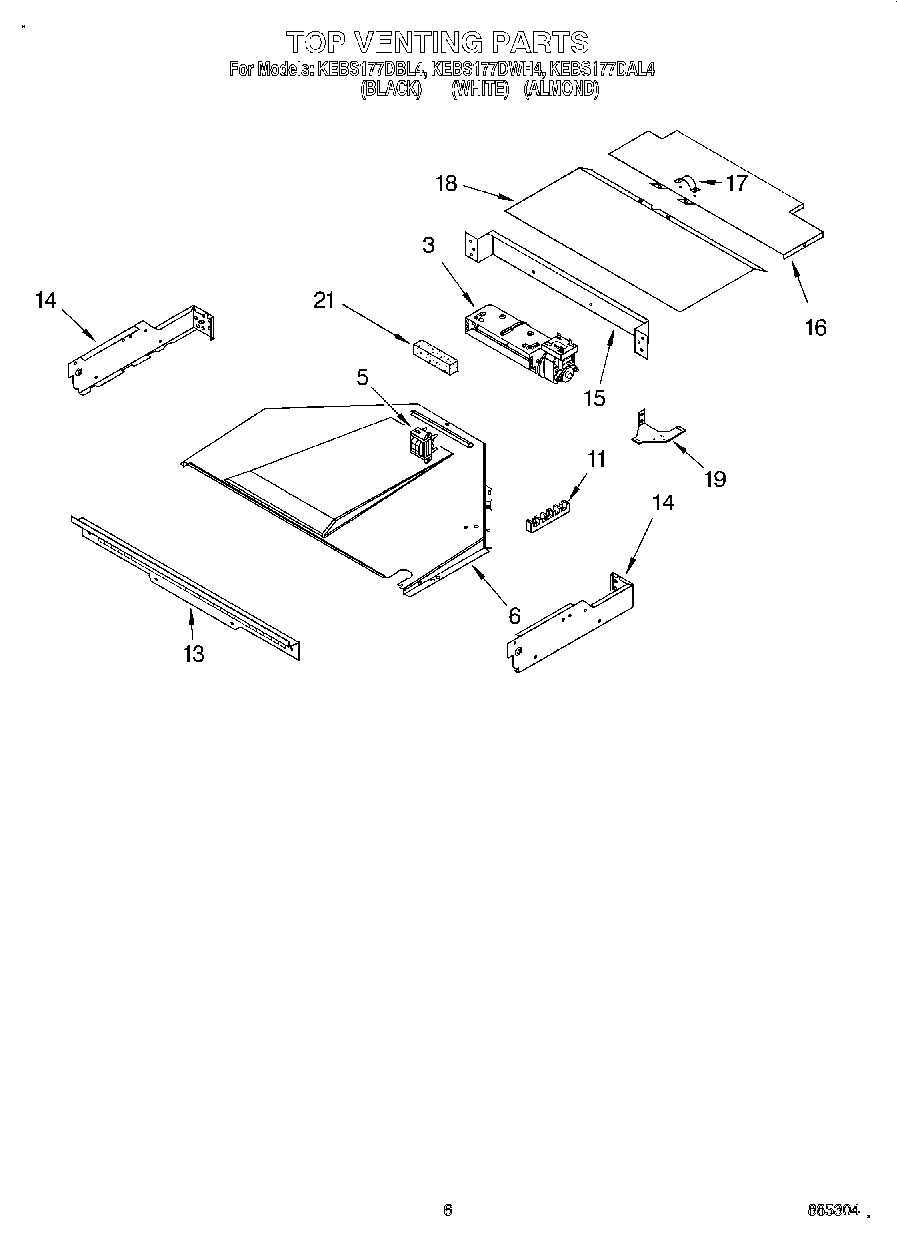

KEBS177DWH4 05 – TOP VENTING, OPTIONAL

KEBS177DWH4 05 – TOP VENTING, OPTIONAL

Written by

in

KEBS177DWH4 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
3Blower
5WP9760588 Whirlpool Transformer
6Exhaust Duct
11WP8203546 Whirlpool Terminal Block
11WP3387230 Whirlpool Screw
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
14WP4449154 Whirlpool Screw
15Back, Control
16Cover, Top Rear
18Cover, Top Front
19Bracket, Blower
21Wire (14 Ga. 150 c Orange)
211
21Wire (14 Ga. 200 c Brown)
21Harness, Wire (Main) (Also, order Door Switch Harness)
21Seal, Foam
21Harness, Wire (Latch)
21Roll Tape, Exhaust Duct
21WPL 591014
21Harness, Wire (Door Switch) (Also, order Main Harness)
21WP4450952 Whirlpool Conduit
21261900 Whirlpool Microwave Spray
2118 Ga. 80~c Rating (Red)
21Wire (12 Ga. 150 c Black)
21Wire (14 Ga. 150 c Yellow)
214450800 Whirlpool Oven Screw
214448664 Whirlpool Oven Mounting Bracket
21Wire, 25“ Roll (White 14 GA.)
21Wire, 25` Roll (Red 14 Ga.)
21WP112432 Whirlpool Nut Assembly
21WP488366 Whirlpool Refrigerator Clamp
21WP4449809 Whirlpool Screw
2172017 Whirlpool Appliance Touch-Up Paint White
21285006 Whirlpool Spray
2172032 Whirlpool Touch Up Paint Black
21WP482338 Whirlpool Refrigerator Adhesive
21Wire, 25` Roll (Black 14 Ga.)
21Wire (14 Ga. 150 c Green)
21Wire (14 Ga. 150 c Brown)
21Wire (14 Ga. 150 c Blue)
21WP261869 Whirlpool Microwave Paint
21242831 Whirlpool Oven Wire
21WP4448950 Whirlpool Screw
21814381 Whirlpool Pin
21350930 Whirlpool White Spray Paint
