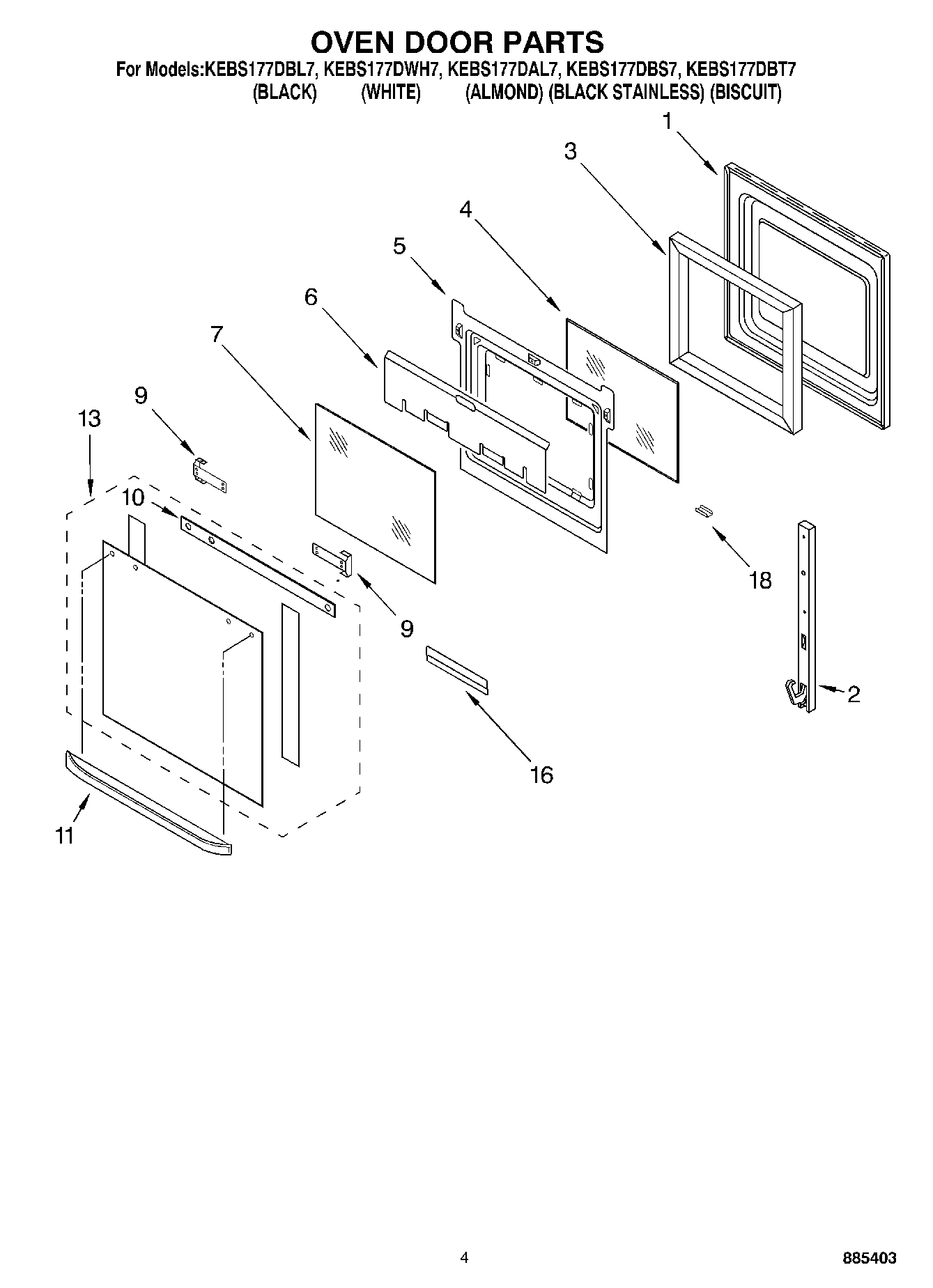

KEBS177DWH7 03 – OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Door Liner
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4455523 Whirlpool Oven Door Hinge
2	WP4449743 Whirlpool Screw
3	Insulation, Sides
4	WP4449253 Whirlpool Glass Window
5	Retainer, Glass
6	Shield, Heat
7	WP4449257 Whirlpool Door Glass
9	Bracket, Handle
9	Screw
10	Seal, Top
11	Door Handle (Biscuit)
11	Door Handle (Almond Model)
11	Handle (Black Model)
11	Handle (White Model)
13	Door Glass, Assy (Black Model)
13	Door Glass, Assy (White Model)
13	Door Glass, Assy (Almond)
13	Door Glass, Assy (Biscuit)
13	Door Glass, Assy (Black-Stainless)
16	WP4449809 Whirlpool Screw
16	Retainer, Glass
18	RETAINER,GLASS CLIP (BISCUIT)
18	Clip, Retainer (White Model)
18	Clip, Retainer (Black Model)
18	Retainer, Clip (Almond Model)
