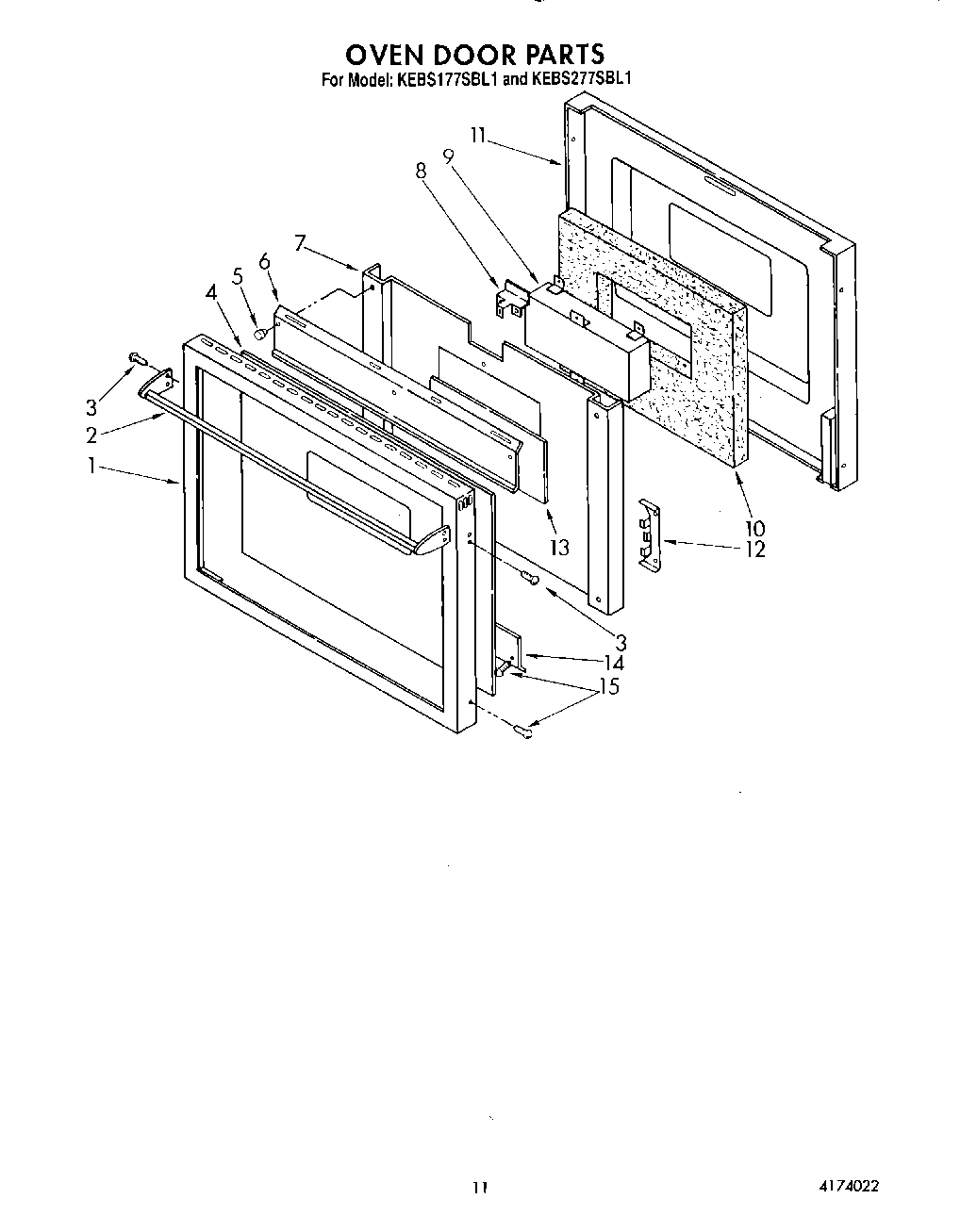

KEBS177SBL0 10 – OVEN DOOR, LIT/OPTIONAL

Products

PositionProduct
1Almond
1White
1Door Frame
2Door Handle (Almond)
2Door Handle (White)
2Door Handle
3Screw, 8-32 X 3/8“ PFHMS
4Glass, Door (White)
4Glass, Door (Almond)
4Door Glass
5Rubber Bumper
6Air Baffle
7Retainer, Insulation
8Bracket, Lock
9Window Package
10Insulation
11Door Liner
12Bracket, Glass Mtg.
13Glass, Reflective
14Air Baffle, Bottom
15List, Repair Parts
15Use & Care Guide
15Installation Instructions
15Vent, Lower Trim (Screw (2))
15Instructions, Installation (Trim Kit)
