KEBS177SBL01 02 – CONTROL PANEL PARTS – Aparts

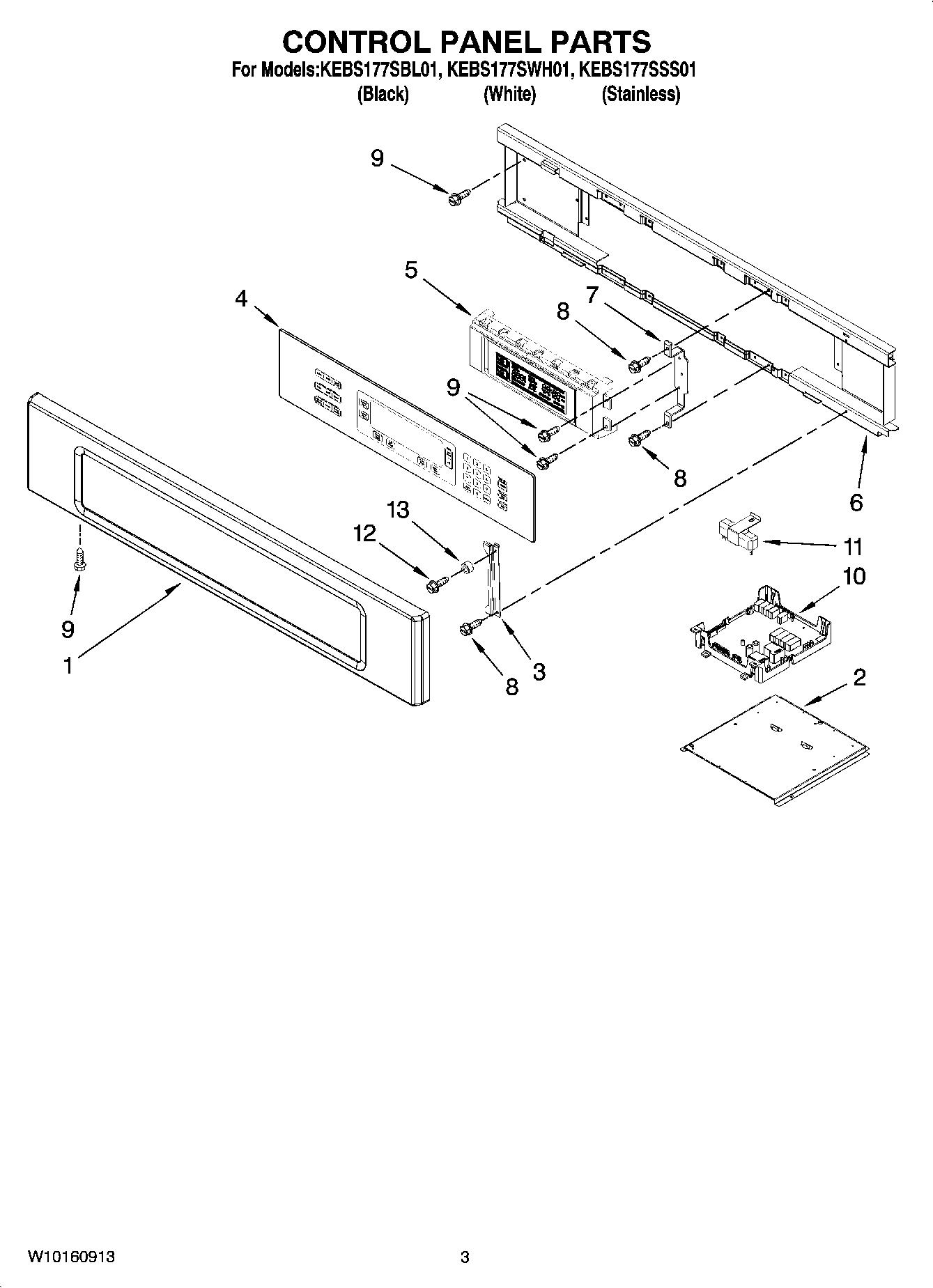

KEBS177SBL01 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control (Stainless)
1	Panel, Control (White)
1	Panel, Control (Black)
2	Support Appliance Manager
3	Bracket, Glass Touch
4	Control Panel, Glass Touch
5	User Interface
6	Backer, Control
7	Bracket,Enclosure
8	WP4449154 Whirlpool Screw
9	WP3400832 Whirlpool Screw
10	Appliance Manager
11	Resistor, Drop
12	WP4449809 Whirlpool Screw
13	W10105790 Whirlpool Bumper
